Pits Atlas: Jackson 1c
| Impact Melt pit: Jackson | |
|---|---|
| Name | Jackson 1c |
| Lat. | 22.4214 |
| Long. | 196.2907 |
| Desc. | Eastern of the Jackson 1 pit chain. Elliptical, with both east and west ends having a smooth slope to the floor (western end, at least, is in self-cast shadow at 45 degree incidence angle!). Center of the pit is a large block of fractured rock, rising to level with surrounding terrain. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Jackson |
| Funnel Min. Diam. | 45 |
| Funnel Max. Diam. | 95 |
| Inner Min. Diam. | 31 |
| Inner Max. Diam. | N/A |
| Azimuth | 60 |
| Depth | 15.0 |
| Depth 1 | 15.3 |
| Depth 2 | 10.7 |
| Depth 3 | 18.2 |
| Best Stereo Left | M105593167L |
| Best Stereo Right | M105593167L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M1122318040R |
| Data Warning | Depth 3 is from top of funnel. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | N |

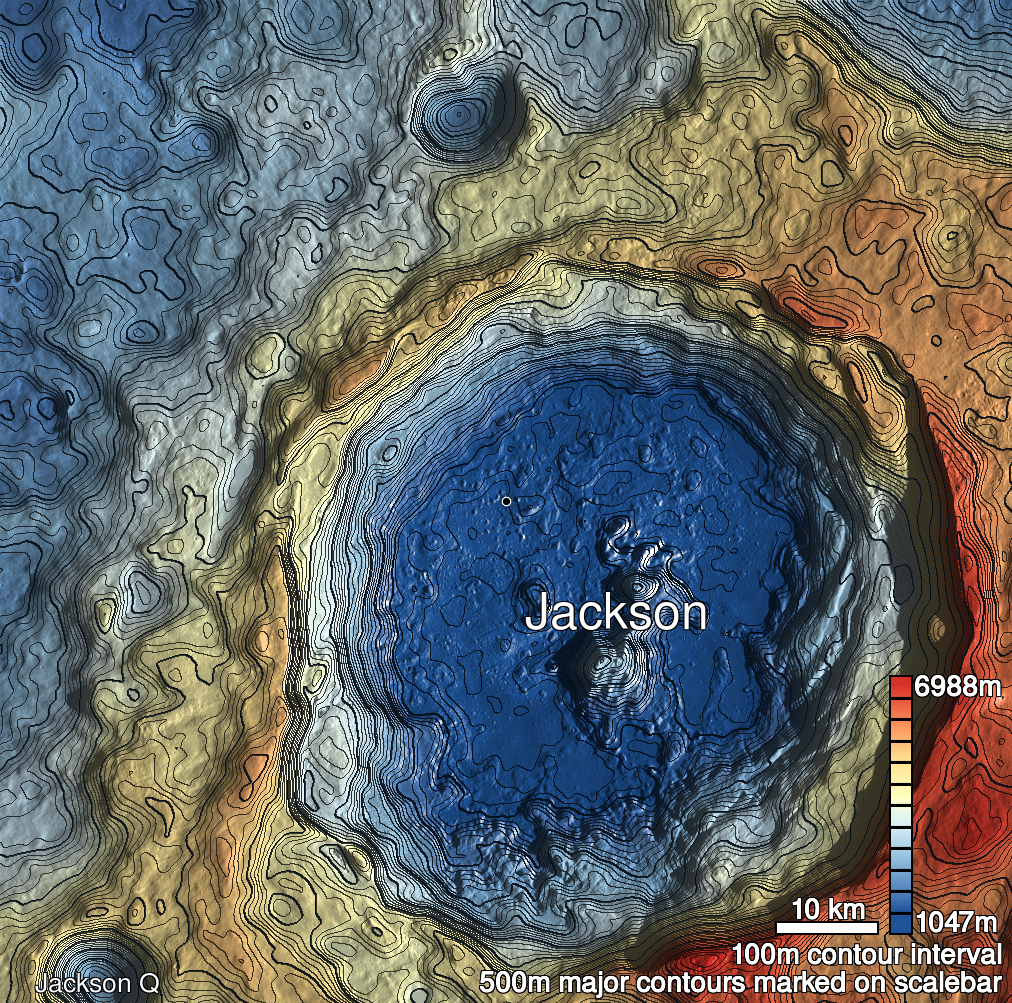

| Jackson 1c Shaded Relief | |
|---|---|
 |

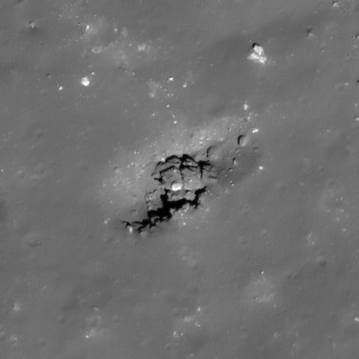

| M125645661L | |
|---|---|
 |
|
| Line | 39443 |
| Sample | 4319 |
| Inc. Angle | 24.5 |
| Emission Angle | -0.64 |
| Time | 11.12 |
| Resolution | 0.53 |
| M1178843656L | |
|---|---|
 |
|
| Inc. Angle | -21.59 |
| Emission Angle | 0.31 |
| Time | 12.21 |
| Resolution | 1.35 |
| M1097558297L | |
|---|---|
 |
|
| Inc. Angle | -59.47 |
| Emission Angle | 2.31 |
| Time | 15.73 |
| Resolution | 1.44 |
| Jackson 1c Stereo |
|---|
 |
