Pits Atlas: North Procellarum 2 Pit
| Mare, Large Bowl pit: Oceanus Procellarum | |
|---|---|
| Name | North Procellarum 2 Pit |
| Lat. | 35.3433 |
| Long. | 314.3447 |
| Desc. | Nearly circular pit with short walls and deep, bowl-shaped, boulder-filled floor. There appears to be a break in the wall on the E side allowing access to the floor. No evidence of overhangs from floor shape, though the floor slope rising up to meet the NE wall may have a slight downturn in the last meter or two, suggesting that that wall may have recently been overhung. North Procellarum 1 is ~2km NNE. |
| Types | Large Bowl |
| Terrain | Mare |
| Host Feature | Oceanus Procellarum |
| Funnel Min. Diam. | 170 |
| Funnel Max. Diam. | 175 |
| Inner Min. Diam. | 155 |
| Inner Max. Diam. | 160 |
| Azimuth | 180 |
| Depth | 43.0 |
| Depth 1 | 44.8 |
| Depth 2 | 39.5 |
| Depth 3 | 43.9 |
| Best Stereo Left | M1206329407L |
| Best Stereo Right | M1206329407L |
| DTMs | NAC_DTM_PRCLRMPIT01 |
| Clipping Width | 400 |
| Other IMGs | |
| Data Warning | Depth measurements may be from partway up the funnel. |
| Entrance Ramp | Y |
| Overhang | N |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

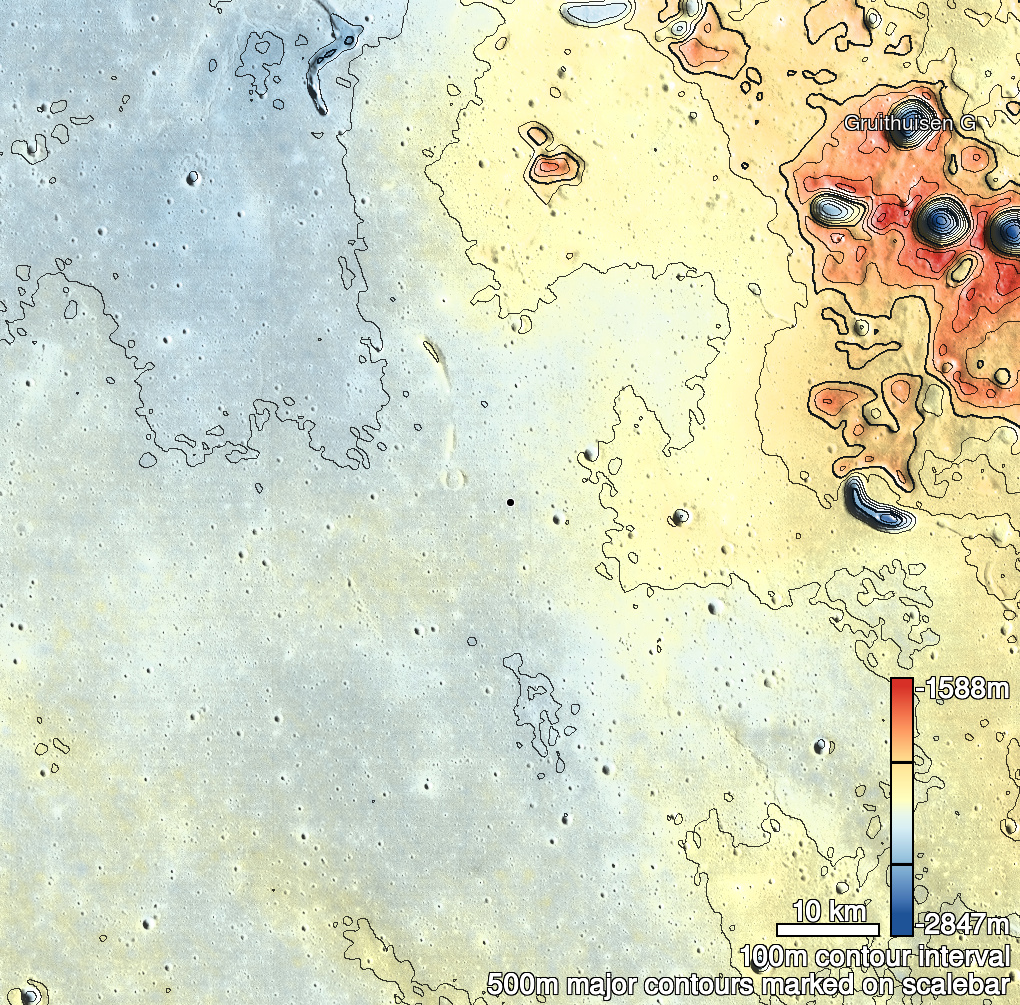

| North Procellarum 2 Pit Shaded Relief | |
|---|---|
 |
| M1274547047R | |
|---|---|
 |
|
| Line | 23044 |
| Sample | 2739 |
| Inc. Angle | 63.03 |
| Emission Angle | 1.32 |
| Time | 8.29 |
| Resolution | 1.06 |
| M1339149465L | |
|---|---|
 |
|
| Inc. Angle | -66.28 |
| Emission Angle | 0.91 |
| Time | 15.94 |
| Resolution | 1.04 |
| M1348546440R | |
|---|---|
 |
|
| Inc. Angle | 60.28 |
| Emission Angle | -0.16 |
| Time | 8.47 |
| Resolution | 1.04 |
| North Procellarum 2 Pit Stereo |
|---|
 |
