Pits Atlas: Jackson 2b
| Impact Melt pit: Jackson | |
|---|---|
| Name | Jackson 2b |
| Lat. | 22.4967 |
| Long. | 196.2814 |
| Desc. | Inner of a pair of concentric pits. Generally rectangular, only a sliver of floor is visible. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Jackson |
| Funnel Min. Diam. | NA |
| Funnel Max. Diam. | NA |
| Inner Min. Diam. | 9 |
| Inner Max. Diam. | 11 |
| Azimuth | 140 |
| Depth | 11.0 |
| Depth 1 | 14.7 |
| Depth 2 | 7.9 |
| Depth 3 | >10.0 |
| Best Stereo Left | M105593167L |
| Best Stereo Right | M105593167L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths 1 and 3 are depth from S rim of Jackson 2a (22.5 m, 19.4 m) minus depth of an adjacent point on Jackson 2a's floor relative to the same rim (7.8 m, 8.3 m) |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y? |
| In Dome | N |
| Beside Dome | N |
| In Depression | N? |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

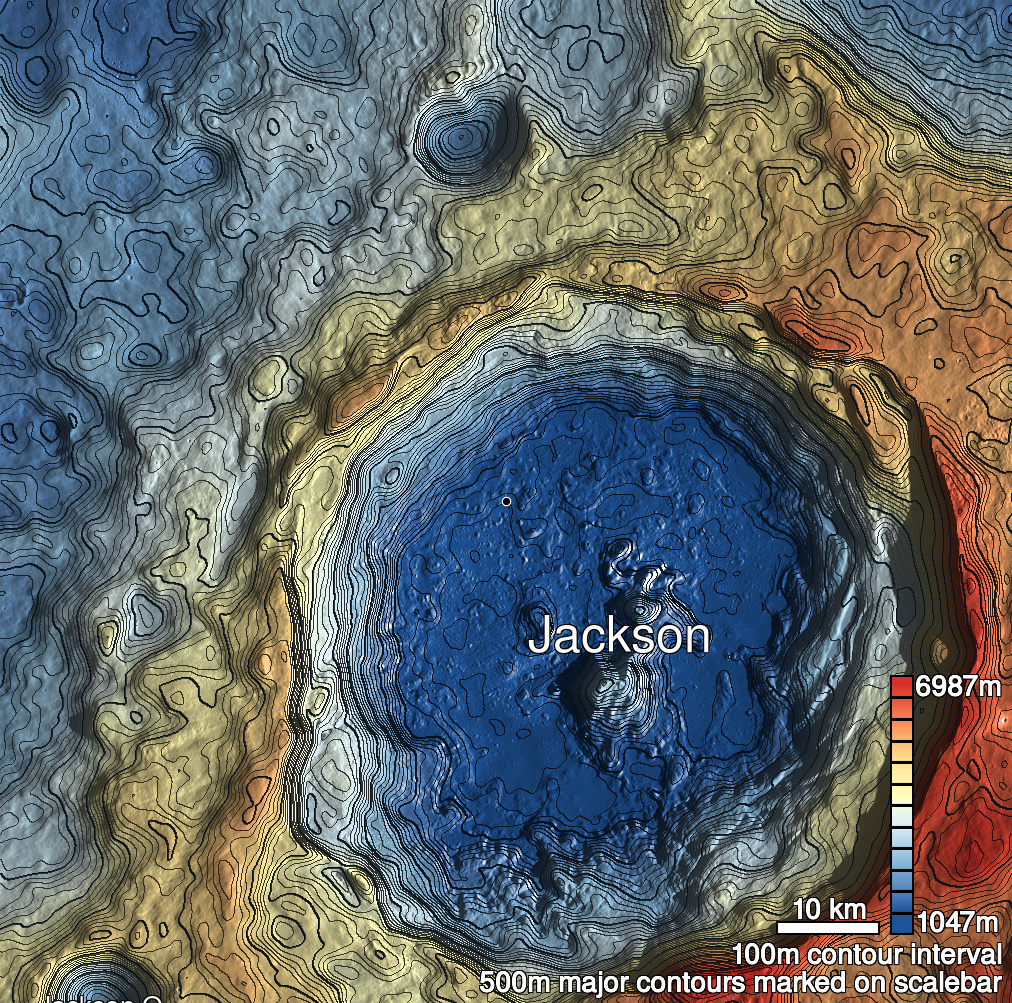

| Jackson 2b Shaded Relief | |
|---|---|
 |

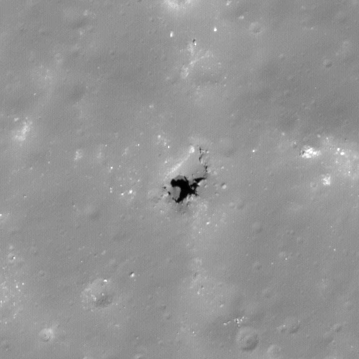

| M125645661L | |
|---|---|
 |
|
| Line | 43345 |
| Sample | 4780 |
| Inc. Angle | 24.57 |
| Emission Angle | -0.38 |
| Time | 11.12 |
| Resolution | 0.53 |
| M1314082002R | |
|---|---|
 |
|
| Inc. Angle | -23.98 |
| Emission Angle | -2.18 |
| Time | 12.34 |
| Resolution | 1.0 |
| M184604792L | |
|---|---|
 |
|
| Inc. Angle | -33.02 |
| Emission Angle | 2.17 |
| Time | 13.75 |
| Resolution | 1.42 |
| Jackson 2b Stereo |
|---|
 |
