Pits Atlas: Jackson 4
| Impact Melt pit: Jackson | |
|---|---|
| Name | Jackson 4 |
| Lat. | 21.7636 |
| Long. | 197.1197 |
| Desc. | Very deep elliptical pit in the south wall of a positive relief feature. The PRF cuts across a fracture that is running E-W, and there is a confirmed ~5m overhang where a wide fracture pit runs under the PRF (eyeballing the available stereo data and measuring shadows in the fracture pit, the PRF is ~10-15m tall, and the fracture pit is ~5-10m below the surrounding terrain). |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Jackson |
| Funnel Min. Diam. | 10 |
| Funnel Max. Diam. | 14 |
| Inner Min. Diam. | 5 |
| Inner Max. Diam. | 9 |
| Azimuth | 85 |
| Depth | 8.0 |
| Depth 1 | 7.3 |
| Depth 2 | 7.6 |
| Depth 3 | 8.9 |
| Best Stereo Left | M1106988580R |
| Best Stereo Right | M1106988580R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 3 is very high Sun, and shadow edges are a bit fuzzy. |
| Entrance Ramp | N |
| Overhang | Y? |
| Nearby Pits? | N |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

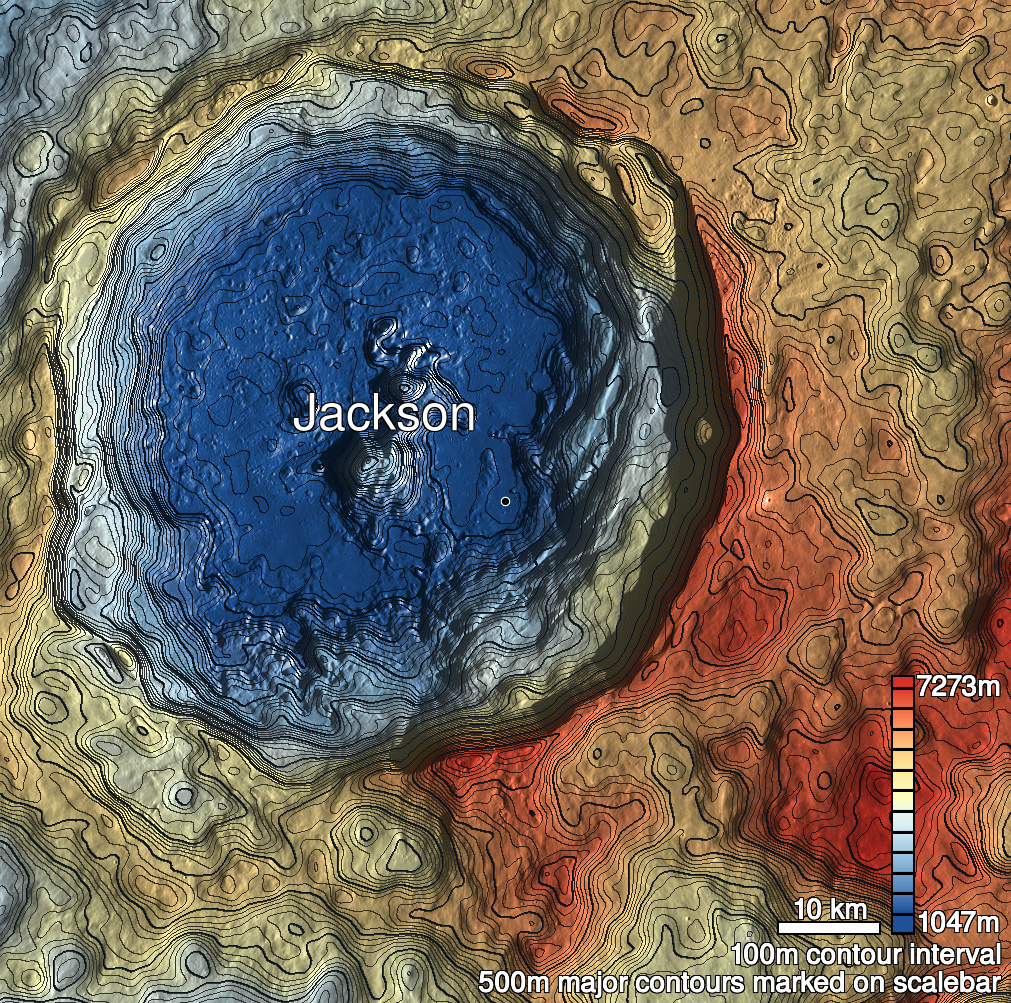

| Jackson 4 Shaded Relief | |
|---|---|
 |
| M110302263L | |
|---|---|
 |
|
| Line | 42822 |
| Sample | 2223 |
| Inc. Angle | 26.77 |
| Emission Angle | -1.9 |
| Time | 11.1 |
| Resolution | 0.59 |
| M1176484245R | |
|---|---|
 |
|
| Inc. Angle | -37.07 |
| Emission Angle | -0.95 |
| Time | 14.12 |
| Resolution | 1.34 |
| M186956552R | |
|---|---|
 |
|
| Inc. Angle | 20.4 |
| Emission Angle | 2.74 |
| Time | 11.9 |
| Resolution | 1.4 |
| Jackson 4 Stereo |
|---|
 |
