Pits Atlas: Jackson 6
| Impact Melt pit: Jackson | |
|---|---|
| Name | Jackson 6 |
| Lat. | 22.4434 |
| Long. | 197.2553 |
| Desc. | Round depression. Resolution is bad in most images, but shadow shape implies a bowl-shaped floor, possibly flat near the S wall (shadow measures disagree: 1 is from by S wall, 2 is from center, 3 is from NW wall). NE wall may be sloped to very near the rim. Floor is much higher albedo than surroundings, and seems to be covered by ~1m rocks. Pit is at north foot of a rise, no other collapse features nearby, but there is a linear round-bottomed depression, ~40m wide, 175m N. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Jackson |
| Funnel Min. Diam. | 16 |
| Funnel Max. Diam. | 18 |
| Inner Min. Diam. | 13 |
| Inner Max. Diam. | 13 |
| Azimuth | 0 |
| Depth | 7.0 |
| Depth 1 | 7.7 |
| Depth 2 | 6.0 |
| Depth 3 | 6.5 |
| Best Stereo Left | M1106988580L |
| Best Stereo Right | M1106988580L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N? |
| Beside Dome | N |
| In Depression | N? |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

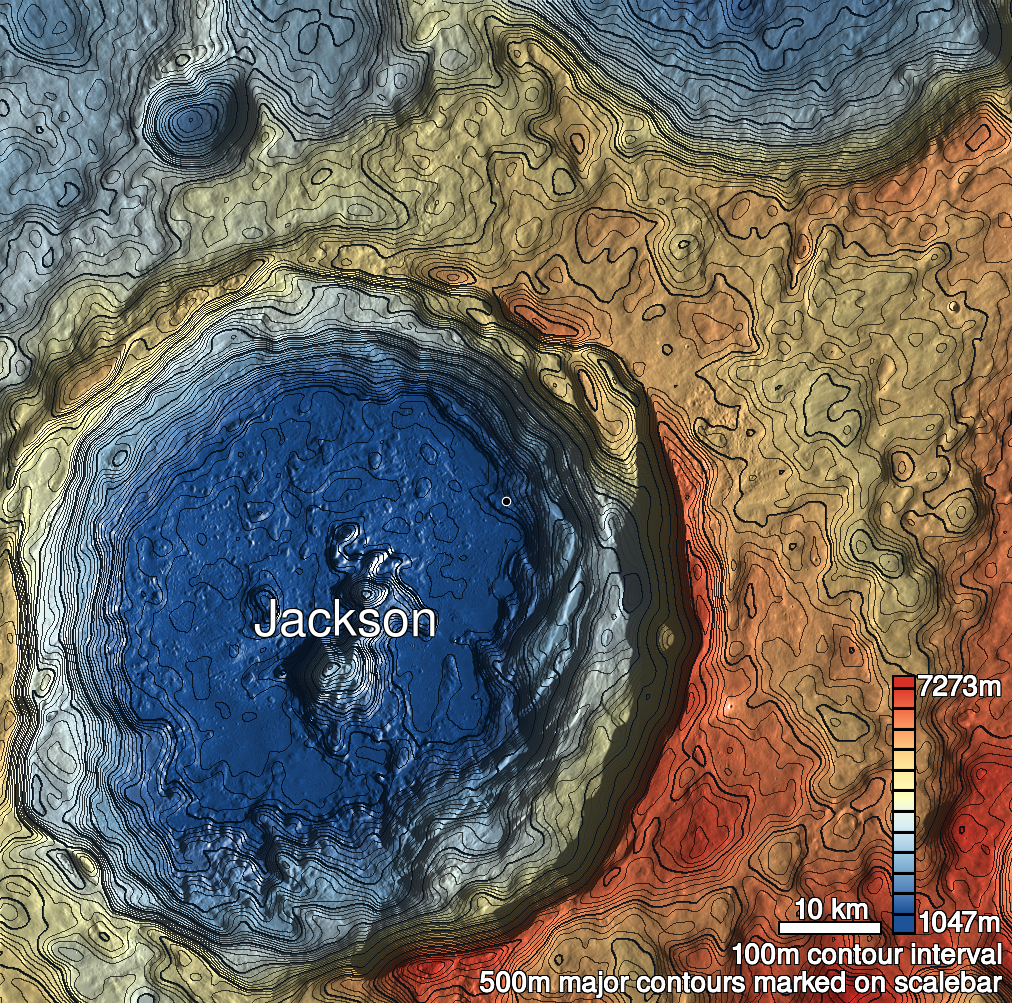

| Jackson 6 Shaded Relief | |
|---|---|
 |
| M171624375R | |
|---|---|
 |
|
| Line | 27614 |
| Sample | 1276 |
| Inc. Angle | 23.92 |
| Emission Angle | -0.43 |
| Time | 11.93 |
| Resolution | 0.59 |
| M105578820L | |
|---|---|
 |
|
| Inc. Angle | -45.19 |
| Emission Angle | 3.15 |
| Time | 14.65 |
| Resolution | 1.5 |
| M176338993L | |
|---|---|
 |
|
| Inc. Angle | 59.46 |
| Emission Angle | -1.88 |
| Time | 8.24 |
| Resolution | 0.43 |
| Jackson 6 Stereo |
|---|
 |
