Pits Atlas: Kepler 3
| Impact Melt pit: Kepler | |
|---|---|
| Name | Kepler 3 |
| Lat. | 8.1636 |
| Long. | 322.0449 |
| Desc. | Elliptical pit, mostly consists of funnel (possibly the funnel to the SE is a 17 m impact crater). There appears to be little funnel on the N and E walls, funnel may or may not reach floor on the SW. Floor is significantly darker than funnel, and is what I will use as a measure of the inner pit. ~175m south of the central peak, no collapses in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Kepler |
| Funnel Min. Diam. | 15 |
| Funnel Max. Diam. | 25 |
| Inner Min. Diam. | 8 |
| Inner Max. Diam. | 14 |
| Azimuth | 145 |
| Depth | 13.0 |
| Depth 1 | 8.1 |
| Depth 2 | 11.7 |
| Depth 3 | 18.1 |
| Best Stereo Left | M166100555R |
| Best Stereo Right | M166100555R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 3 is extremely high sun (10 degree incidence), so the 2 degree emission angle may be significant. Also, resolution is low. Measure is from south wall. |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

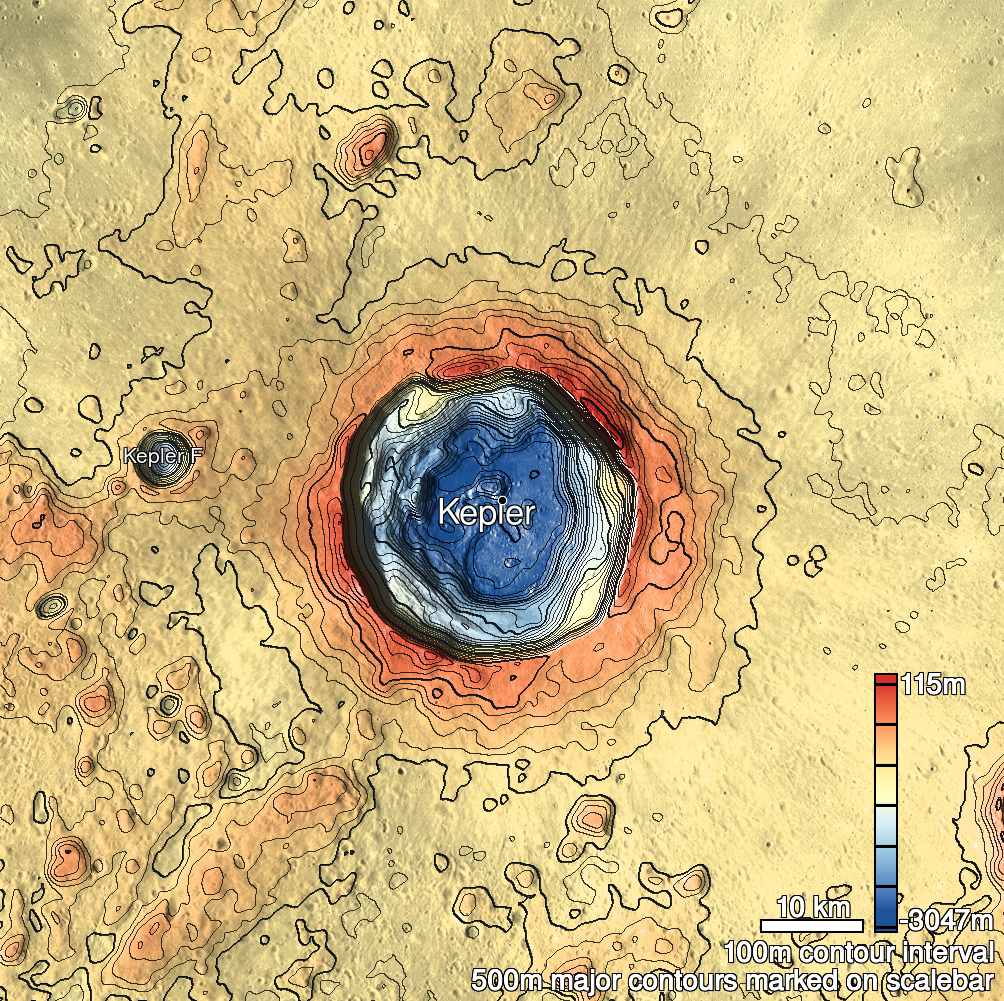

| Kepler 3 Shaded Relief | |
|---|---|
 |
| M111843702R | |
|---|---|
 |
|
| Line | 19492 |
| Sample | 1219 |
| Inc. Angle | 32.63 |
| Emission Angle | 0.4 |
| Time | 9.92 |
| Resolution | 0.49 |
| M188493098L | |
|---|---|
 |
|
| Inc. Angle | 21.0 |
| Emission Angle | -1.25 |
| Time | 10.68 |
| Resolution | 1.23 |
| M186134194L | |
|---|---|
 |
|
| Inc. Angle | -9.93 |
| Emission Angle | 1.89 |
| Time | 12.49 |
| Resolution | 1.24 |
| Kepler 3 Stereo |
|---|
 |
