Pits Atlas: King 4b
| Impact Melt pit: King | |
|---|---|
| Name | King 4b |
| Lat. | 6.2061 |
| Long. | 119.7804 |
| Desc. | Elliptical pit in the side of a PRF. The floor slopes from N wall to the lowest point against the S wall. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 19 |
| Funnel Max. Diam. | 21 |
| Inner Min. Diam. | 14 |
| Inner Max. Diam. | 15 |
| Azimuth | 25 |
| Depth | 8.0 |
| Depth 1 | 10.0 |
| Depth 2 | 6.0 |
| Depth 3 | 7.2 |
| Best Stereo Left | M136762839L |
| Best Stereo Right | M136762839L |
| DTMs | NAC_DTM_KINGCRATER3 |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 1 is extremely high-Sun |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

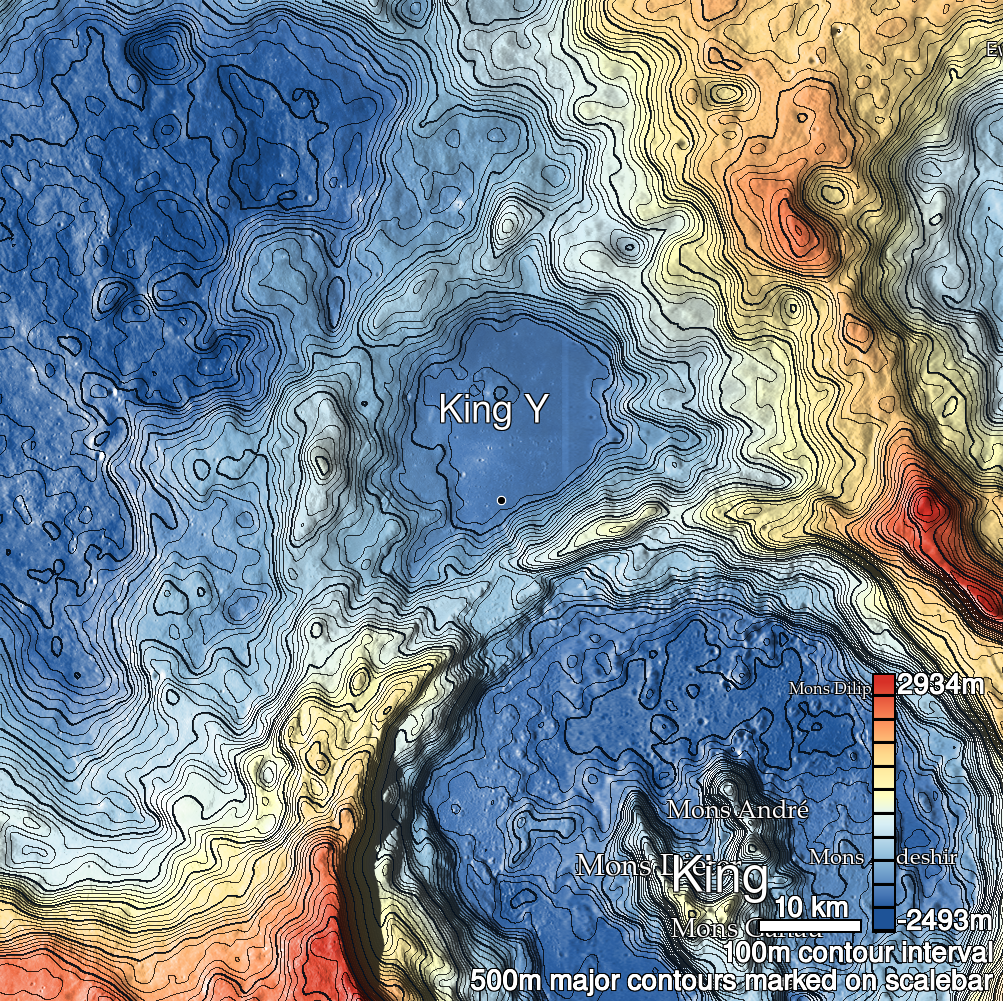

| King 4b Shaded Relief | |
|---|---|
 |
| M141478563R | |
|---|---|
 |
|
| Line | 29558 |
| Sample | 3721 |
| Inc. Angle | 14.08 |
| Emission Angle | 1.86 |
| Time | 11.21 |
| Resolution | 0.61 |
| M113168034R | |
|---|---|
 |
|
| Inc. Angle | 47.43 |
| Emission Angle | -0.18 |
| Time | 8.87 |
| Resolution | 0.62 |
| M1135766659R | |
|---|---|
 |
|
| Inc. Angle | 28.89 |
| Emission Angle | 0.56 |
| Time | 10.13 |
| Resolution | 1.17 |
| King 4b Stereo |
|---|
 |
