Pits Atlas: Mare Insularum Pit
| Mare pit: Mare Insularum | |
|---|---|
| Name | Mare Insularum Pit |
| Lat. | 8.6861 |
| Long. | 330.9665 |
| Desc. | Large, diamond-shaped, mostly-filled-in pit. Largest extant wall is on the SE side. Floor is bowl-shaped (except possibly by the S wall) and filled with 1-3m scale boulders. There is a set of kipukas of highland material to the E, with the closest mound starting ~600m away. There's an unusual feature (looks like a slightly raised section of mare with floor-fractured crater style fractures) ~9km NW. |
| Types | |
| Terrain | Mare |
| Host Feature | Mare Insularum |
| Funnel Min. Diam. | 255 |
| Funnel Max. Diam. | 315 |
| Inner Min. Diam. | 159 |
| Inner Max. Diam. | N/A |
| Azimuth | 65 |
| Depth | 63.0 |
| Depth 1 | 62.8 |
| Depth 2 | >17.0 |
| Depth 3 | >27.0 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 400 |
| Other IMGs | |
| Data Warning | Inner max depth is end-to-end length of SE wall. Depth 1 is from protrusion on SE wall, not rim. Depth 2 is from same protrusion to edge of floor, depth 3 is NW rim to edge of floor. |
| Entrance Ramp | Y |
| Overhang | N |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

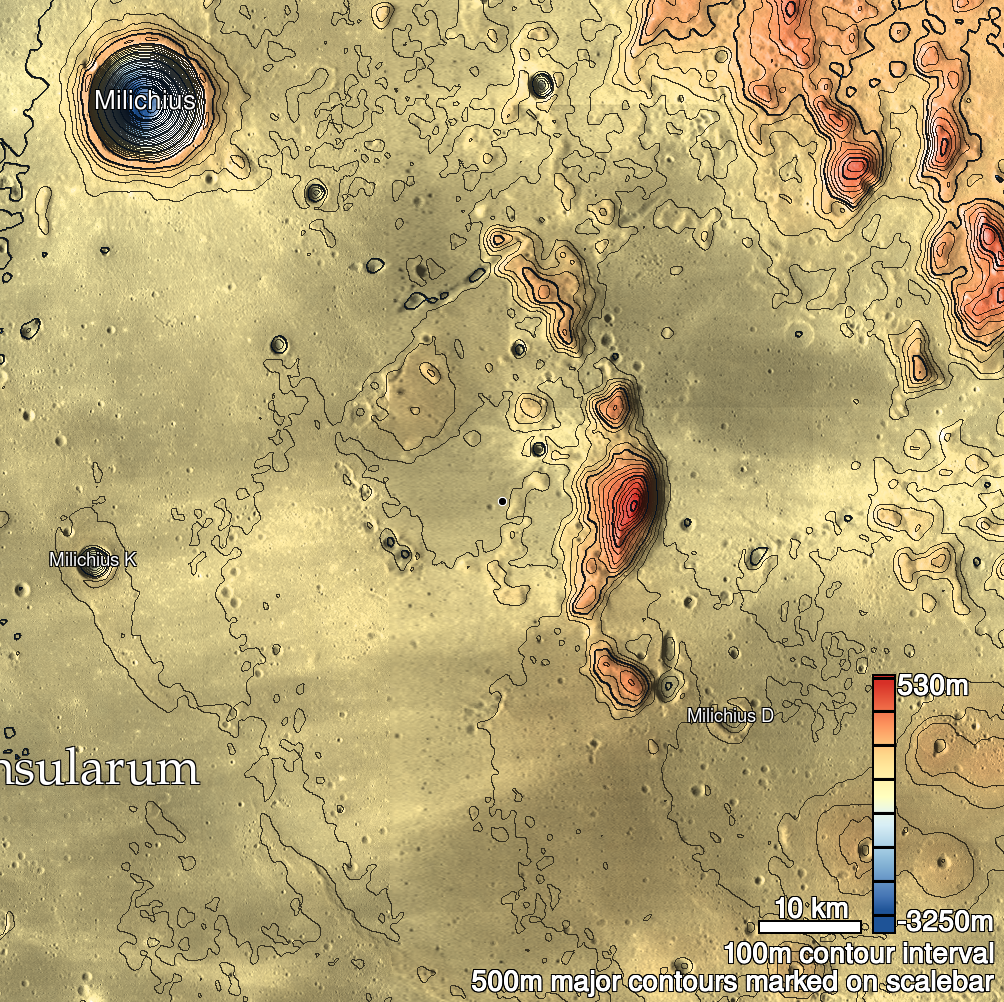

| Mare Insularum Pit Shaded Relief | |
|---|---|
 |
| M1304991525R | |
|---|---|
 |
|
| Line | 27215 |
| Sample | 2727 |
| Inc. Angle | 63.51 |
| Emission Angle | 1.32 |
| Time | 7.8 |
| Resolution | 1.09 |
| M1197963230L | |
|---|---|
 |
|
| Inc. Angle | 41.96 |
| Emission Angle | -2.48 |
| Time | 9.25 |
| Resolution | 0.92 |
| M1310860415R | |
|---|---|
 |
|
| Inc. Angle | -45.36 |
| Emission Angle | -1.02 |
| Time | 14.96 |
| Resolution | 0.71 |
