Pits Atlas: King 8b
| Impact Melt pit: King | |
|---|---|
| Name | King 8b |
| Lat. | 6.4365 |
| Long. | 119.8335 |
| Desc. | Small irregular pit 15m SE of King 8a. Extremely deep- floor is only visible in highest-Sun images. Sun direction and shadow shape in M108447638L suggest that a protrusion on the NW rim is an overhang, as sunlight appears to pass under it. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 8 |
| Funnel Max. Diam. | 8 |
| Inner Min. Diam. | 6 |
| Inner Max. Diam. | 6 |
| Azimuth | 5 |
| Depth | 17.0 |
| Depth 1 | 15.1 |
| Depth 2 | 18.7 |
| Depth 3 | 17.5 |
| Best Stereo Left | M123791947R |
| Best Stereo Right | M123791947R |
| DTMs | NAC_DTM_KINGCRATER3 |
| Clipping Width | 200 |
| Other IMGs | M154453455R |
| Data Warning | All depths are from very high Sun |
| Entrance Ramp | N |
| Overhang | Y? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N? |
| Colinear Depressions | N |
| Colinear Fractures | N |

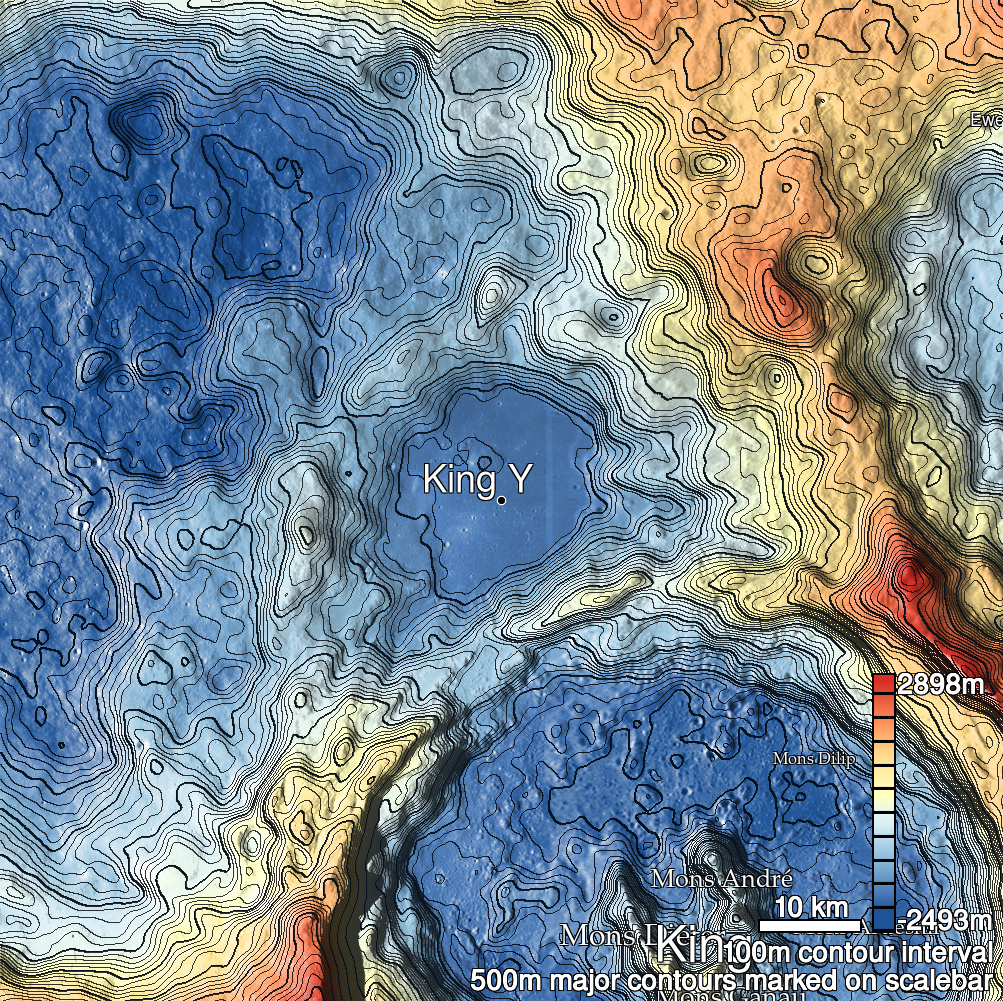

| King 8b Shaded Relief | |
|---|---|
 |

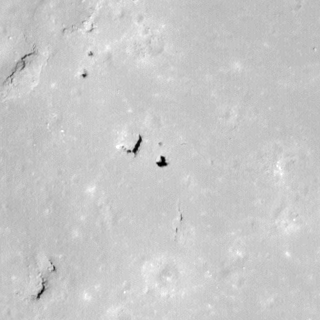

| M141478563R | |
|---|---|
 |
|
| Line | 18613 |
| Sample | 996 |
| Inc. Angle | 14.16 |
| Emission Angle | 0.26 |
| Time | 11.22 |
| Resolution | 0.61 |
| M1164027461R | |
|---|---|
 |
|
| Inc. Angle | 7.59 |
| Emission Angle | 2.28 |
| Time | 11.94 |
| Resolution | 1.17 |

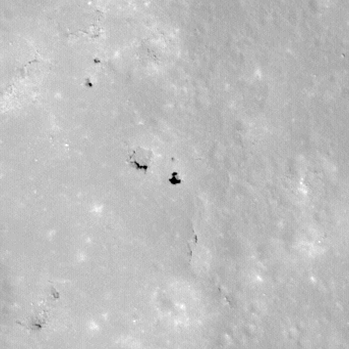

| M108447638L | |
|---|---|
 |
|
| Inc. Angle | -10.99 |
| Emission Angle | 1.55 |
| Time | 12.51 |
| Resolution | 0.56 |

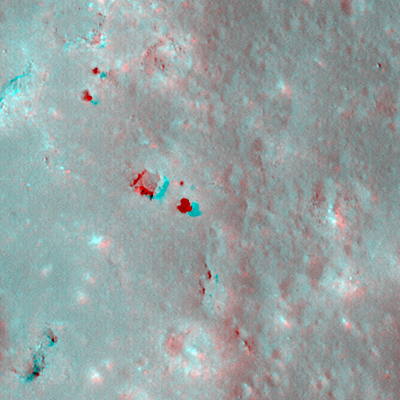

| King 8b Stereo |
|---|
 |
