Pits Atlas: King 9a
| Impact Melt pit: King | |
|---|---|
| Name | King 9a |
| Lat. | 6.2281 |
| Long. | 119.5237 |
| Desc. | Long, narrow pit ~75m N of a large (90m-wide) "ripple" in the melt sheet. King 9b is ~60m E. S end of floor may be higher than N end, and has ramp to surface at S end. There are a pair of small dark spots, probably pits/collapses just S of the S end of the pit. No other collapse features in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 15 |
| Funnel Max. Diam. | 41 |
| Inner Min. Diam. | 11 |
| Inner Max. Diam. | 22 |
| Azimuth | 150 |
| Depth | 4.0 |
| Depth 1 | 3.9 |
| Depth 2 | 4.0 |
| Depth 3 | 4.0 |
| Best Stereo Left | M134408351R |
| Best Stereo Right | M134408351R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y? |
| In Dome | Y? |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

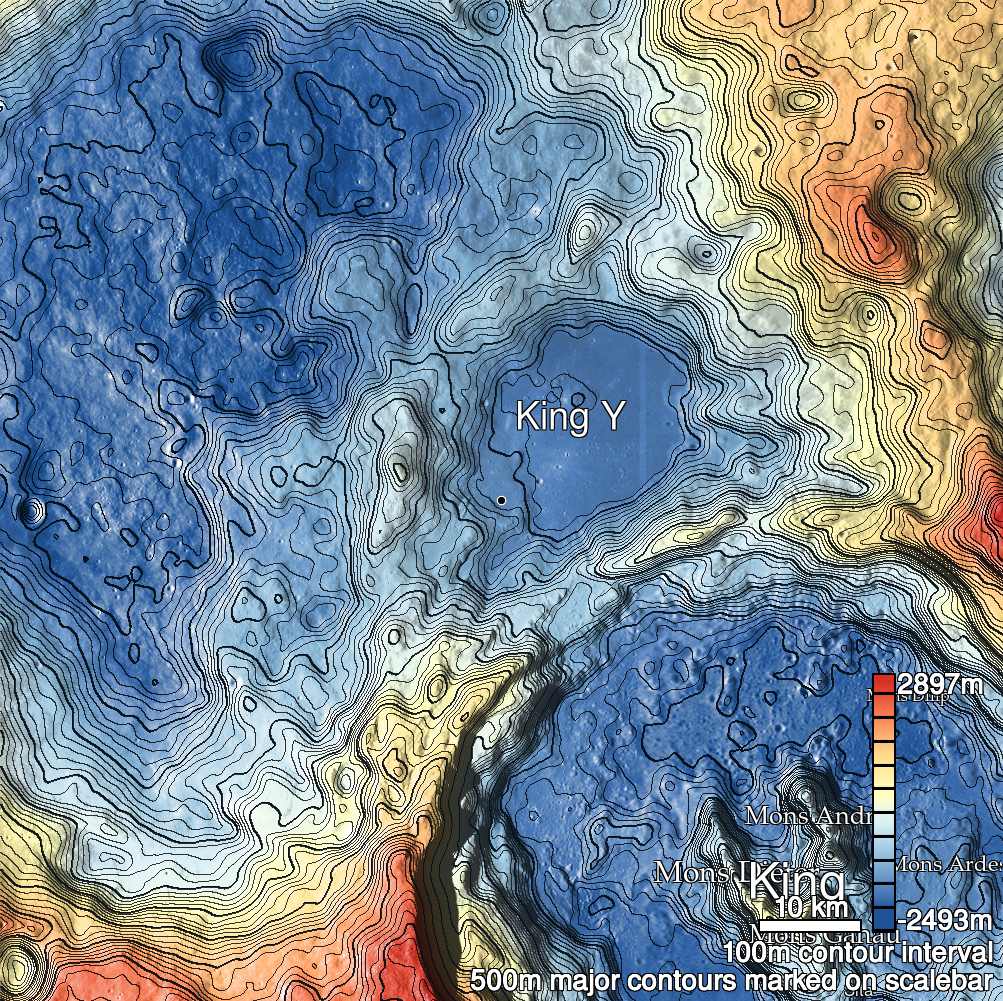

| King 9a Shaded Relief | |
|---|---|
 |
| M1098065892L | |
|---|---|
 |
|
| Line | 24624 |
| Sample | 4656 |
| Inc. Angle | -51.57 |
| Emission Angle | 0.44 |
| Time | 15.41 |
| Resolution | 1.22 |
| M1115747668R | |
|---|---|
 |
|
| Inc. Angle | -24.27 |
| Emission Angle | -0.07 |
| Time | 13.59 |
| Resolution | 1.2 |
| M1153439131R | |
|---|---|
 |
|
| Inc. Angle | 58.72 |
| Emission Angle | 1.71 |
| Time | 8.1 |
| Resolution | 1.28 |

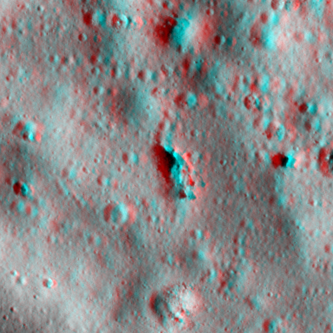

| King 9a Stereo |
|---|
 |
