Pits Atlas: King 11b
| Impact Melt pit: King | |
|---|---|
| Name | King 11b |
| Lat. | 6.4604 |
| Long. | 120.0023 |
| Desc. | Rectangular pit. N/NE wall is a slope to the S end- if connected to King 11a, it's a perfect entrance ramp. No visible boulders on floor. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 14 |
| Funnel Max. Diam. | 15 |
| Inner Min. Diam. | 7 |
| Inner Max. Diam. | 12 |
| Azimuth | 55 |
| Depth | 4.0 |
| Depth 1 | 3.7 |
| Depth 2 | 3.5 |
| Depth 3 | 5.6 |
| Best Stereo Left | M128509025L |
| Best Stereo Right | M128509025L |
| DTMs | NAC_DTM_KINGCRATER2 |
| Clipping Width | 200 |
| Other IMGs | M128509025R, U3_0988_M1120456952R |
| Data Warning | |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y? |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

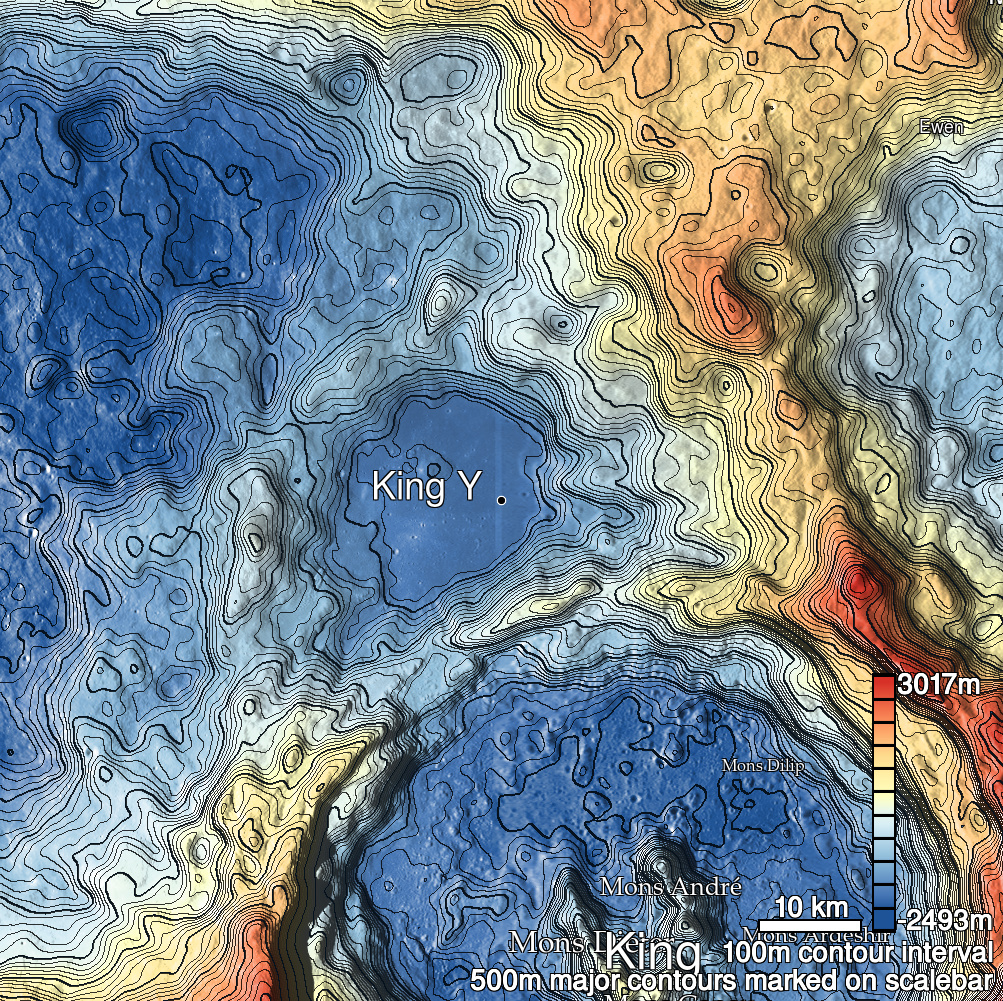

| King 11b Shaded Relief | |
|---|---|
 |
| M1138120053R | |
|---|---|
 |
|
| Line | 16967 |
| Sample | 4430 |
| Inc. Angle | 56.36 |
| Emission Angle | 2.36 |
| Time | 8.26 |
| Resolution | 1.18 |
| M182745931R | |
|---|---|
 |
|
| Inc. Angle | -48.51 |
| Emission Angle | -1.31 |
| Time | 15.23 |
| Resolution | 1.27 |
| M1120456952R | |
|---|---|
 |
|
| Inc. Angle | 32.24 |
| Emission Angle | 0.95 |
| Time | 9.88 |
| Resolution | 1.17 |
| King 11b Stereo |
|---|
 |
