Pits Atlas: King 14
| Impact Melt pit: King | |
|---|---|
| Name | King 14 |
| Lat. | 6.2784 |
| Long. | 119.7635 |
| Desc. | Diamond-shaped pit in a set of N-S trending fractures and sets of tiny pits joined by depressions. This pit is in the easternmost linear feature of the set, one of the aforementioned set-of-tiny-pits-joined-by-depressions, and has a ~30m-wide depression at the S end. Smooth floor with only a few >50cm rocks (possibly sloping down towards the center slightly?), no entrance ramps, although there are ~20m boulders at the N and S ends. Definite few-meter overhang under the W rim (M143832493L). No collapse features in the area other than the fracture/pit chains. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 49 |
| Funnel Max. Diam. | 94 |
| Inner Min. Diam. | 38 |
| Inner Max. Diam. | 48 |
| Azimuth | 20 |
| Depth | 14.0 |
| Depth 1 | 12.3 |
| Depth 2 | 15.0 |
| Depth 3 | 16.0 |
| Best Stereo Left | M143839277L |
| Best Stereo Right | M143839277L |
| DTMs | NAC_DTM_KINGCRATER3 |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | Y |
| Nearby Pits? | Y? |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | Y? |
| Colinear Pits | Y |
| Colinear Depressions | Y |
| Colinear Fractures | Y |

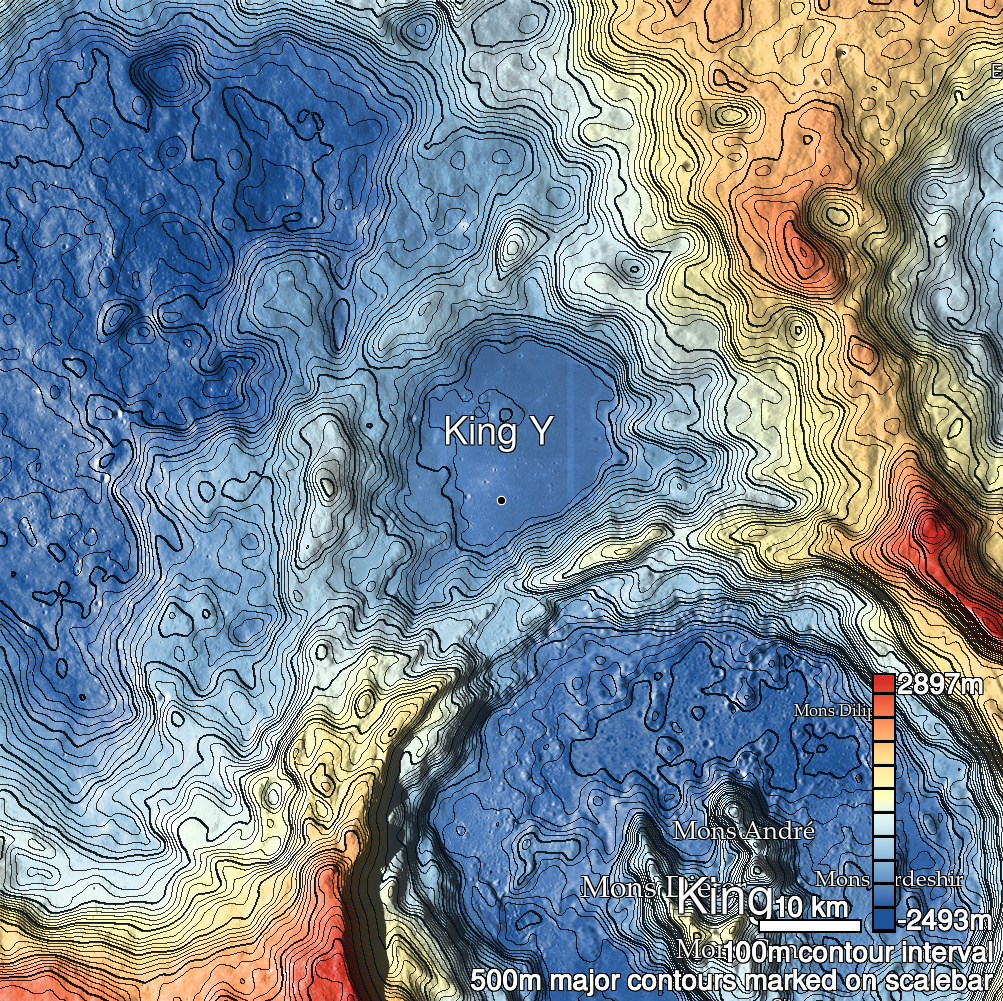

| King 14 Shaded Relief | |
|---|---|
 |
| M113168034R | |
|---|---|
 |
|
| Line | 32261 |
| Sample | 1108 |
| Inc. Angle | 47.46 |
| Emission Angle | 0.33 |
| Time | 8.87 |
| Resolution | 0.62 |
| M106088433L | |
|---|---|
 |
|
| Inc. Angle | -35.11 |
| Emission Angle | 1.15 |
| Time | 14.29 |
| Resolution | 1.29 |
| M182745931L | |
|---|---|
 |
|
| Inc. Angle | -48.26 |
| Emission Angle | 2.11 |
| Time | 15.21 |
| Resolution | 1.27 |
| King 14 Stereo |
|---|
 |
