Pits Atlas: King 16
| Impact Melt, Fracture pit: King | |
|---|---|
| Name | King 16 |
| Lat. | 6.3643 |
| Long. | 119.9304 |
| Desc. | Elliptical pit at the N end of a ~200m long fracture/depression. There is a small (~6m diameter) much shallower pit ~115m SW along the fracture. The floor is flat, with a scattering of 1-5m boulders. The E and W walls appear to be solid down to the floor, with the SE wall having two ledges on the way down. There is a bit of shadowing at the base of the W wall that hints at a down-slope towards the wall. King 38 is ~200m NW, roughly in line with the fracture SE of this pit. |
| Types | Fracture |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 42 |
| Funnel Max. Diam. | 57 |
| Inner Min. Diam. | 29 |
| Inner Max. Diam. | 47 |
| Azimuth | 160 |
| Depth | 16.0 |
| Depth 1 | 18.9 |
| Depth 2 | 15.1 |
| Depth 3 | 14.1 |
| Best Stereo Left | M128509025R |
| Best Stereo Right | M128509025R |
| DTMs | NAC_DTM_KINGCRATER2 |
| Clipping Width | 200 |
| Other IMGs | M141478563L, M108447638R |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | N? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | Y |
| Colinear Fractures | Y |

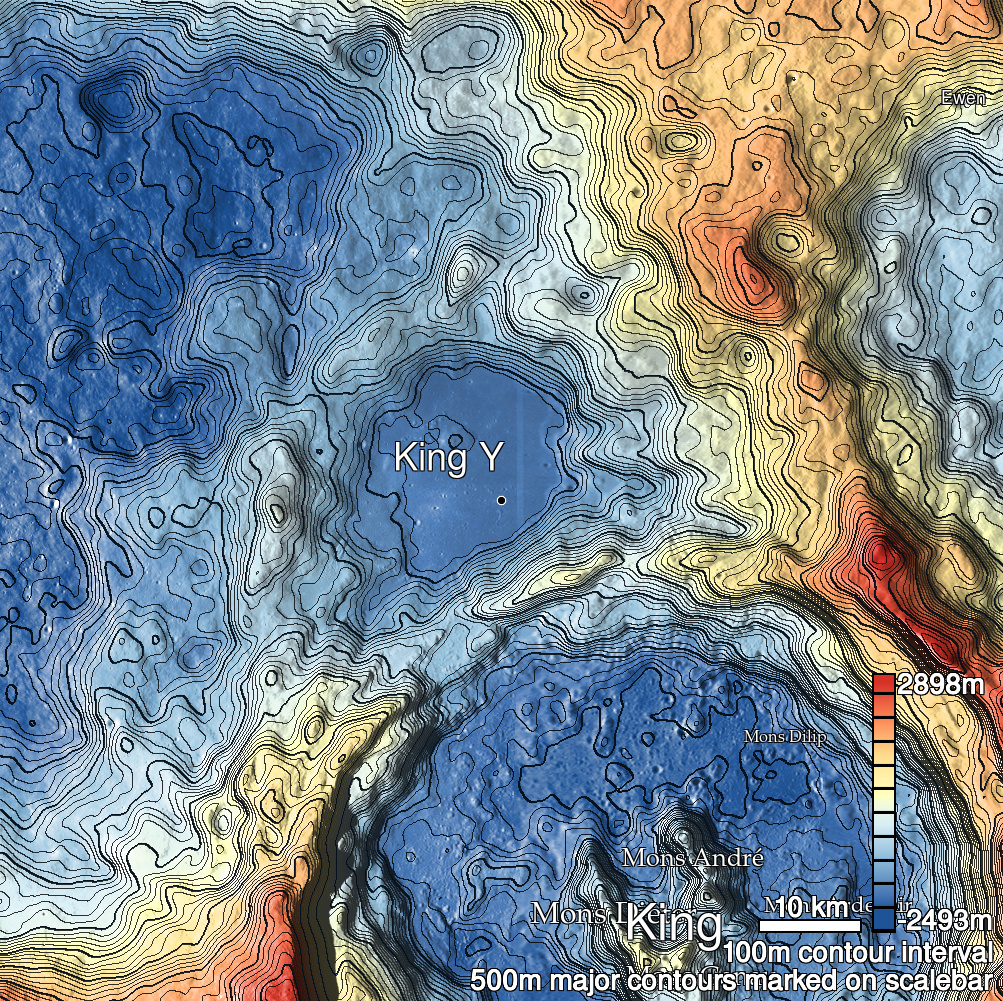

| King 16 Shaded Relief | |
|---|---|
 |
| M182745931R | |
|---|---|
 |
|
| Line | 22557 |
| Sample | 1032 |
| Inc. Angle | -48.43 |
| Emission Angle | -0.3 |
| Time | 15.22 |
| Resolution | 1.27 |
| M1120456952R | |
|---|---|
 |
|
| Inc. Angle | 32.29 |
| Emission Angle | 2.02 |
| Time | 9.88 |
| Resolution | 1.17 |
| M106088433R | |
|---|---|
 |
|
| Inc. Angle | -35.29 |
| Emission Angle | -1.25 |
| Time | 14.31 |
| Resolution | 1.29 |

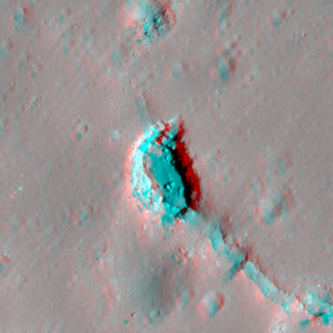

| King 16 Stereo |
|---|
 |
