Pits Atlas: King 18
| Impact Melt pit: King | |
|---|---|
| Name | King 18 |
| Lat. | 6.6235 |
| Long. | 119.9894 |
| Desc. | Round/rectangular pit on the SW side of a very subtle (~2-3m?) ~70m-wide rise; N and E walls are significantly taller than S. The floor appears to slope up towards the S rim, and may form a traversable ramp. A fracture/linear depression starts ~20m S and runs ~130m SSE. King 17 is ~140m WNW, and there are several other <5m pit/collapse-looking features in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 18 |
| Funnel Max. Diam. | 19 |
| Inner Min. Diam. | 12 |
| Inner Max. Diam. | 14 |
| Azimuth | 160 |
| Depth | 7.0 |
| Depth 1 | 9.5 |
| Depth 2 | 7.5 |
| Depth 3 | 4.9 |
| Best Stereo Left | M128509025R |
| Best Stereo Right | M128509025R |
| DTMs | NAC_DTM_KINGCRATER2 |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths 2 and 3 are from W wall, Depth 1 is from E. |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y? |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | Y |

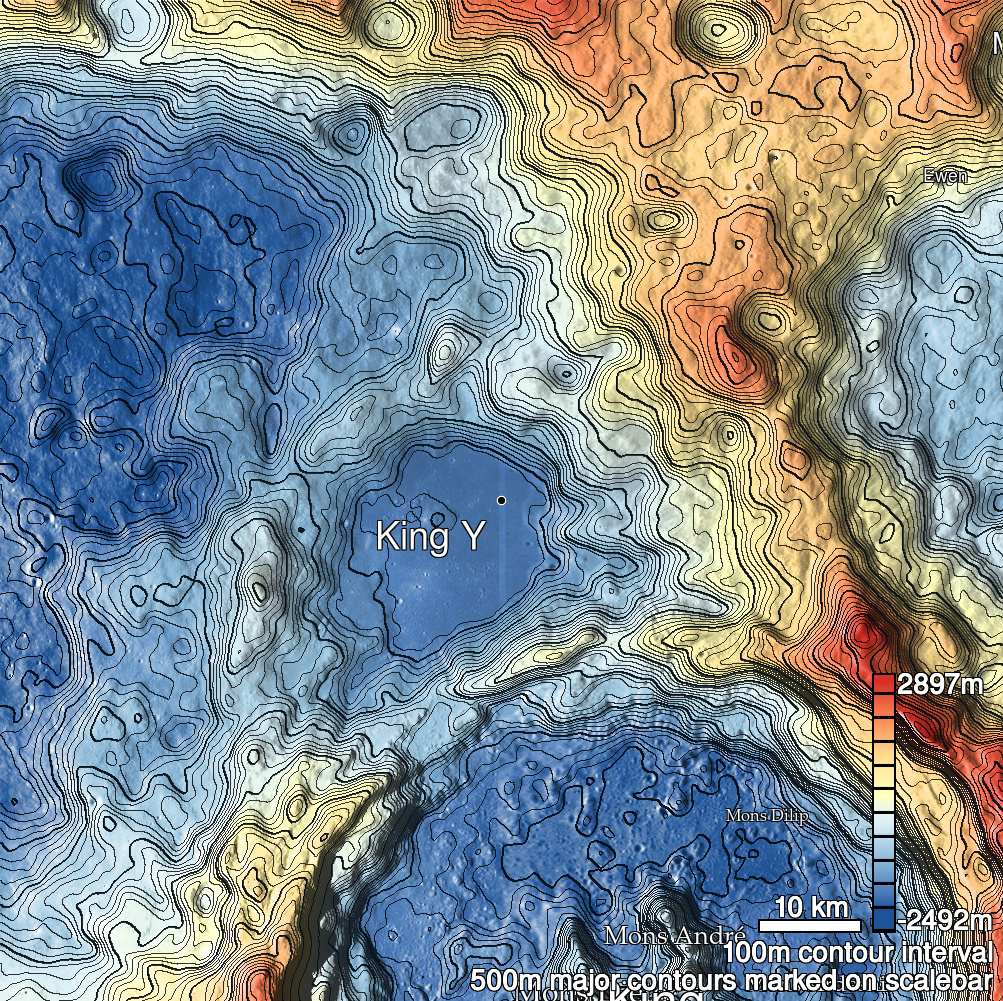

| King 18 Shaded Relief | |
|---|---|
 |
| M1120456952R | |
|---|---|
 |
|
| Line | 36488 |
| Sample | 2580 |
| Inc. Angle | 32.27 |
| Emission Angle | 1.24 |
| Time | 9.88 |
| Resolution | 1.17 |
| M106088433R | |
|---|---|
 |
|
| Inc. Angle | -35.4 |
| Emission Angle | -2.09 |
| Time | 14.31 |
| Resolution | 1.29 |
| M182745931R | |
|---|---|
 |
|
| Inc. Angle | -48.51 |
| Emission Angle | -1.06 |
| Time | 15.22 |
| Resolution | 1.27 |
| King 18 Stereo |
|---|
 |
