Pits Atlas: King 22
| Impact Melt pit: King | |
|---|---|
| Name | King 22 |
| Lat. | 6.4835 |
| Long. | 119.9941 |
| Desc. | Teardrop-shaped pit between two sets of fractures/fracture-associated pits (~40m N and ~180m S). There are two small (~5m) depressions running W from the W end of this pit to the S corner of a triangular fracture-associated pit in the northern fracture, hinting at a connection. The floor is mostly flat, apparently sloping up in the western third, but does not quite reach the rim. No obvious PRFs, but there may be an extremely subtle (~3m high, ~50m wide) rise immediately to the E. King 40 is ~180m SE. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 24 |
| Funnel Max. Diam. | 34 |
| Inner Min. Diam. | 18 |
| Inner Max. Diam. | 25 |
| Azimuth | 110 |
| Depth | 5.0 |
| Depth 1 | 6.6 |
| Depth 2 | 3.5 |
| Depth 3 | 6.0 |
| Best Stereo Left | M128509025R |
| Best Stereo Right | M128509025R |
| DTMs | NAC_DTM_KINGCRATER2 |
| Clipping Width | 200 |
| Other IMGs | M182745931R |
| Data Warning | Depth 2 is from lower E rim. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y? |
| Beside Dome | Y? |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

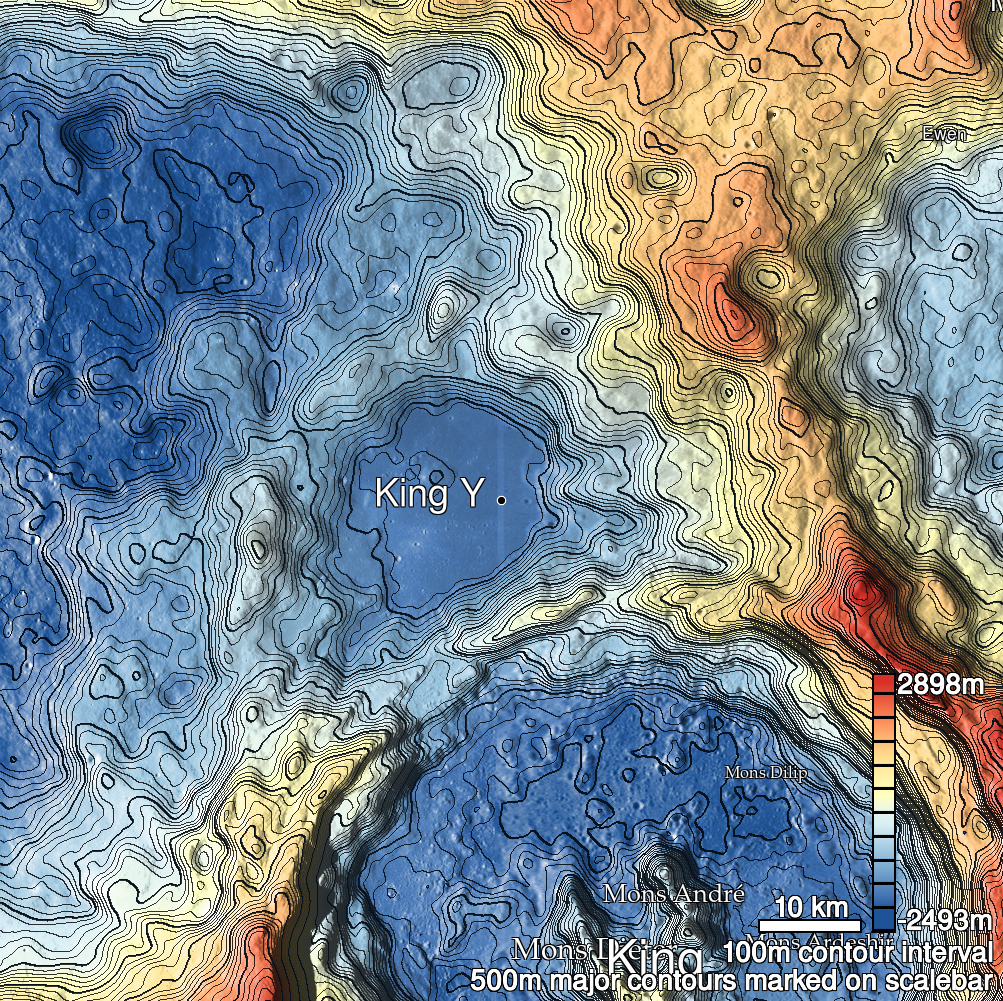

| King 22 Shaded Relief | |
|---|---|
 |
| M1138120053R | |
|---|---|
 |
|
| Line | 16373 |
| Sample | 4621 |
| Inc. Angle | 56.37 |
| Emission Angle | 2.48 |
| Time | 8.26 |
| Resolution | 1.18 |
| M180387064L | |
|---|---|
 |
|
| Inc. Angle | -76.37 |
| Emission Angle | 1.68 |
| Time | 17.09 |
| Resolution | 1.28 |
| M1120456952R | |
|---|---|
 |
|
| Inc. Angle | 32.25 |
| Emission Angle | 1.09 |
| Time | 9.88 |
| Resolution | 1.17 |
| King 22 Stereo |
|---|
 |
