Pits Atlas: King 34a
| Impact Melt pit: King | |
|---|---|
| Name | King 34a |
| Lat. | 6.3372 |
| Long. | 119.9975 |
| Desc. | Elliptical pit at the far SE end of the PRF that contains King 24. King 34b is 15m S. SE side is a ramp from surface to floor. NE half of floor is filled with 1-2m boulders, but remainder of floor is clear. Hints of a possible overhang on the NW side (under the PRF). King 24c is ~175m WNW, King 30 is ~125m SW, and King 42 is ~290m ESE. There are a few other collapse features and <5m pits in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 26 |
| Funnel Max. Diam. | 37 |
| Inner Min. Diam. | 12 |
| Inner Max. Diam. | 34 |
| Azimuth | 55 |
| Depth | 7.0 |
| Depth 1 | 6.7 |
| Depth 2 | 8.0 |
| Depth 3 | 5.6 |
| Best Stereo Left | M128509025R |
| Best Stereo Right | M128509025R |
| DTMs | NAC_DTM_KINGCRATER2 |
| Clipping Width | 200 |
| Other IMGs | M1120456952R |
| Data Warning | |
| Entrance Ramp | Y |
| Overhang | Y? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

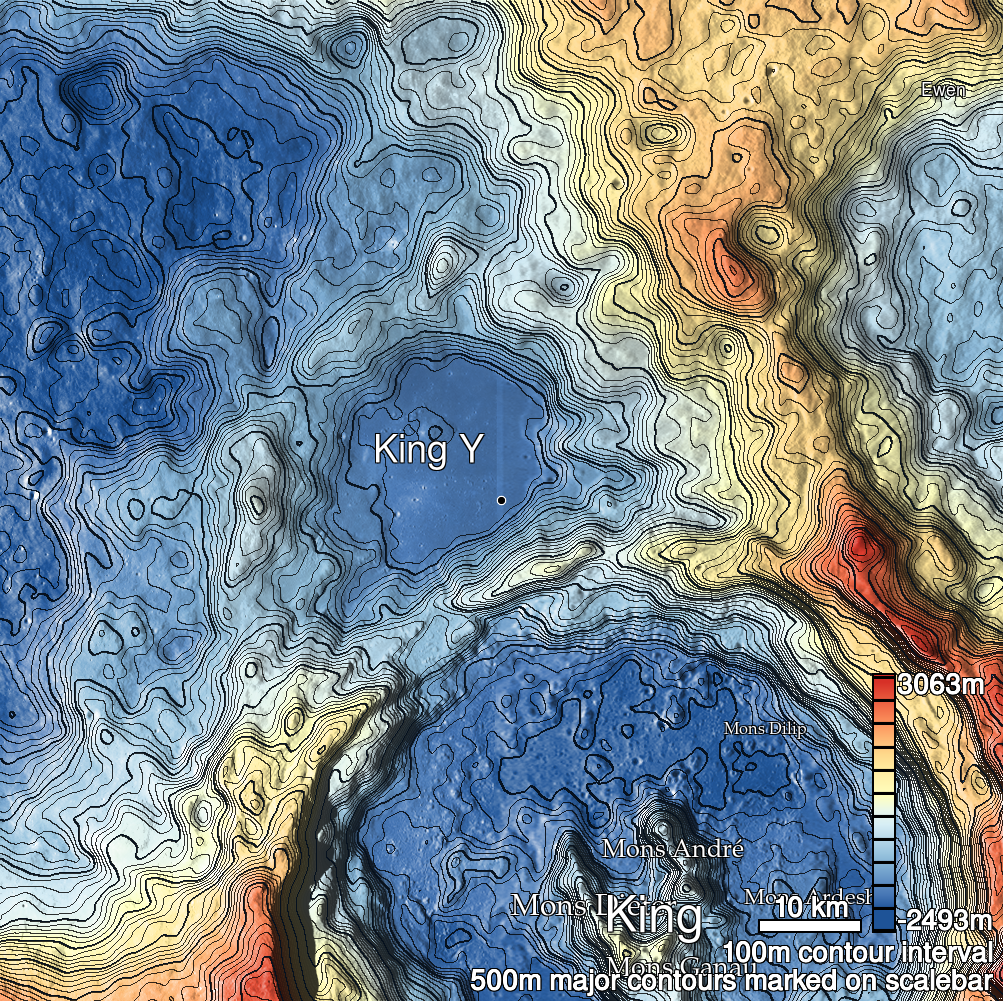

| King 34a Shaded Relief | |
|---|---|
 |
| M1131053889R | |
|---|---|
 |
|
| Line | 29702 |
| Sample | 688 |
| Inc. Angle | -27.61 |
| Emission Angle | -0.12 |
| Time | 13.77 |
| Resolution | 1.17 |
| M182745931R | |
|---|---|
 |
|
| Inc. Angle | -48.5 |
| Emission Angle | -1.28 |
| Time | 15.22 |
| Resolution | 1.27 |
| M106088433R | |
|---|---|
 |
|
| Inc. Angle | -35.35 |
| Emission Angle | -2.22 |
| Time | 14.31 |
| Resolution | 1.29 |
| King 34a Stereo |
|---|
 |
