Pits Atlas: King 38
| Impact Melt pit: King | |
|---|---|
| Name | King 38 |
| Lat. | 6.37 |
| Long. | 119.9252 |
| Desc. | Triangular pit at the S base of a PRF. The SE wall is a ramp from rim to N wall; other walls are vertical. There is a ~100m long fracture running NW-Se ~100m NW (not quite in line with this pit), and a ~50m-long fracture ~130m N. King 16 is ~200m SE. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 16 |
| Funnel Max. Diam. | 35 |
| Inner Min. Diam. | 11 |
| Inner Max. Diam. | 24 |
| Azimuth | 125 |
| Depth | 8.0 |
| Depth 1 | 4.0 |
| Depth 2 | 10.7 |
| Depth 3 | 8.2 |
| Best Stereo Left | M128509025R |
| Best Stereo Right | M128509025R |
| DTMs | NAC_DTM_KINGCRATER2 |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 2 is from higher N wall; Depth 3 is very high-Sun. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | Y? |
| Colinear Fractures | Y |

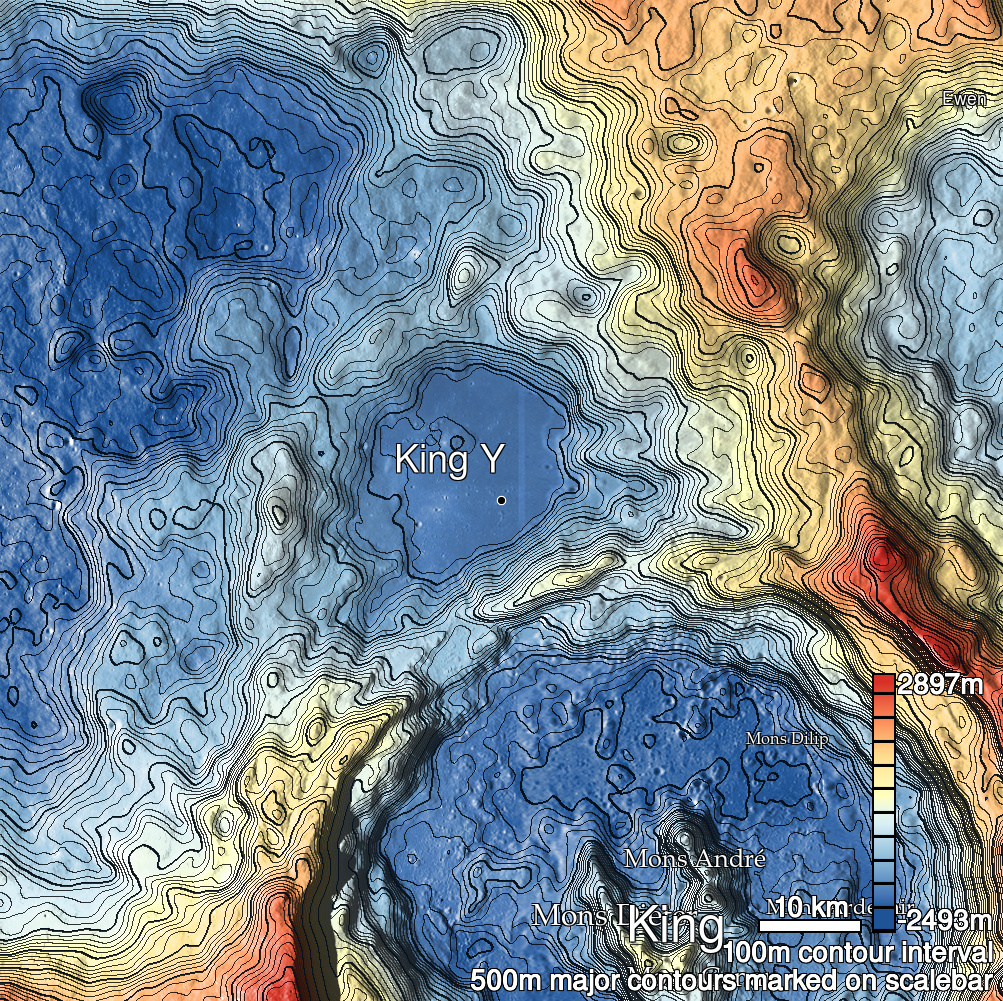

| King 38 Shaded Relief | |
|---|---|
 |
| M1131053889L | |
|---|---|
 |
|
| Line | 28090 |
| Sample | 3718 |
| Inc. Angle | -27.55 |
| Emission Angle | 1.04 |
| Time | 13.76 |
| Resolution | 1.17 |
| M1120456952R | |
|---|---|
 |
|
| Inc. Angle | 32.3 |
| Emission Angle | 2.11 |
| Time | 9.88 |
| Resolution | 1.17 |
| M108447638R | |
|---|---|
 |
|
| Inc. Angle | -11.0 |
| Emission Angle | -1.36 |
| Time | 12.52 |
| Resolution | 0.56 |
| King 38 Stereo |
|---|
 |
