Pits Atlas: King 40
| Impact Melt pit: King | |
|---|---|
| Name | King 40 |
| Lat. | 6.4779 |
| Long. | 119.9976 |
| Desc. | Rectangular pit in a system of fractures. Not technically connected to any fractures, although there is a line of divots running WSW from the pit, passing through a similarly-sized collapse ~120m W, and joining up with a line of fractures ~180m to the W. The NW rim is a ramp from surface to floor. There's a ~2m pit 4m E of the E corner of the pit, and King 22 is ~185m NW. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | King |
| Funnel Min. Diam. | 31 |
| Funnel Max. Diam. | 50 |
| Inner Min. Diam. | 17 |
| Inner Max. Diam. | 26 |
| Azimuth | 110 |
| Depth | 6.0 |
| Depth 1 | 6.2 |
| Depth 2 | 5.6 |
| Depth 3 | 4.8 |
| Best Stereo Left | M128509025R |
| Best Stereo Right | M128509025R |
| DTMs | NAC_DTM_KINGCRATER2 |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | Y? |

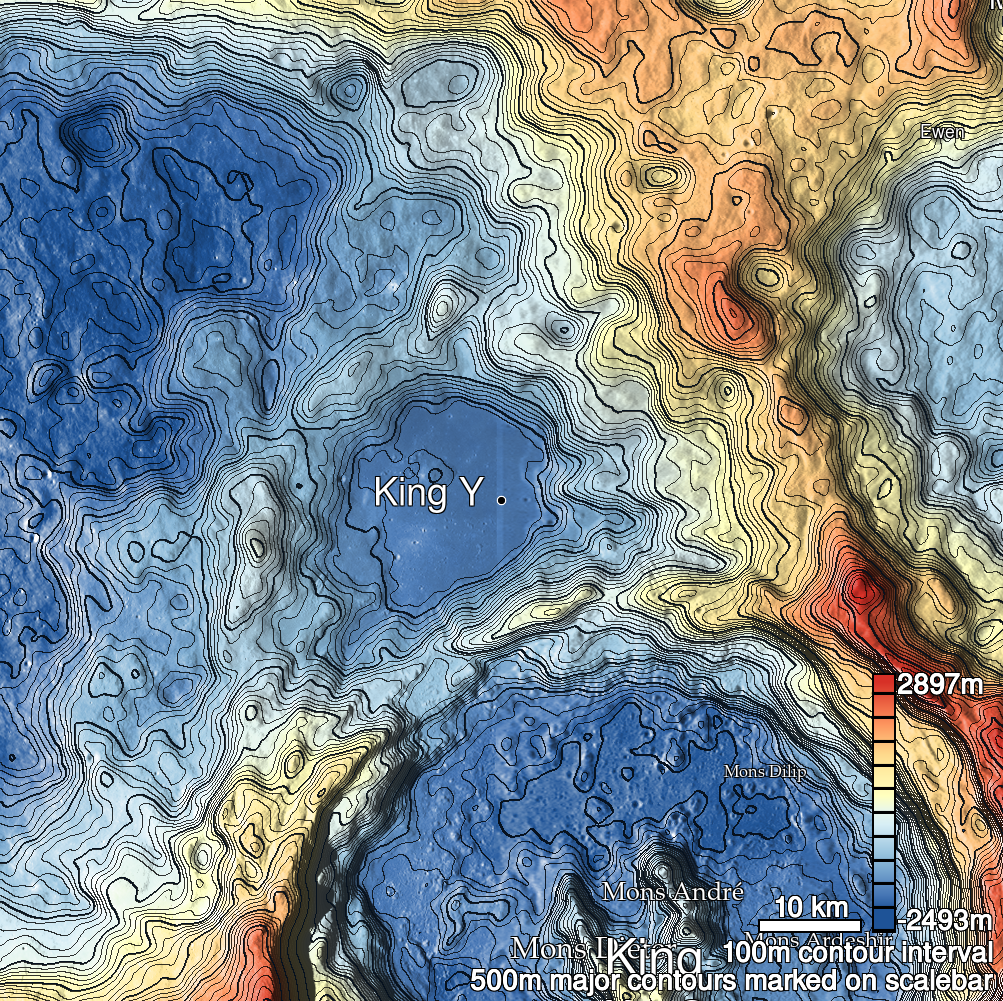

| King 40 Shaded Relief | |
|---|---|
 |
| M1120456952R | |
|---|---|
 |
|
| Line | 30811 |
| Sample | 2238 |
| Inc. Angle | 32.24 |
| Emission Angle | 1.03 |
| Time | 9.88 |
| Resolution | 1.17 |
| M1138120053R | |
|---|---|
 |
|
| Inc. Angle | 56.36 |
| Emission Angle | 2.43 |
| Time | 8.26 |
| Resolution | 1.18 |
| M1131053889R | |
|---|---|
 |
|
| Inc. Angle | -27.65 |
| Emission Angle | -0.18 |
| Time | 13.77 |
| Resolution | 1.17 |
| King 40 Stereo |
|---|
 |
