Pits Atlas: Lalande 2
| Impact Melt pit: Lalande | |
|---|---|
| Name | Lalande 2 |
| Lat. | -4.4949 |
| Long. | 351.4992 |
| Desc. | An elliptical pit in, but not connected to, a set of NE-SW trending fractures. E wall is vertical, W and SW walls are slopes interrupted by blocks. A few other small collapses in the area, and a 90m linear collapse/fracture is 250m SE. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Lalande |
| Funnel Min. Diam. | 15 |
| Funnel Max. Diam. | 22 |
| Inner Min. Diam. | 12 |
| Inner Max. Diam. | 19 |
| Azimuth | 15 |
| Depth | 6.0 |
| Depth 1 | 5.0 |
| Depth 2 | 7.0 |
| Depth 3 | >3.0 |
| Best Stereo Left | M1118936862R |
| Best Stereo Right | M1118936862R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Stereo is accidental and probably only works for manual viewing. |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | ? |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N? |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | Y |

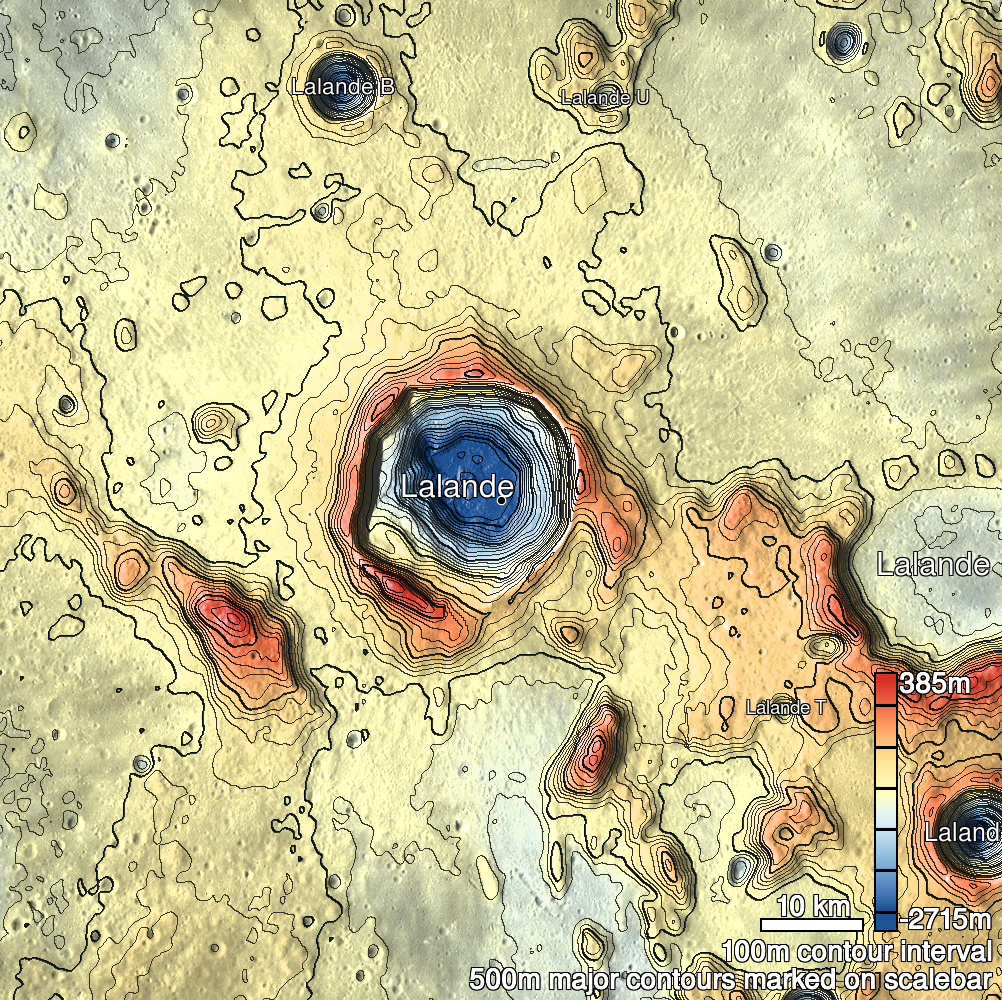

| Lalande 2 Shaded Relief | |
|---|---|
 |
| M114009947L | |
|---|---|
 |
|
| Line | 29349 |
| Sample | 2082 |
| Inc. Angle | 56.58 |
| Emission Angle | -1.97 |
| Time | 8.23 |
| Resolution | 0.5 |
| M1118936862R | |
|---|---|
 |
|
| Inc. Angle | 15.82 |
| Emission Angle | 0.13 |
| Time | 11.01 |
| Resolution | 0.96 |
| M1096551351L | |
|---|---|
 |
|
| Inc. Angle | -68.54 |
| Emission Angle | 0.26 |
| Time | 16.57 |
| Resolution | 1.03 |
| Lalande 2 Stereo |
|---|
 |
