Pits Atlas: Highland 1
| Highland pit: Highland | |
|---|---|
| Name | Highland 1 |
| Lat. | 43.9662 |
| Long. | 23.0836 |
| Desc. | Circular pit with crisp funnel and apparently bowl-shaped floor on the northern side (southern side is in permanent shadow). Seems to have a continuous inner wall (or at least discontinuity in slope brightness) even on permanently-shadowed S side. Funnel extends out ~8m on all sides of pit, slope is >45° based on lighting. Funnel depth is between 8m and 13m based on angle and shadow measure. Surrounding terrain is very hilly, pit is in a valley between two ridges(?). |
| Types | |
| Terrain | Highland |
| Host Feature | Highland |
| Funnel Min. Diam. | 49 |
| Funnel Max. Diam. | 58 |
| Inner Min. Diam. | 37 |
| Inner Max. Diam. | 41 |
| Azimuth | 180 |
| Depth | 27.0 |
| Depth 1 | 26.1 |
| Depth 2 | 26.9 |
| Depth 3 | 26.9 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths are from top of funnel, not inner wall. |
| Entrance Ramp | N |
| Overhang | N? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y? |
| In Dome | N |
| Beside Dome | Y? |
| In Depression | Y? |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

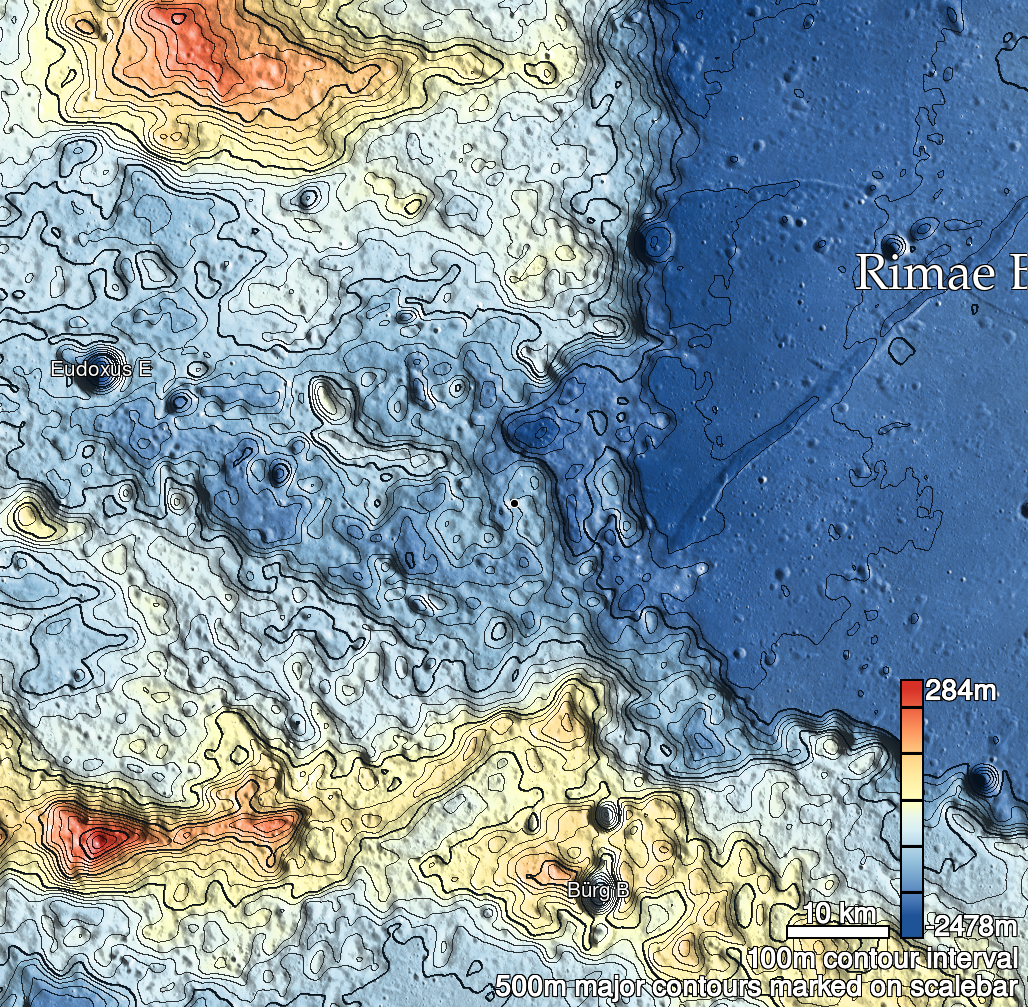

| Highland 1 Shaded Relief | |
|---|---|
 |
| M1254078933R | |
|---|---|
 |
|
| Line | 21607 |
| Sample | 4238 |
| Inc. Angle | -45.43 |
| Emission Angle | -2.23 |
| Time | 12.46 |
| Resolution | 1.04 |
| M1164652917R | |
|---|---|
 |
|
| Inc. Angle | 45.65 |
| Emission Angle | 1.02 |
| Time | 11.38 |
| Resolution | 1.39 |
| M185734641L | |
|---|---|
 |
|
| Inc. Angle | -43.81 |
| Emission Angle | 1.99 |
| Time | 12.82 |
| Resolution | 1.63 |
