Pits Atlas: Lalande 3b
| Impact Melt pit: Lalande | |
|---|---|
| Name | Lalande 3b |
| Lat. | -4.5328 |
| Long. | 351.4895 |
| Desc. | Elliptical pit abutting on the S corner of 3a. Most of the floor is covered by ~1m boulders. Possible access slope on the SW side, depending on boulder density. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Lalande |
| Funnel Min. Diam. | 28 |
| Funnel Max. Diam. | 31 |
| Inner Min. Diam. | 23 |
| Inner Max. Diam. | 28 |
| Azimuth | 40 |
| Depth | 4.0 |
| Depth 1 | 3.3 |
| Depth 2 | 3.6 |
| Depth 3 | 4.0 |
| Best Stereo Left | M1180172051R |
| Best Stereo Right | M1180172051R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Stereo is accidental and probably only works for manual viewing. |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N? |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | N? |

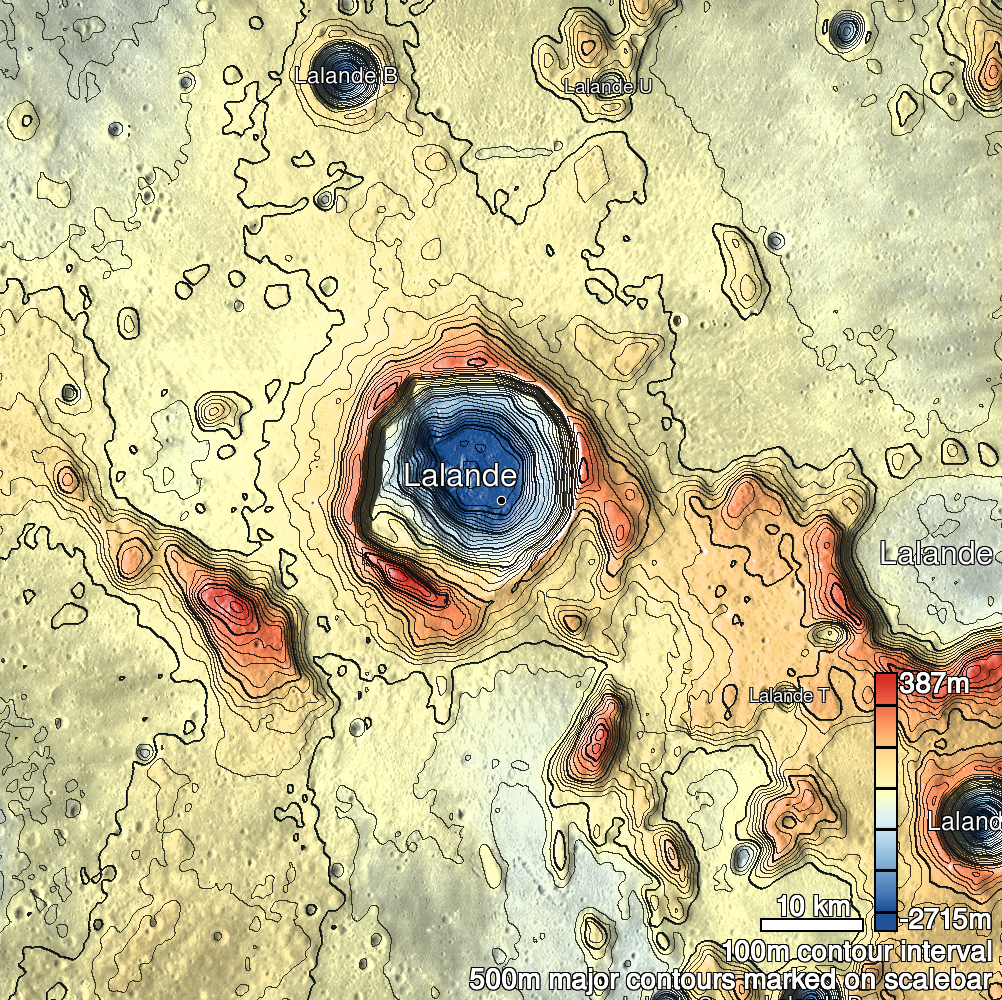

| Lalande 3b Shaded Relief | |
|---|---|
 |

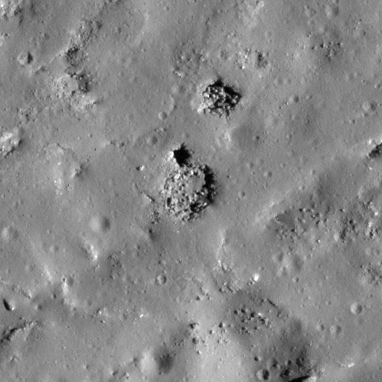

| M114009947L | |
|---|---|
 |
|
| Line | 31456 |
| Sample | 2639 |
| Inc. Angle | 56.59 |
| Emission Angle | -1.64 |
| Time | 8.23 |
| Resolution | 0.5 |
| M1180172051R | |
|---|---|
 |
|
| Inc. Angle | 15.44 |
| Emission Angle | 0.11 |
| Time | 11.03 |
| Resolution | 1.0 |
| M1096551351L | |
|---|---|
 |
|
| Inc. Angle | -68.53 |
| Emission Angle | 0.45 |
| Time | 16.57 |
| Resolution | 1.03 |
| Lalande 3b Stereo |
|---|
 |
