Pits Atlas: Lalande 12
| Impact Melt pit: Lalande | |
|---|---|
| Name | Lalande 12 |
| Lat. | -4.4275 |
| Long. | 351.4436 |
| Desc. | Irregular pit. "Funnel" is odd- it looks like there is an outer rim with vertical walls, in addition to the normal inner pit. On the east edge of a ~150x100m rough area (probably slightly raised, possibly a fracture field- no stereo and lack of low-Sun images make it hard to classify). There is a pair of shallow pits ~250m SE, and a complex set of fractures ~150m SW. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Lalande |
| Funnel Min. Diam. | 9 |
| Funnel Max. Diam. | 11 |
| Inner Min. Diam. | 4 |
| Inner Max. Diam. | 8 |
| Azimuth | 150 |
| Depth | 11.0 |
| Depth 1 | 11.3 |
| Depth 2 | 9.9 |
| Depth 3 | 10.6 |
| Best Stereo Left | M172975608L |
| Best Stereo Right | M172975608L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | All depths might be minimums. Floor is only unambiguously visible in M109290998L, but incidence (~3 degrees) is approximately the same as emission (~2 degrees). Stereo is accidental and probably only works for manual viewing. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | Y? |
| Colinear Depressions | Y |
| Colinear Fractures | Y |

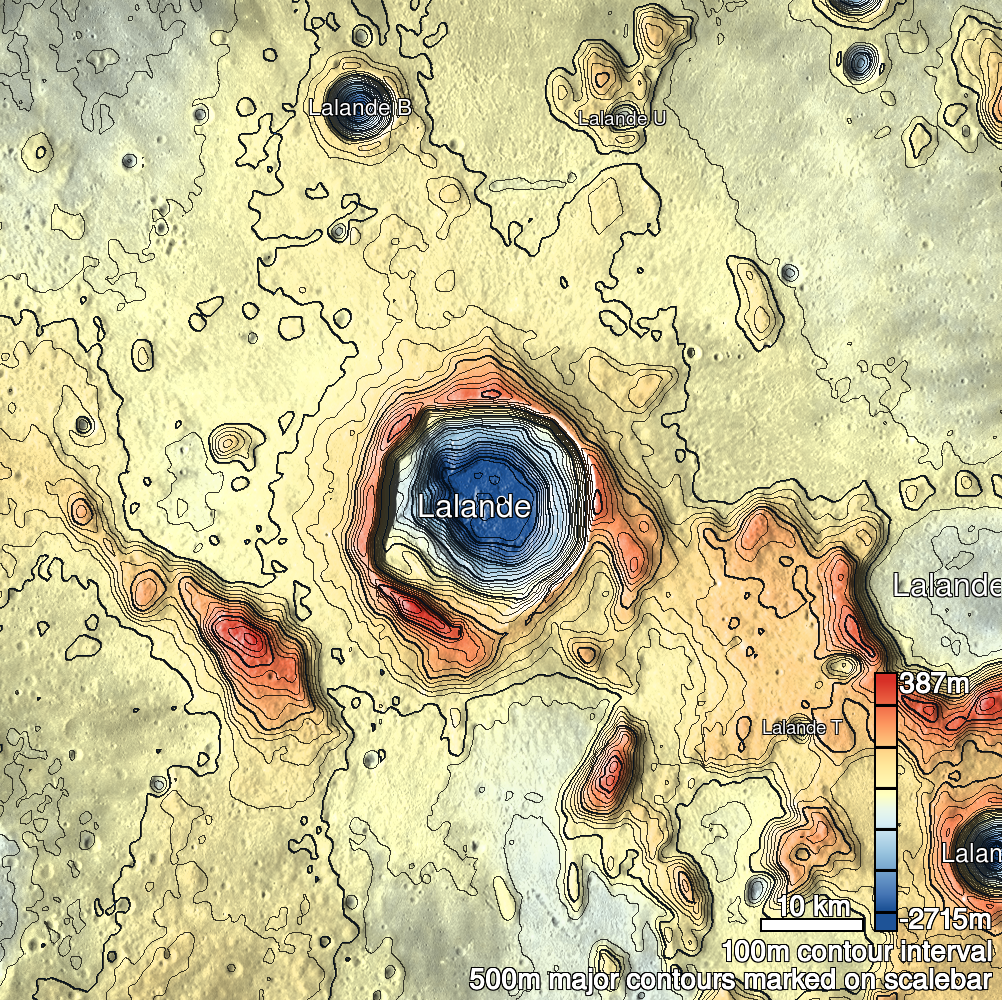

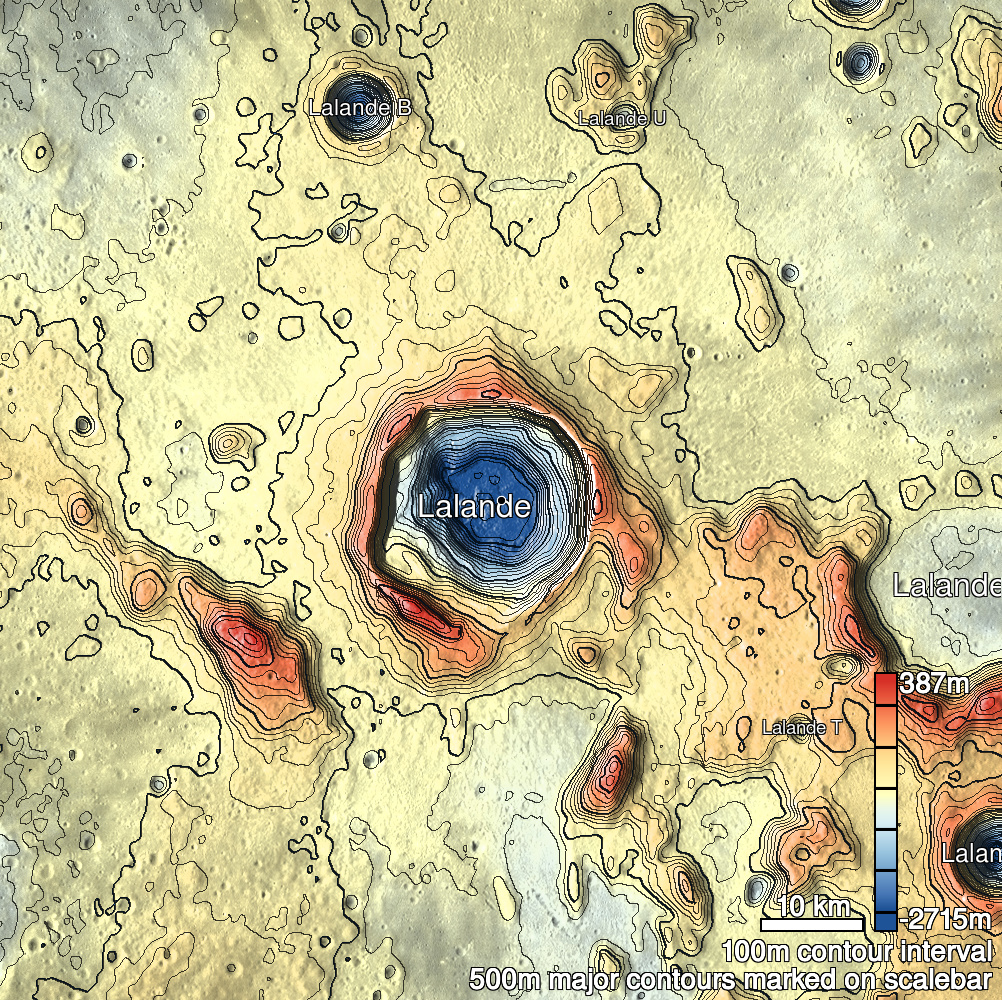

| Lalande 12 Shaded Relief | |
|---|---|
 |

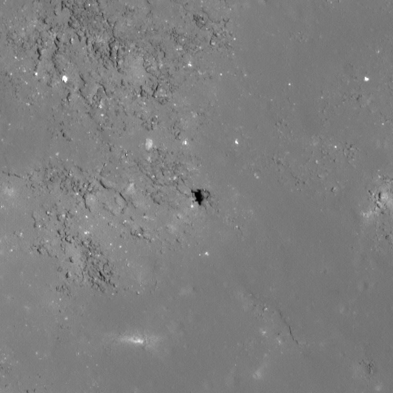

| M172975608L | |
|---|---|
 |
|
| Line | 20631 |
| Sample | 3026 |
| Inc. Angle | 16.38 |
| Emission Angle | -1.4 |
| Time | 10.93 |
| Resolution | 0.47 |
| M1118936862R | |
|---|---|
 |
|
| Inc. Angle | 15.85 |
| Emission Angle | 1.19 |
| Time | 11.01 |
| Resolution | 0.96 |
| M1103624254L | |
|---|---|
 |
|
| Inc. Angle | 12.14 |
| Emission Angle | -3.05 |
| Time | 11.22 |
| Resolution | 1.03 |
| Lalande 12 Stereo |
|---|
 |
