Pits Atlas: Oday 2
| Impact Melt pit: Oday | |
|---|---|
| Name | Oday 2 |
| Lat. | -30.9463 |
| Long. | 158.0644 |
| Desc. | Rectangular pit ~150m from the crater wall, SW wall is a nearly uninterrupted slope to surface. There are more depressions and collapses to the SW suggesting a larger partially-collapsed void space, with possible uncollapsed bridge. Subtle PRF just to the NE. Linear collapse/fracture ~65m W. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Oday |
| Funnel Min. Diam. | 16 |
| Funnel Max. Diam. | 34 |
| Inner Min. Diam. | 12 |
| Inner Max. Diam. | 14 |
| Azimuth | 25 |
| Depth | 4.0 |
| Depth 1 | 4.0 |
| Depth 2 | 4.1 |
| Depth 3 | 4.7 |
| Best Stereo Left | M1250880175R |
| Best Stereo Right | M1250880175R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | All depths measured from NW wall (adjacent to PRF) |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | Y |
| Colinear Fractures | N |

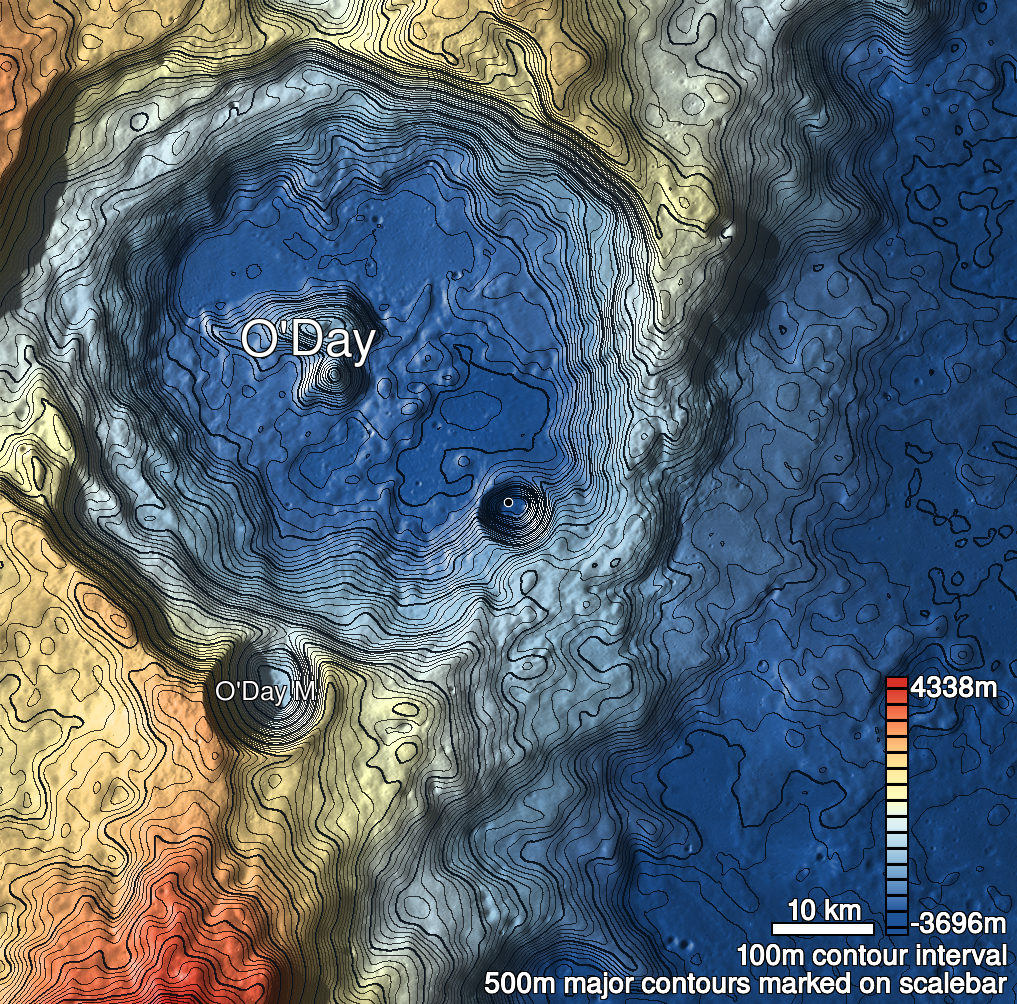

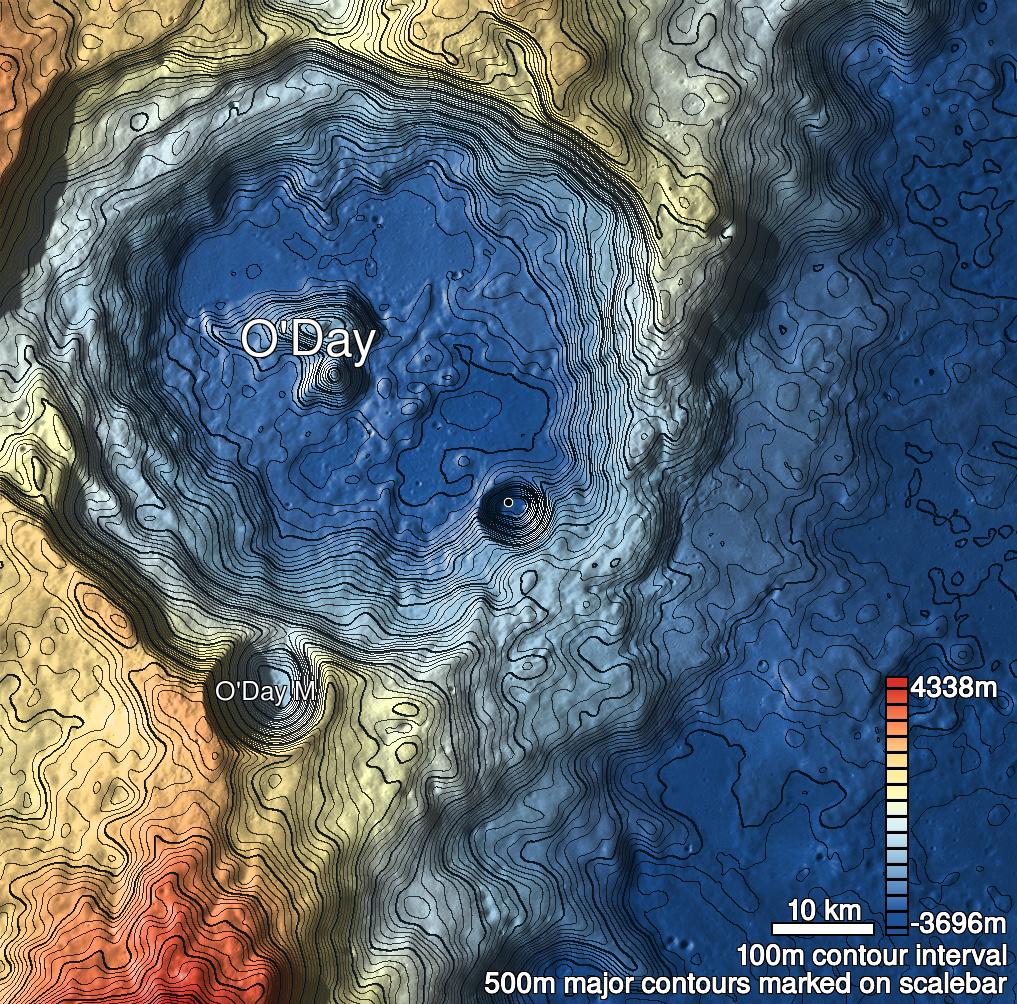

| Oday 2 Shaded Relief | |
|---|---|
 |
| M112917460R | |
|---|---|
 |
|
| Line | 16938 |
| Sample | 1637 |
| Inc. Angle | 51.05 |
| Emission Angle | 0.65 |
| Time | 9.07 |
| Resolution | 0.69 |
| M176603102L | |
|---|---|
 |
|
| Inc. Angle | 63.04 |
| Emission Angle | -1.08 |
| Time | 8.11 |
| Resolution | 0.53 |
| M125895771L | |
|---|---|
 |
|
| Inc. Angle | 35.89 |
| Emission Angle | -1.14 |
| Time | 10.93 |
| Resolution | 0.58 |
| Oday 2 Stereo |
|---|
 |
