Pits Atlas: Ohm 1
| Impact Melt, Fracture pit: Ohm | |
|---|---|
| Name | Ohm 1 |
| Lat. | 18.0805 |
| Long. | 246.3187 |
| Desc. | Triangular pit at the end of a ~57m fracture, which is in line with a larger set or arcuate fractures/collapses. Possible overhang of a meter or two revealed by slewed image in stereo pair. At other end of fracture is a 40x35m bean-shaped funnel, with lowest point at the opening into the fracture. Floor appears smooth. |
| Types | Fracture |
| Terrain | Impact Melt |
| Host Feature | Ohm |
| Funnel Min. Diam. | 30 |
| Funnel Max. Diam. | 31 |
| Inner Min. Diam. | 13 |
| Inner Max. Diam. | 15 |
| Azimuth | 130 |
| Depth | >16.0 |
| Depth 1 | >16.0 |
| Depth 2 | >8.0 |
| Depth 3 | >10.0 |
| Best Stereo Left | M1213833178L |
| Best Stereo Right | M1213833178L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | No high-Sun images are non-slewed. Floor is only visible in 16 degree slewed image M125313001R, and complex lighting geometry makes shadow measurements from that image untenable. |
| Entrance Ramp | N |
| Overhang | Y? |
| Nearby Pits? | Y? |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y? |
| Colinear Depressions | Y |
| Colinear Fractures | Y |

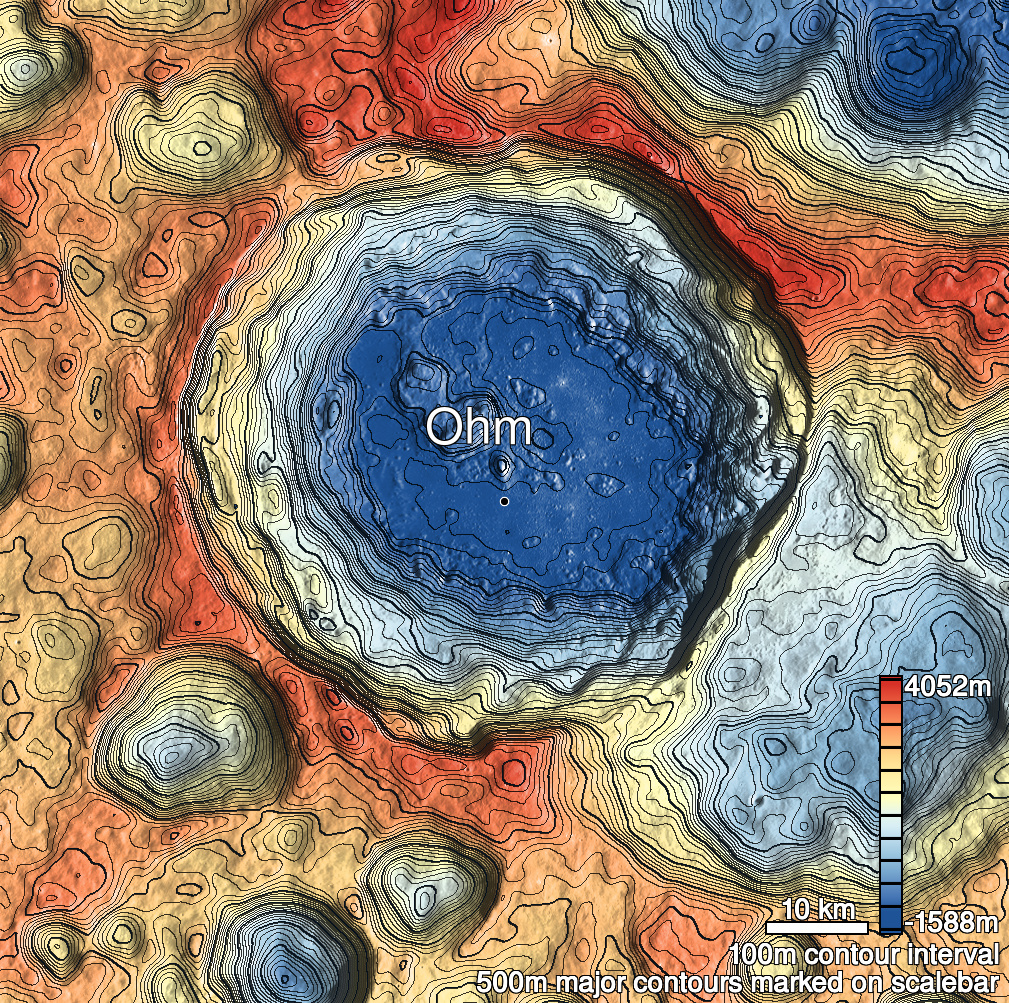

| Ohm 1 Shaded Relief | |
|---|---|
 |
| M184275909R | |
|---|---|
 |
|
| Line | 20314 |
| Sample | 1844 |
| Inc. Angle | -33.67 |
| Emission Angle | -0.79 |
| Time | 13.99 |
| Resolution | 1.3 |
| M181917051L | |
|---|---|
 |
|
| Inc. Angle | -59.2 |
| Emission Angle | 1.83 |
| Time | 15.86 |
| Resolution | 1.31 |
| M102901755R | |
|---|---|
 |
|
| Inc. Angle | -71.26 |
| Emission Angle | -1.6 |
| Time | 16.68 |
| Resolution | 1.42 |
| Ohm 1 Stereo |
|---|
 |
