Pits Atlas: Ohm 2
| Impact Melt pit: Ohm | |
|---|---|
| Name | Ohm 2 |
| Lat. | 18.6687 |
| Long. | 246.4141 |
| Desc. | Irregular pit with very pronounced funnel. No visible floor in the available images. North wall appears to slope down to the south wall, may be traversable. There is a 150m long, 40m wide straight, round-bottomed depression lies ~100m NW. Possible subtle depression running parallel to that with Ohm 2 at its E end. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Ohm |
| Funnel Min. Diam. | 26 |
| Funnel Max. Diam. | 36 |
| Inner Min. Diam. | N/A |
| Inner Max. Diam. | 12 |
| Azimuth | 75 |
| Depth | 16.0 |
| Depth 1 | 14.3 |
| Depth 2 | 15.6 |
| Depth 3 | 18.5 |
| Best Stereo Left | M1213833178L |
| Best Stereo Right | M1213833178L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N? |
| Colinear Pits | N |
| Colinear Depressions | Y |
| Colinear Fractures | N |

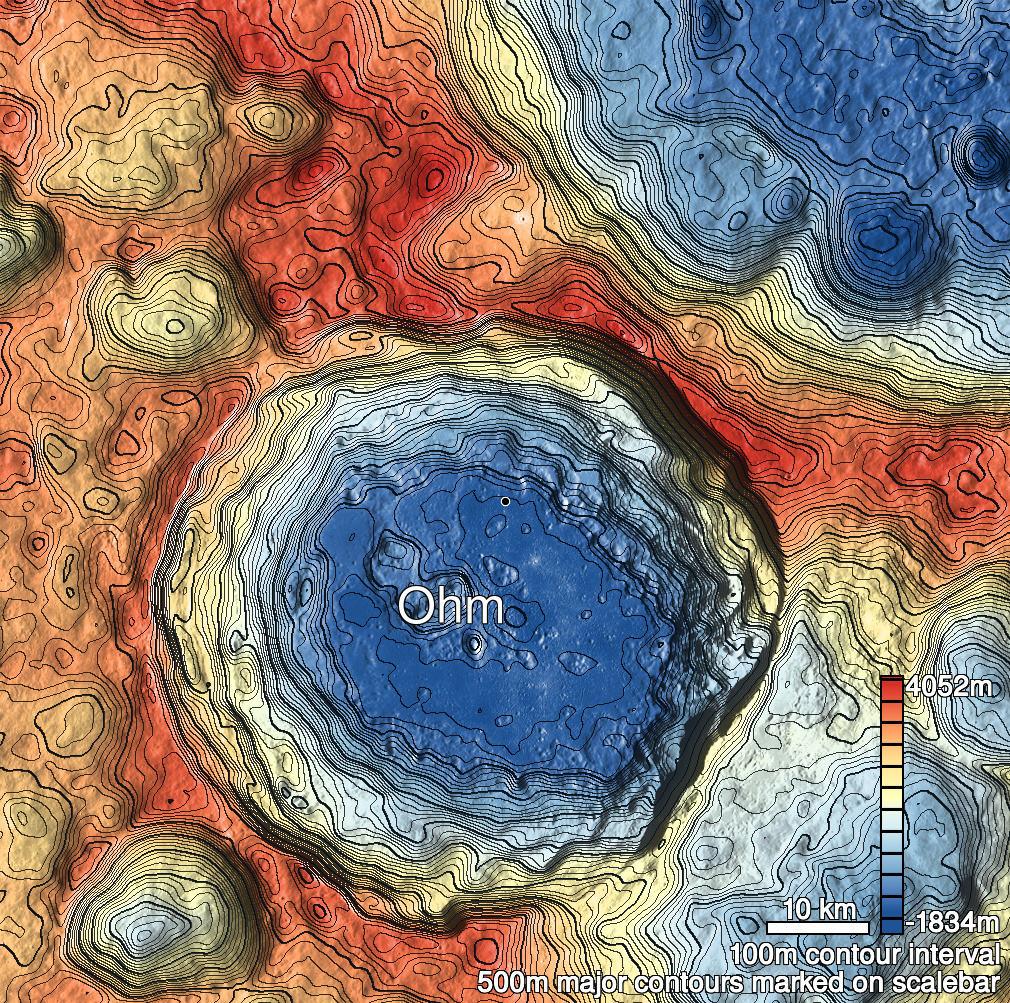

| Ohm 2 Shaded Relief | |
|---|---|
 |
| M140650524L | |
|---|---|
 |
|
| Line | 30040 |
| Sample | 3402 |
| Inc. Angle | 20.31 |
| Emission Angle | -1.2 |
| Time | 11.85 |
| Resolution | 0.62 |
| M1134934841R | |
|---|---|
 |
|
| Inc. Angle | 27.08 |
| Emission Angle | 1.17 |
| Time | 10.73 |
| Resolution | 1.34 |
| M184275909R | |
|---|---|
 |
|
| Inc. Angle | -34.01 |
| Emission Angle | -1.83 |
| Time | 14.0 |
| Resolution | 1.31 |
| Ohm 2 Stereo |
|---|
 |
