Pits Atlas: Picard 1
| Impact Melt pit: Picard | |
|---|---|
| Name | Picard 1 |
| Lat. | 14.4714 |
| Long. | 54.6591 |
| Desc. | Irregular pit, resolution in well-lit images is too low to make out details. No apparent collapsed walls, although there may be a boulder sticking out of the SW wall. In the middle of a very generic-looking cratered slope. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Picard |
| Funnel Min. Diam. | 17 |
| Funnel Max. Diam. | 25 |
| Inner Min. Diam. | 8 |
| Inner Max. Diam. | 12 |
| Azimuth | 135 |
| Depth | 10.0 |
| Depth 1 | 6.8 |
| Depth 2 | 15.0 |
| Depth 3 | 8.0 |
| Best Stereo Left | M1144452219R |
| Best Stereo Right | M1144452219R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M134829026R |
| Data Warning | All shadow measures are on <4px shadow lengths. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

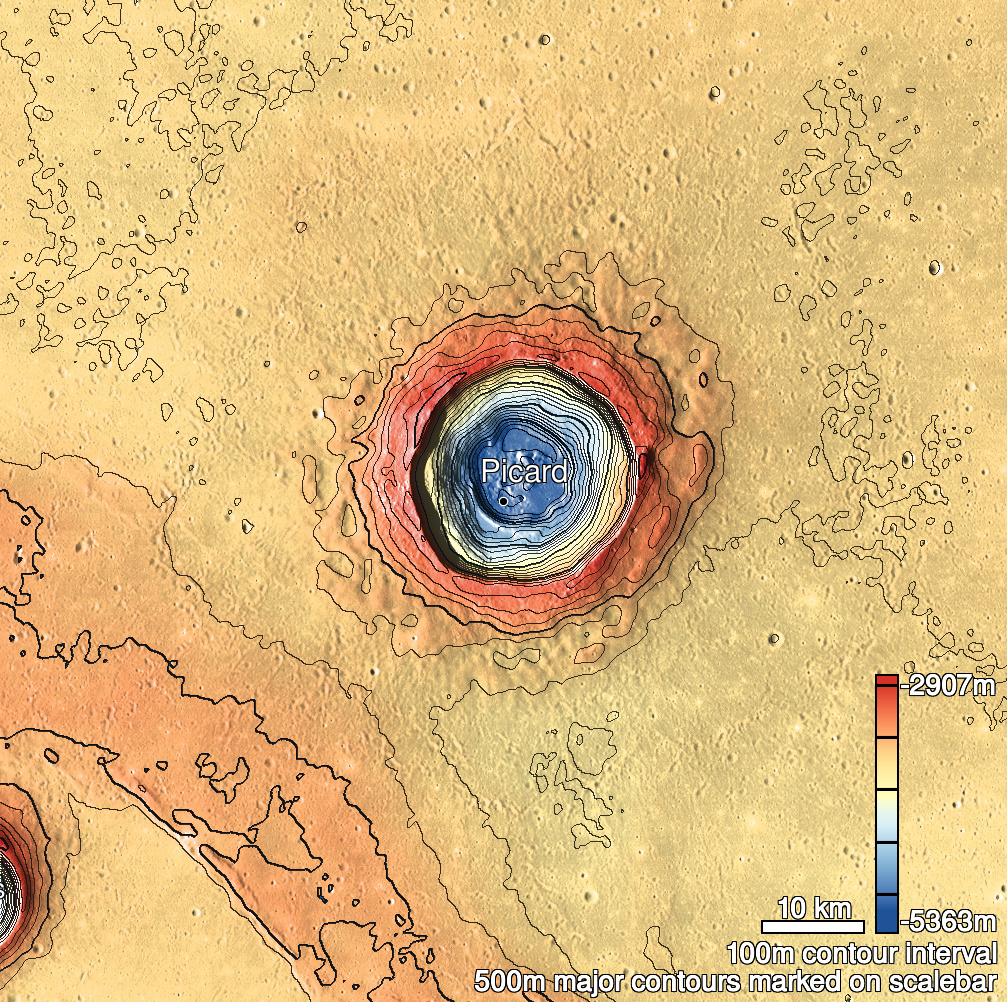

| Picard 1 Shaded Relief | |
|---|---|
 |
| M1166807824L | |
|---|---|
 |
|
| Line | 39804 |
| Sample | 3584 |
| Inc. Angle | 36.15 |
| Emission Angle | -1.12 |
| Time | 9.78 |
| Resolution | 1.23 |
| M1149153951L | |
|---|---|
 |
|
| Inc. Angle | 15.54 |
| Emission Angle | -1.96 |
| Time | 11.47 |
| Resolution | 1.22 |
| M1131480463R | |
|---|---|
 |
|
| Inc. Angle | -26.53 |
| Emission Angle | -0.18 |
| Time | 13.43 |
| Resolution | 1.27 |
| Picard 1 Stereo |
|---|
 |
