Pits Atlas: Stefan L 1
| Uncertain, Impact Melt pit: Stefan L | |
|---|---|
| Name | Stefan L 1 |
| Lat. | 44.537 |
| Long. | 252.0302 |
| Desc. | Semicircular pit/cliff. North wall is a smooth slope, south half is a series of large (~8m) boulders descending towards the north. No clear floor or vertical walls other than the boulders. May not actually qualify as a pit, but it's definitely some sort of collapse. Is on the north side of a small rise, but no other collapse/depression features in the area. |
| Types | Uncertain |
| Terrain | Impact Melt |
| Host Feature | Stefan L |
| Funnel Min. Diam. | 39 |
| Funnel Max. Diam. | 41 |
| Inner Min. Diam. | N/A |
| Inner Max. Diam. | 16 |
| Azimuth | 30 |
| Depth | 13.0 |
| Depth 1 | 4.1 |
| Depth 2 | 19.4 |
| Depth 3 | 7.0 |
| Best Stereo Left | M153592303L |
| Best Stereo Right | M153592303L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 1 is from lowest boulder to north wall. Depth 2 is from top of southern funnel to part-way down the north wall, Depth 3 is from west wall to similar location. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | Y |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

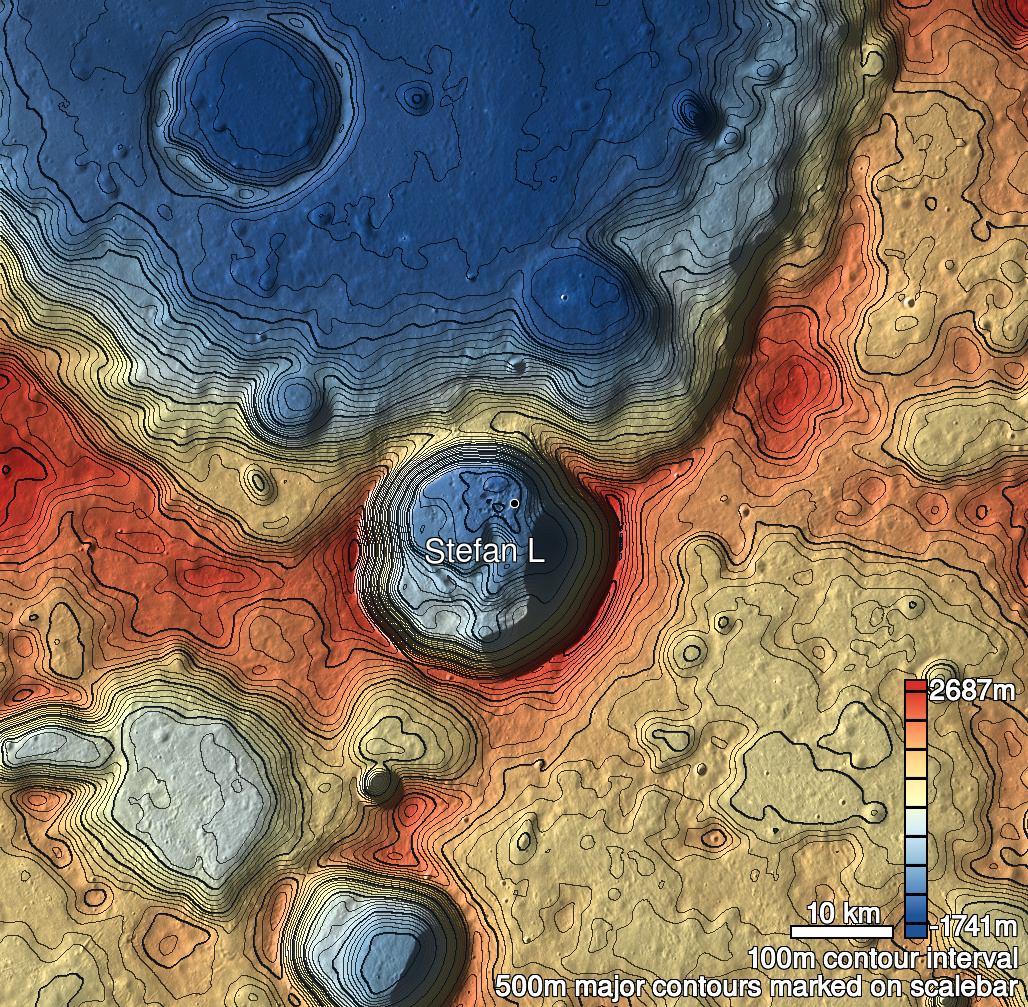

| Stefan L 1 Shaded Relief | |
|---|---|
 |
| M1099544198L | |
|---|---|
 |
|
| Line | 34806 |
| Sample | 3457 |
| Inc. Angle | -54.35 |
| Emission Angle | 1.24 |
| Time | 14.16 |
| Resolution | 1.68 |
| M158307753L | |
|---|---|
 |
|
| Inc. Angle | 50.34 |
| Emission Angle | -1.02 |
| Time | 10.07 |
| Resolution | 0.51 |
| M1189042601L | |
|---|---|
 |
|
| Inc. Angle | -69.35 |
| Emission Angle | 0.77 |
| Time | 15.91 |
| Resolution | 1.4 |
| Stefan L 1 Stereo |
|---|
 |
