Pits Atlas: Stefan L 2
| Impact Melt pit: Stefan L | |
|---|---|
| Name | Stefan L 2 |
| Lat. | 44.4982 |
| Long. | 251.8344 |
| Desc. | Roughly square pit. No collapsed walls, but floor is slightly rounded up at least at the NE corner. Some 3-7m bounders in the NW corner. Nearby terrain is somewhat lumpy, but no obvious depressions r collapses. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stefan L |
| Funnel Min. Diam. | 28 |
| Funnel Max. Diam. | 30 |
| Inner Min. Diam. | 19 |
| Inner Max. Diam. | 20 |
| Azimuth | 80 |
| Depth | 10.0 |
| Depth 1 | 8.7 |
| Depth 2 | 10.5 |
| Depth 3 | 10.1 |
| Best Stereo Left | M158314541R |
| Best Stereo Right | M158314541R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N? |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

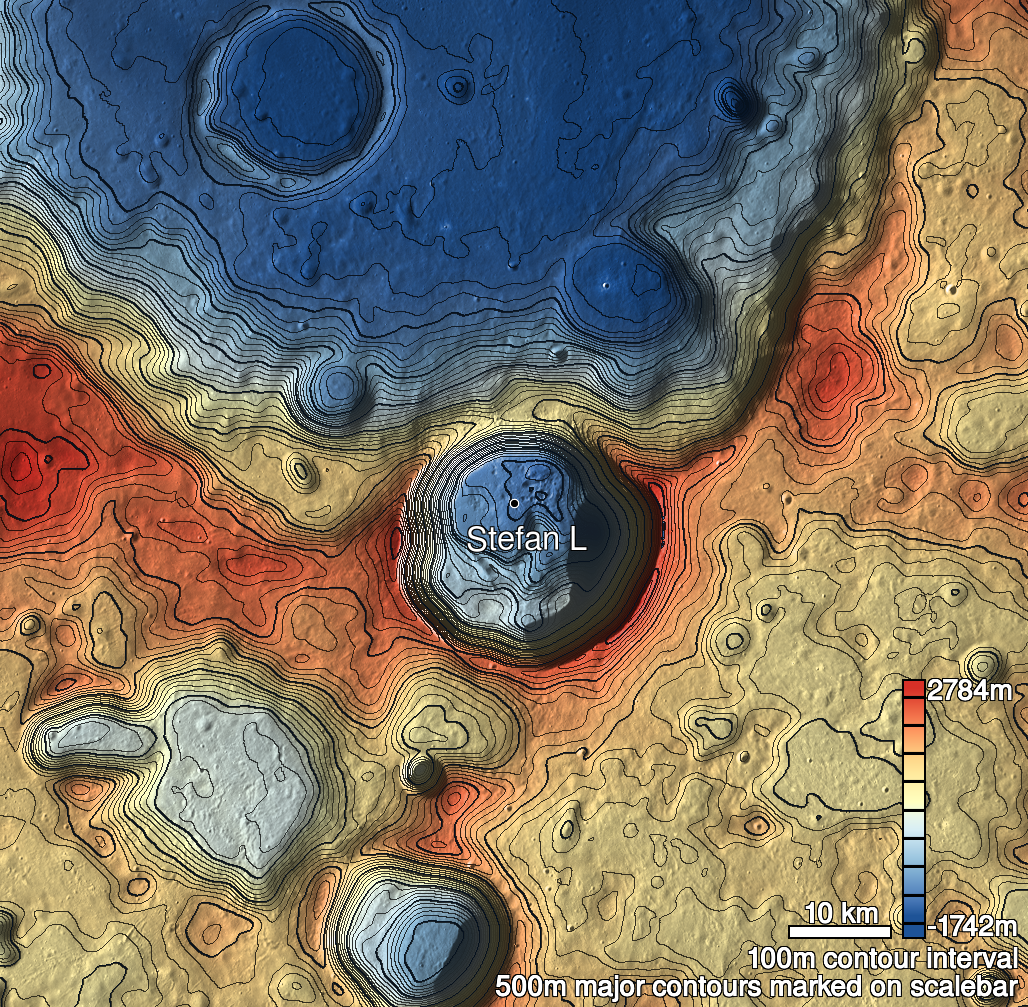

| Stefan L 2 Shaded Relief | |
|---|---|
 |
| M158307753R | |
|---|---|
 |
|
| Line | 25565 |
| Sample | 4981 |
| Inc. Angle | 50.39 |
| Emission Angle | 3.83 |
| Time | 10.06 |
| Resolution | 0.51 |
| M1132531922L | |
|---|---|
 |
|
| Inc. Angle | -46.3 |
| Emission Angle | 1.75 |
| Time | 12.47 |
| Resolution | 1.58 |
| M1099544198L | |
|---|---|
 |
|
| Inc. Angle | -54.23 |
| Emission Angle | 2.84 |
| Time | 14.15 |
| Resolution | 1.68 |
| Stefan L 2 Stereo |
|---|
 |
