Pits Atlas: Stevinus 2
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 2 |
| Lat. | -32.4828 |
| Long. | 54.5722 |
| Desc. | Very narrow pit in a subtle N-S trending depression, with the long axis of the pit oriented along the depression. No floor visible. No other collapses in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 18 |
| Funnel Max. Diam. | 22 |
| Inner Min. Diam. | 4 |
| Inner Max. Diam. | 9 |
| Azimuth | 15 |
| Depth | >7.0 |
| Depth 1 | >5.0 |
| Depth 2 | >6.0 |
| Depth 3 | >8.0 |
| Best Stereo Left | M1151494998L |
| Best Stereo Right | M1151494998L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Stereo is accidental, and may not be useful for anything other than manual viewing. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

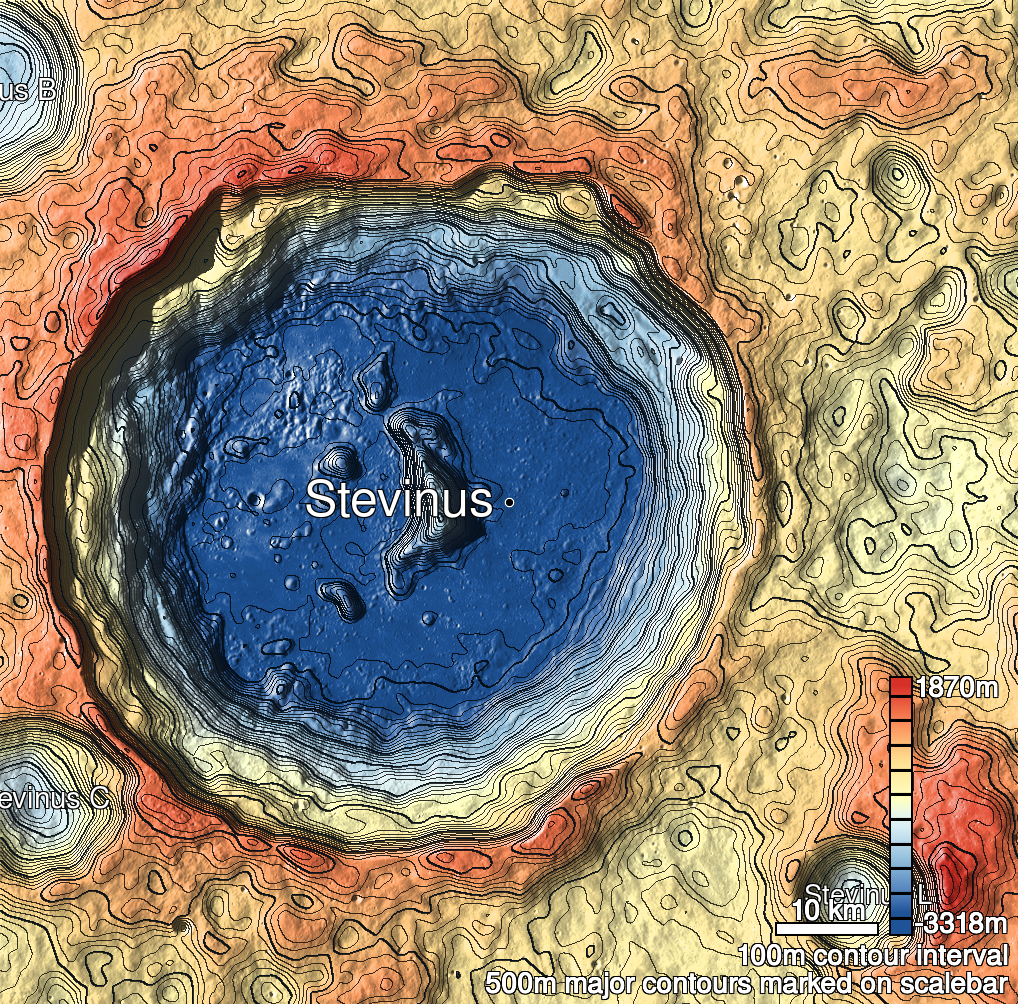

| Stevinus 2 Shaded Relief | |
|---|---|
 |
| M124212055L | |
|---|---|
 |
|
| Line | 41146 |
| Sample | 397 |
| Inc. Angle | -34.09 |
| Emission Angle | 2.95 |
| Time | 12.2 |
| Resolution | 0.43 |
| M1116158959L | |
|---|---|
 |
|
| Inc. Angle | -37.55 |
| Emission Angle | 2.57 |
| Time | 13.12 |
| Resolution | 0.6 |
| M1103217633L | |
|---|---|
 |
|
| Inc. Angle | 31.7 |
| Emission Angle | -2.82 |
| Time | 11.61 |
| Resolution | 0.8 |
| Stevinus 2 Stereo |
|---|
 |
