Pits Atlas: Stevinus 3
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 3 |
| Lat. | -32.8592 |
| Long. | 54.0796 |
| Desc. | Rectangular pit with an extremely pronounced funnel. NE wall is an even (albeit rocky) slope from rim of funnel to SW wall. There are some weird features ~200m to the SE that look like wide flat (pancake-shaped) PRFs, although there is no stereo data to confirm that impression. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 45 |
| Funnel Max. Diam. | 56 |
| Inner Min. Diam. | 6 |
| Inner Max. Diam. | 15 |
| Azimuth | 40 |
| Depth | 9.0 |
| Depth 1 | 9.0 |
| Depth 2 | >6.0 |
| Depth 3 | >8.0 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 2 is from lowest point on sharp rim to SW wall (sun is pointing directly down the NE slope); Depth 3 is from mid-way down the funnel to the upper part of the NW slope. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N? |
| Beside Dome | Y? |
| In Depression | Y |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

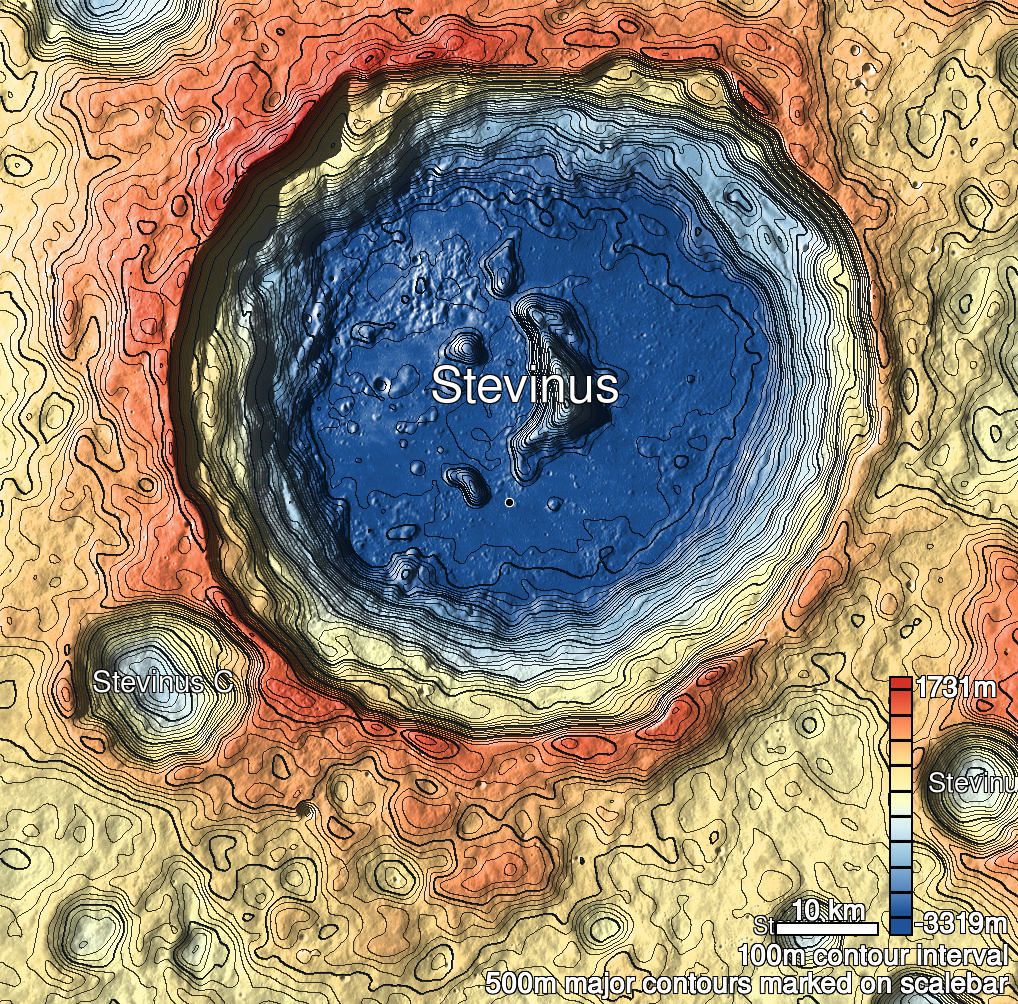

| Stevinus 3 Shaded Relief | |
|---|---|
 |

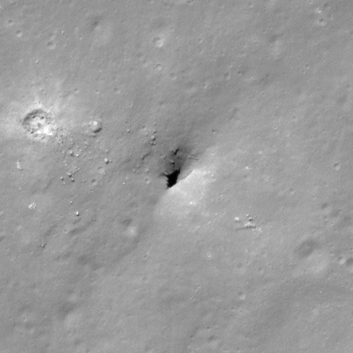

| M170213482R | |
|---|---|
 |
|
| Line | 45861 |
| Sample | 3955 |
| Inc. Angle | -35.0 |
| Emission Angle | -2.0 |
| Time | 13.11 |
| Resolution | 0.56 |

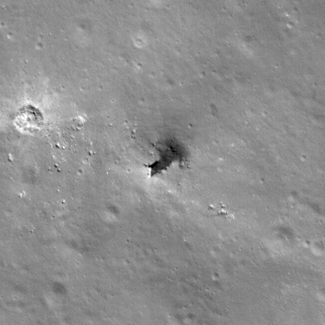

| M111240262R | |
|---|---|
 |
|
| Inc. Angle | 38.64 |
| Emission Angle | 0.86 |
| Time | 10.39 |
| Resolution | 0.61 |
| M1190372454L | |
|---|---|
 |
|
| Inc. Angle | -55.43 |
| Emission Angle | 1.47 |
| Time | 15.26 |
| Resolution | 0.64 |
