Pits Atlas: Stevinus 6
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 6 |
| Lat. | -32.3828 |
| Long. | 54.6579 |
| Desc. | Small irregular pit. No floor visible, significant funnel. No features of note other than some subtle PRFs in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 8 |
| Funnel Max. Diam. | 13 |
| Inner Min. Diam. | 4 |
| Inner Max. Diam. | 7 |
| Azimuth | 45 |
| Depth | 7.0 |
| Depth 1 | 7.5 |
| Depth 2 | 7.4 |
| Depth 3 | 6.7 |
| Best Stereo Left | M1105574923R |
| Best Stereo Right | M1105574923R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

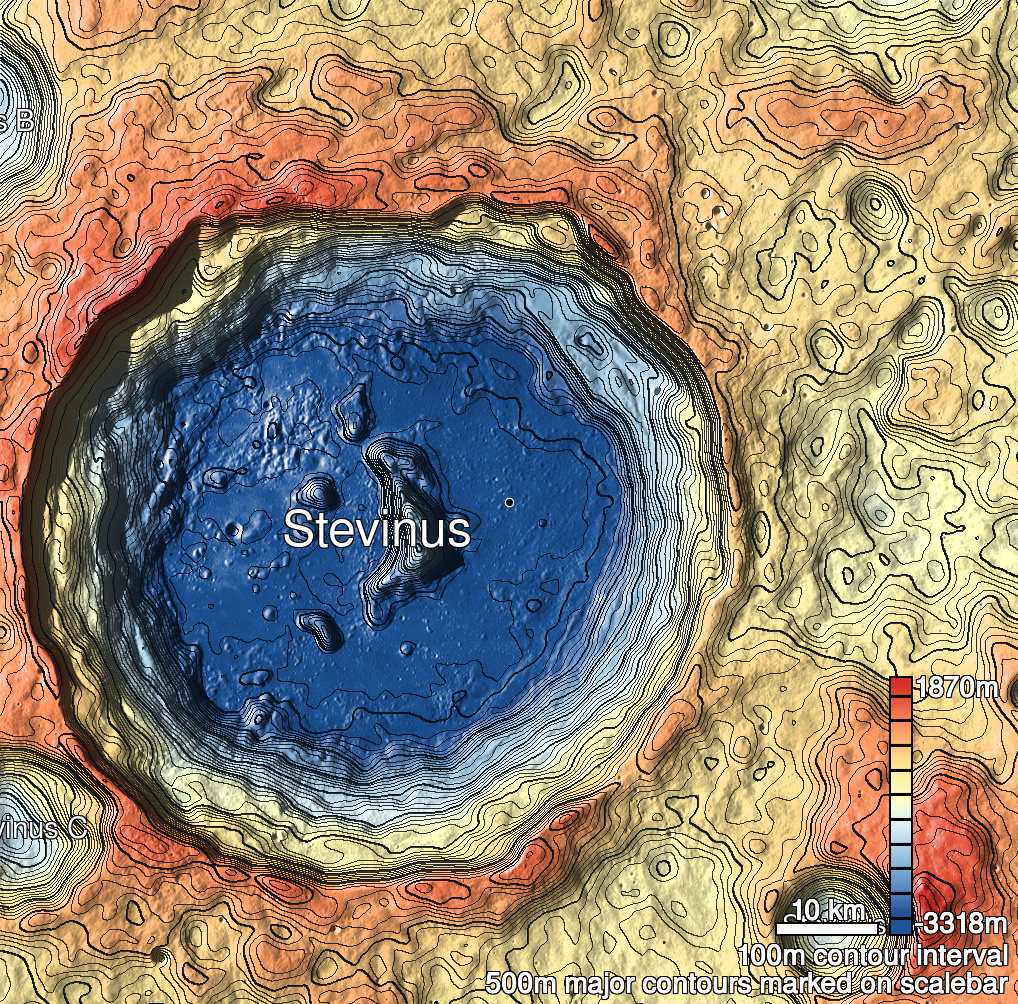

| Stevinus 6 Shaded Relief | |
|---|---|
 |
| M1164469403R | |
|---|---|
 |
|
| Line | 49735 |
| Sample | 1643 |
| Inc. Angle | 31.58 |
| Emission Angle | 0.66 |
| Time | 11.76 |
| Resolution | 0.84 |
| M124212055R | |
|---|---|
 |
|
| Inc. Angle | -34.0 |
| Emission Angle | -0.09 |
| Time | 12.21 |
| Resolution | 0.42 |
| M154873550L | |
|---|---|
 |
|
| Inc. Angle | -35.05 |
| Emission Angle | 2.47 |
| Time | 12.63 |
| Resolution | 0.41 |
| Stevinus 6 Stereo |
|---|
 |
