Pits Atlas: Stevinus 9a
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 9a |
| Lat. | -32.9401 |
| Long. | 54.7446 |
| Desc. | Round pit with vertical walls and flat floor. There is a much deeper section on the E side of the floor (Stevinus 9b). The S wall may have a slope from the rim to the Stevinus 9a section of the pit. Stevinus 10 is ~200m west, otherwise no nearby features of note. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 13 |
| Funnel Max. Diam. | 22 |
| Inner Min. Diam. | 7 |
| Inner Max. Diam. | 7 |
| Azimuth | 145 |
| Depth | 6.0 |
| Depth 1 | 5.2 |
| Depth 2 | 6.5 |
| Depth 3 | 5.6 |
| Best Stereo Left | M1105574923R |
| Best Stereo Right | M1105574923R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Numbers not in parentheses are measured to lit floor/south wall slope, numbers in parentheses are measured through east-side shadow to SE rim. |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

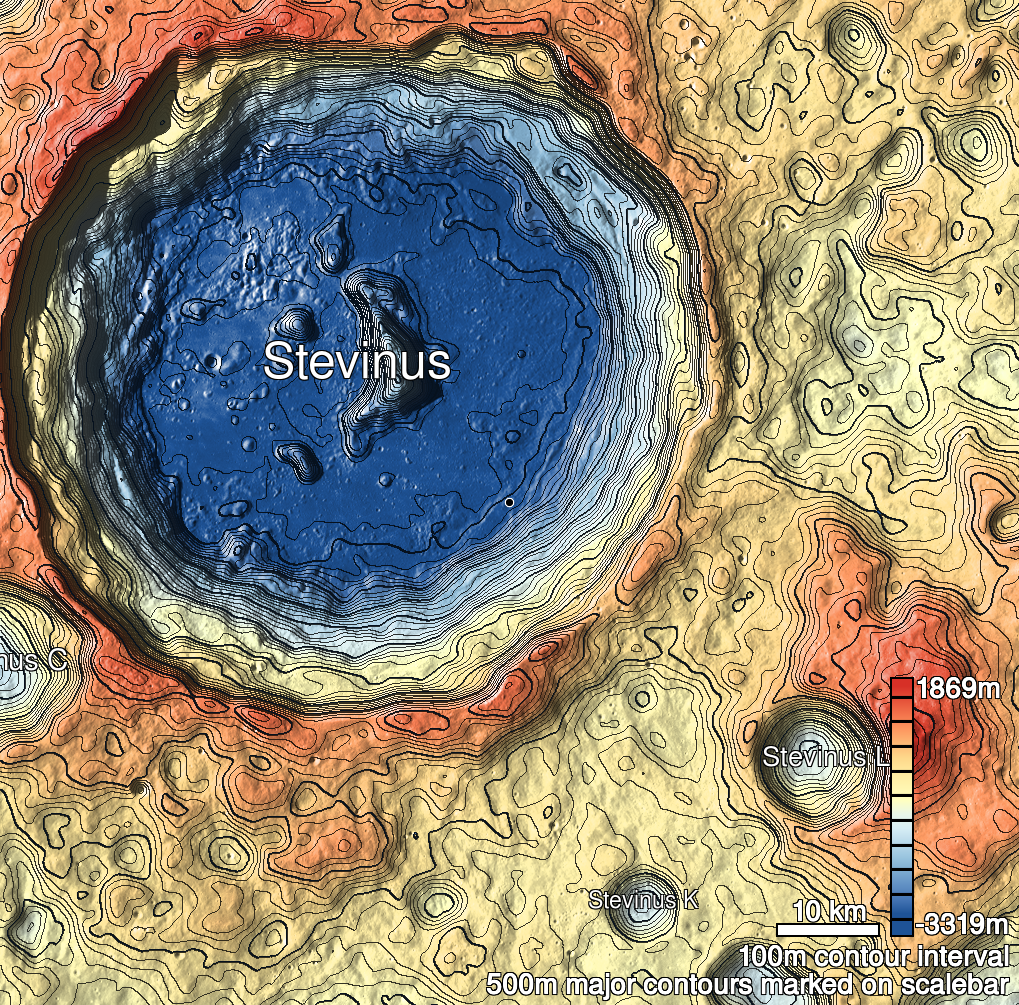

| Stevinus 9a Shaded Relief | |
|---|---|
 |

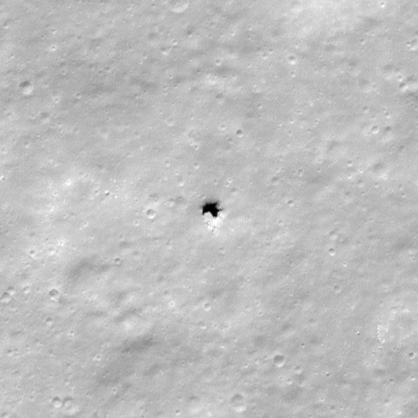

| M154873550R | |
|---|---|
 |
|
| Line | 8508 |
| Sample | 2545 |
| Inc. Angle | -35.61 |
| Emission Angle | -1.13 |
| Time | 12.63 |
| Resolution | 0.4 |

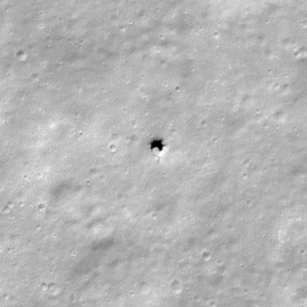

| M185518687L | |
|---|---|
 |
|
| Inc. Angle | -36.78 |
| Emission Angle | 2.65 |
| Time | 12.9 |
| Resolution | 0.64 |
| M1177392814L | |
|---|---|
 |
|
| Inc. Angle | -38.04 |
| Emission Angle | 0.55 |
| Time | 13.16 |
| Resolution | 0.64 |
| Stevinus 9a Stereo |
|---|
 |
