Pits Atlas: Stevinus 12
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 12 |
| Lat. | -32.3174 |
| Long. | 54.746 |
| Desc. | Elliptical pit with smooth flat floor. There are 3 4m boulders next to the S wall. No overhang exists to the east- wall is continuous to floor. Pit is at the intersection of a couple of subtle linear depressions (or maybe lies between ~4 PRFs). |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 24 |
| Funnel Max. Diam. | 30 |
| Inner Min. Diam. | 18 |
| Inner Max. Diam. | 24 |
| Azimuth | 100 |
| Depth | 7.0 |
| Depth 1 | 5.7 |
| Depth 2 | 6.1 |
| Depth 3 | 8.0 |
| Best Stereo Left | M1105574923L |
| Best Stereo Right | M1105574923L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths 1 and 2 are from western rim, Depth 3 is from eastern funnel. |
| Entrance Ramp | N |
| Overhang | N? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N? |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

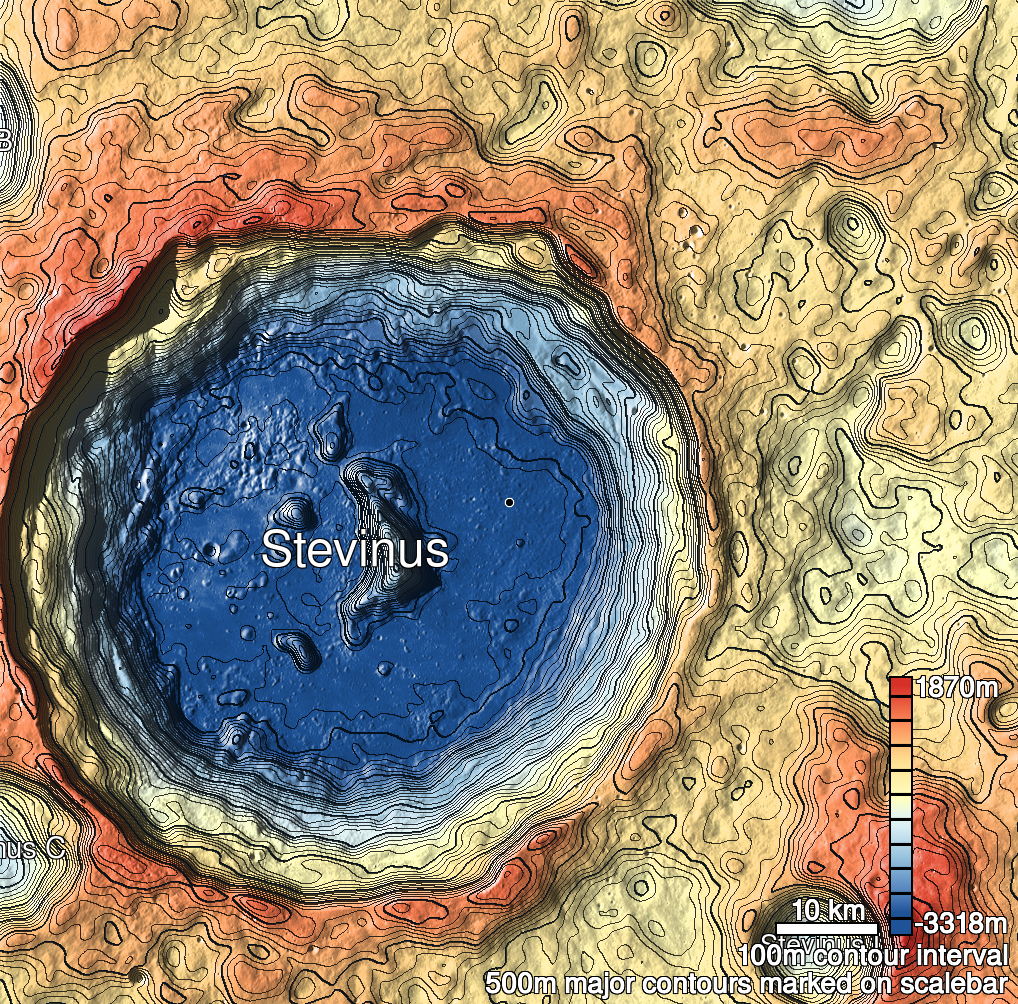

| Stevinus 12 Shaded Relief | |
|---|---|
 |
| M154873550R | |
|---|---|
 |
|
| Line | 42605 |
| Sample | 1796 |
| Inc. Angle | -35.01 |
| Emission Angle | -0.73 |
| Time | 12.63 |
| Resolution | 0.41 |
| M1177392814L | |
|---|---|
 |
|
| Inc. Angle | -37.5 |
| Emission Angle | 1.51 |
| Time | 13.16 |
| Resolution | 0.65 |
| M113596581L | |
|---|---|
 |
|
| Inc. Angle | 57.47 |
| Emission Angle | -2.35 |
| Time | 8.57 |
| Resolution | 0.59 |
| Stevinus 12 Stereo |
|---|
 |
