Pits Atlas: Stevinus 15
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 15 |
| Lat. | -32.3568 |
| Long. | 54.9433 |
| Desc. | Rectangular/irregular pit in an extremely (relatively) large funnel. There's a narrowing about 2/3rds of the way to the NE wall, and the floor slopes up in that direction to a very short vertical wall most of the way up the funnel that prevents true traversability. No features of note nearby. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 34 |
| Funnel Max. Diam. | 42 |
| Inner Min. Diam. | 11 |
| Inner Max. Diam. | 18 |
| Azimuth | 40 |
| Depth | 10.0 |
| Depth 1 | 9.2 |
| Depth 2 | 10.2 |
| Depth 3 | >8.0 |
| Best Stereo Left | M1218619638R |
| Best Stereo Right | M1218619638R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | Y? |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

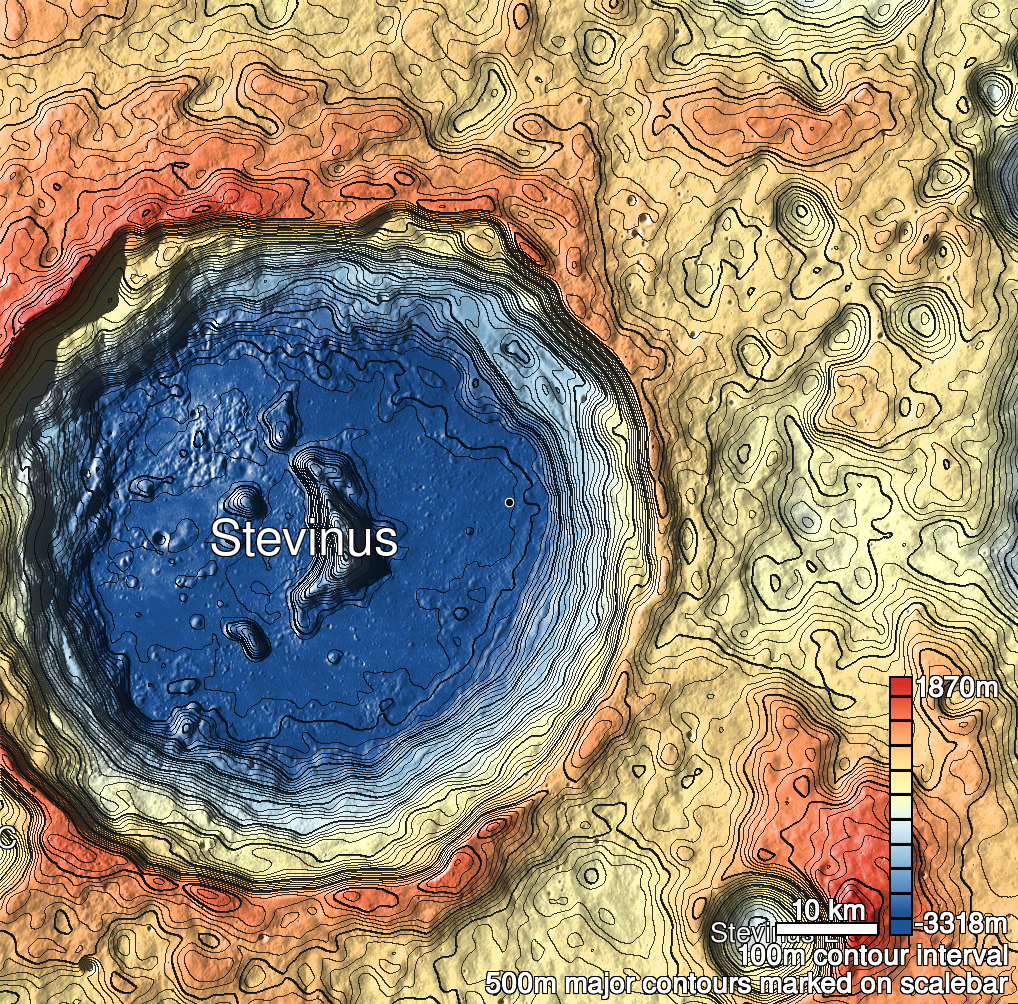

| Stevinus 15 Shaded Relief | |
|---|---|
 |
| M185518687R | |
|---|---|
 |
|
| Line | 37546 |
| Sample | 3128 |
| Inc. Angle | -36.31 |
| Emission Angle | -1.52 |
| Time | 12.92 |
| Resolution | 0.65 |
| M170206690L | |
|---|---|
 |
|
| Inc. Angle | -34.52 |
| Emission Angle | 1.67 |
| Time | 13.11 |
| Resolution | 0.57 |
| M128929066L | |
|---|---|
 |
|
| Inc. Angle | 58.23 |
| Emission Angle | -2.32 |
| Time | 8.63 |
| Resolution | 0.42 |
| Stevinus 15 Stereo |
|---|
 |
