Pits Atlas: Stevinus 16
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 16 |
| Lat. | -32.1817 |
| Long. | 54.5943 |
| Desc. | Irregular pit. Appears to have a flat floor. No other collapses in the area, no PRFs, no suspicious depressions. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 23 |
| Funnel Max. Diam. | 28 |
| Inner Min. Diam. | 13 |
| Inner Max. Diam. | 17 |
| Azimuth | 115 |
| Depth | 11.0 |
| Depth 1 | 9.1 |
| Depth 2 | 11.1 |
| Depth 3 | 12.9 |
| Best Stereo Left | M1105574923R |
| Best Stereo Right | M1105574923R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

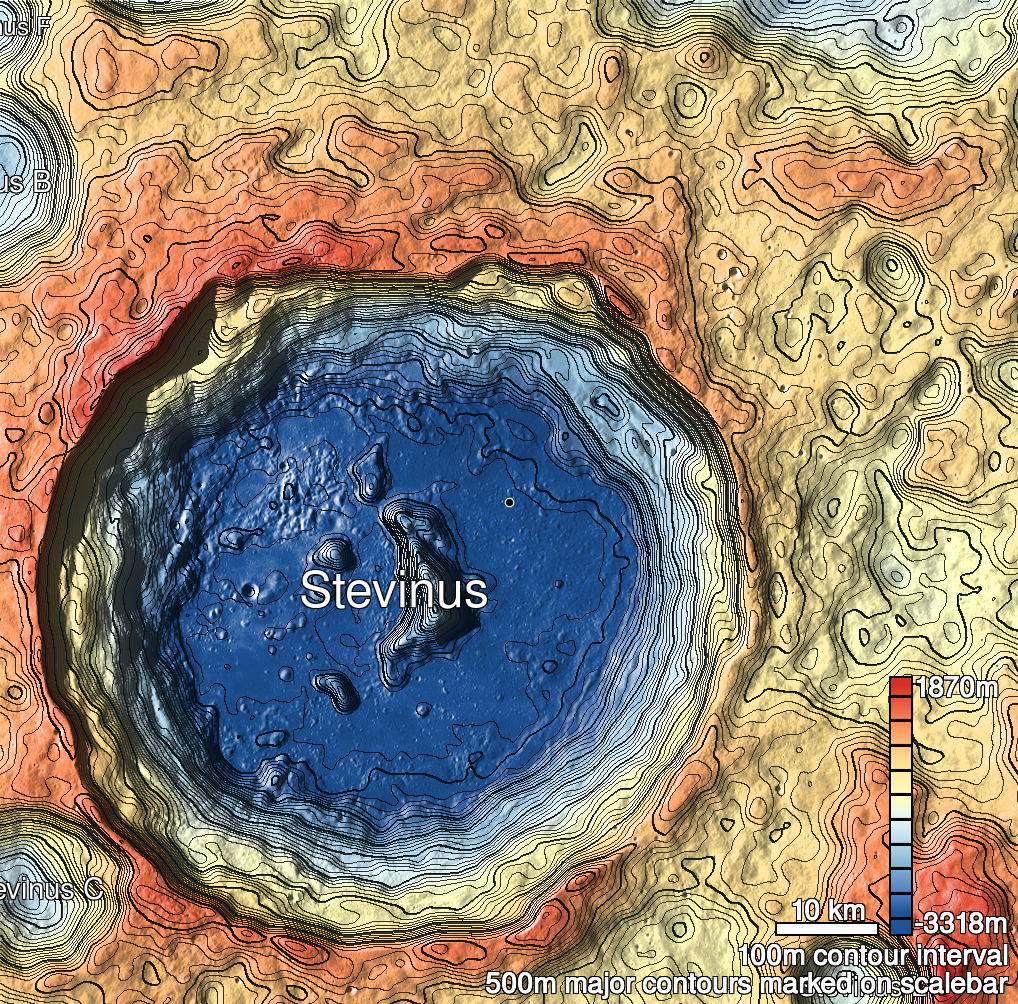

| Stevinus 16 Shaded Relief | |
|---|---|
 |
| M1149138828R | |
|---|---|
 |
|
| Line | 6282 |
| Sample | 1410 |
| Inc. Angle | 34.55 |
| Emission Angle | 0.52 |
| Time | 11.33 |
| Resolution | 0.62 |
| M1116158959L | |
|---|---|
 |
|
| Inc. Angle | -37.29 |
| Emission Angle | 2.37 |
| Time | 13.12 |
| Resolution | 0.6 |
| M1131495601R | |
|---|---|
 |
|
| Inc. Angle | -37.84 |
| Emission Angle | -2.29 |
| Time | 13.57 |
| Resolution | 0.79 |
| Stevinus 16 Stereo |
|---|
 |
