Pits Atlas: Stevinus 17
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 17 |
| Lat. | -32.3695 |
| Long. | 53.6121 |
| Desc. | Squarish pit, SE wall appears to be a ramp from rim to interior. No floor visible. No other collapses in area, no obvious PRFs. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 14 |
| Funnel Max. Diam. | 18 |
| Inner Min. Diam. | 4 |
| Inner Max. Diam. | 5 |
| Azimuth | 30 |
| Depth | 7.0 |
| Depth 1 | 7.0 |
| Depth 2 | >6.0 |
| Depth 3 | >5.0 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths 2 and 3 are from funnel to funnel, not rim. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N? |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N? |
| Colinear Fractures | N |

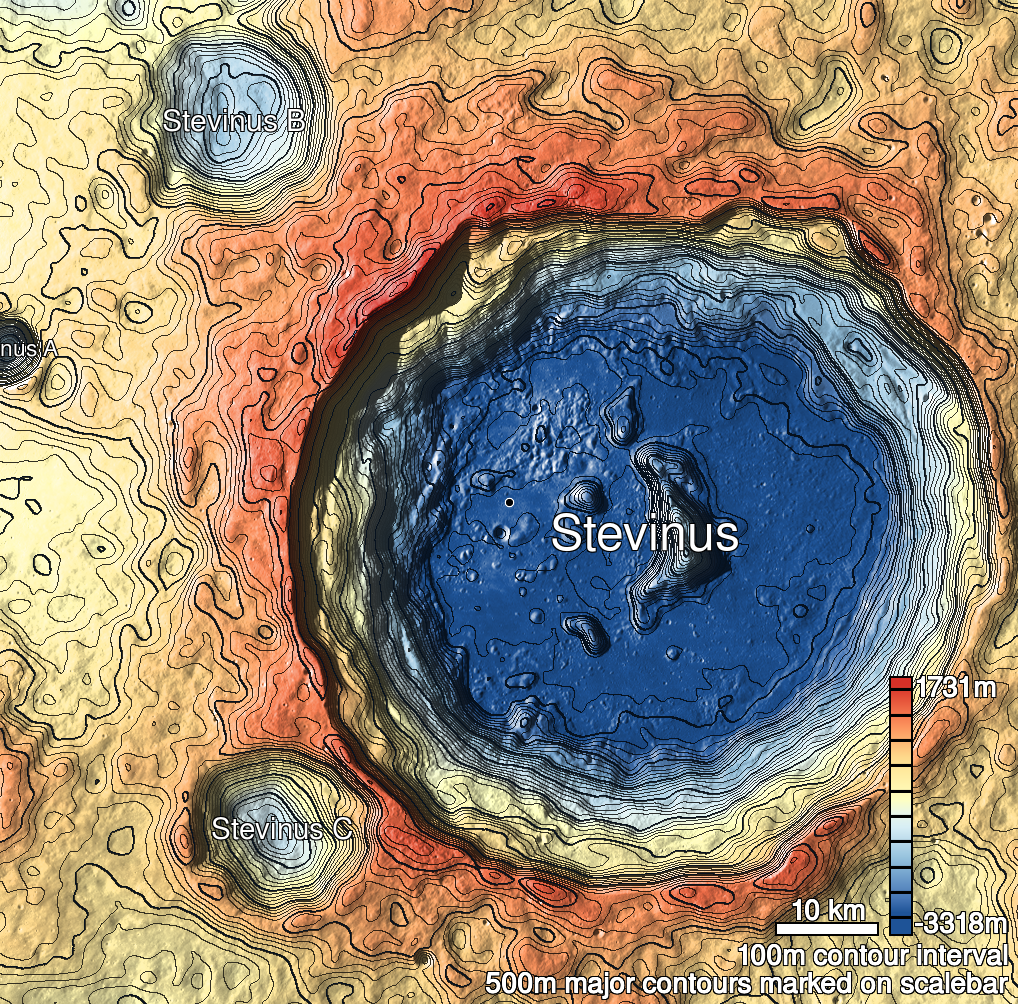

| Stevinus 17 Shaded Relief | |
|---|---|
 |
| M1177399921L | |
|---|---|
 |
|
| Line | 28911 |
| Sample | 1757 |
| Inc. Angle | -37.49 |
| Emission Angle | 2.17 |
| Time | 13.15 |
| Resolution | 0.65 |
| M113603383R | |
|---|---|
 |
|
| Inc. Angle | 57.63 |
| Emission Angle | 0.73 |
| Time | 8.56 |
| Resolution | 0.59 |
| M1138568830R | |
|---|---|
 |
|
| Inc. Angle | 64.47 |
| Emission Angle | 1.16 |
| Time | 8.06 |
| Resolution | 0.77 |
