Pits Atlas: Stevinus 18
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 18 |
| Lat. | -32.1226 |
| Long. | 54.8746 |
| Desc. | Irregular pit. South wall might be a ramp from rim to floor. There's a small collapse ~90m ENE (~4x3x2m), and a tiny collapse-looking dark spot 18m SE. There appears to be a linear depression running ESE from the pit, and a subtle ridge running WNW from it. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 13 |
| Funnel Max. Diam. | 21 |
| Inner Min. Diam. | 9 |
| Inner Max. Diam. | 9 |
| Azimuth | 140 |
| Depth | 6.0 |
| Depth 1 | 5.9 |
| Depth 2 | 6.9 |
| Depth 3 | 5.8 |
| Best Stereo Left | M1105574923L |
| Best Stereo Right | M1105574923L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M128929066R |
| Data Warning | |
| Entrance Ramp | N? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

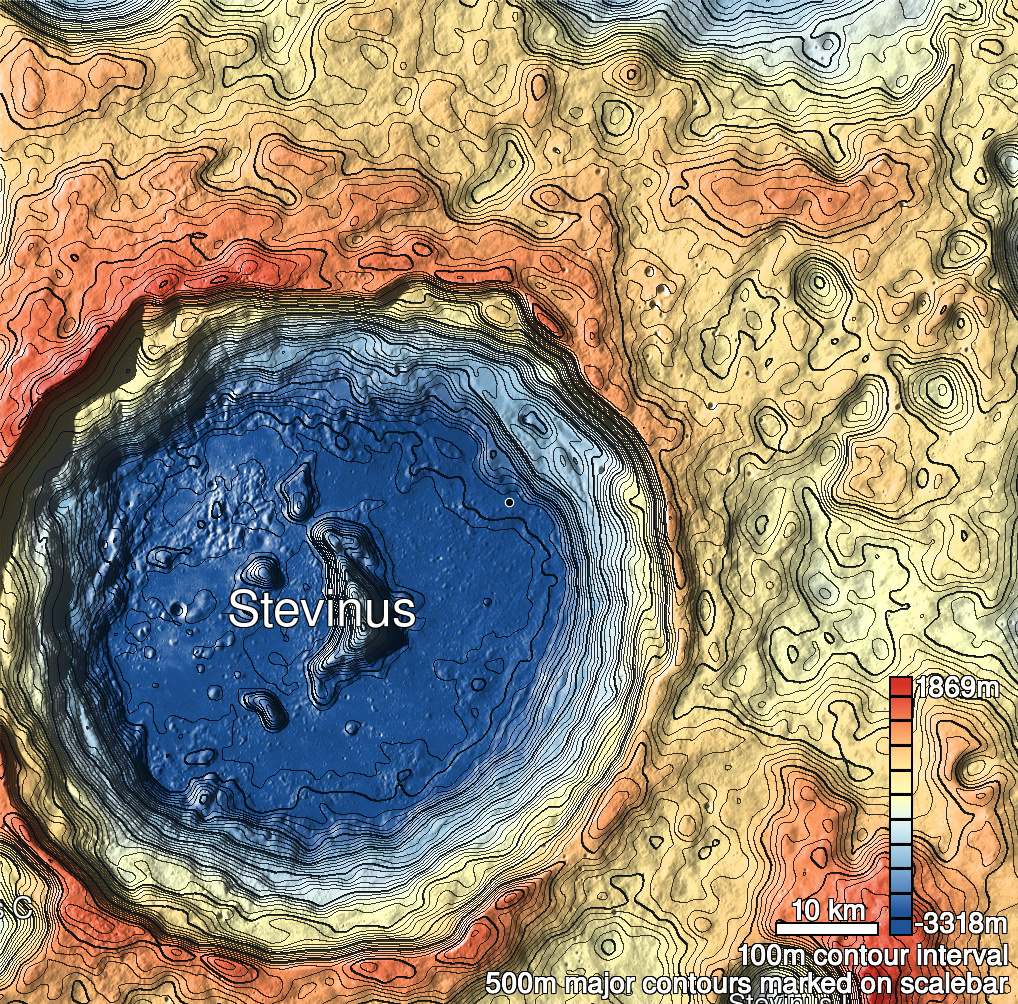

| Stevinus 18 Shaded Relief | |
|---|---|
 |
| M1133848318R | |
|---|---|
 |
|
| Line | 51737 |
| Sample | 3594 |
| Inc. Angle | 31.2 |
| Emission Angle | 1.82 |
| Time | 11.75 |
| Resolution | 0.79 |
| M185518687L | |
|---|---|
 |
|
| Inc. Angle | -36.07 |
| Emission Angle | 0.28 |
| Time | 12.91 |
| Resolution | 0.65 |
| M1162113981R | |
|---|---|
 |
|
| Inc. Angle | -37.95 |
| Emission Angle | -2.0 |
| Time | 13.58 |
| Resolution | 0.84 |
| Stevinus 18 Stereo |
|---|
 |
