Pits Atlas: Adams B 3
| Impact Melt pit: Adams B | |
|---|---|
| Name | Adams B 3 |
| Lat. | -31.2886 |
| Long. | 65.7523 |
| Desc. | NW/SE trending cliff/fracture/narrow pit in a linear depression. South wall appears to be a slope. Some additional depressions for ~50 m SE. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Adams B |
| Funnel Min. Diam. | 17 |
| Funnel Max. Diam. | 38 |
| Inner Min. Diam. | N/A |
| Inner Max. Diam. | 14 |
| Azimuth | 135 |
| Depth | 2.0 |
| Depth 1 | 2.6 |
| Depth 2 | 2.7 |
| Depth 3 | 2.0 |
| Best Stereo Left | M1169111410R |
| Best Stereo Right | M1169111410R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Multiple stereo triplets and temporal pairs, very little lighting variation |
| Entrance Ramp | ? |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y? |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | Y |
| Colinear Fractures | N |

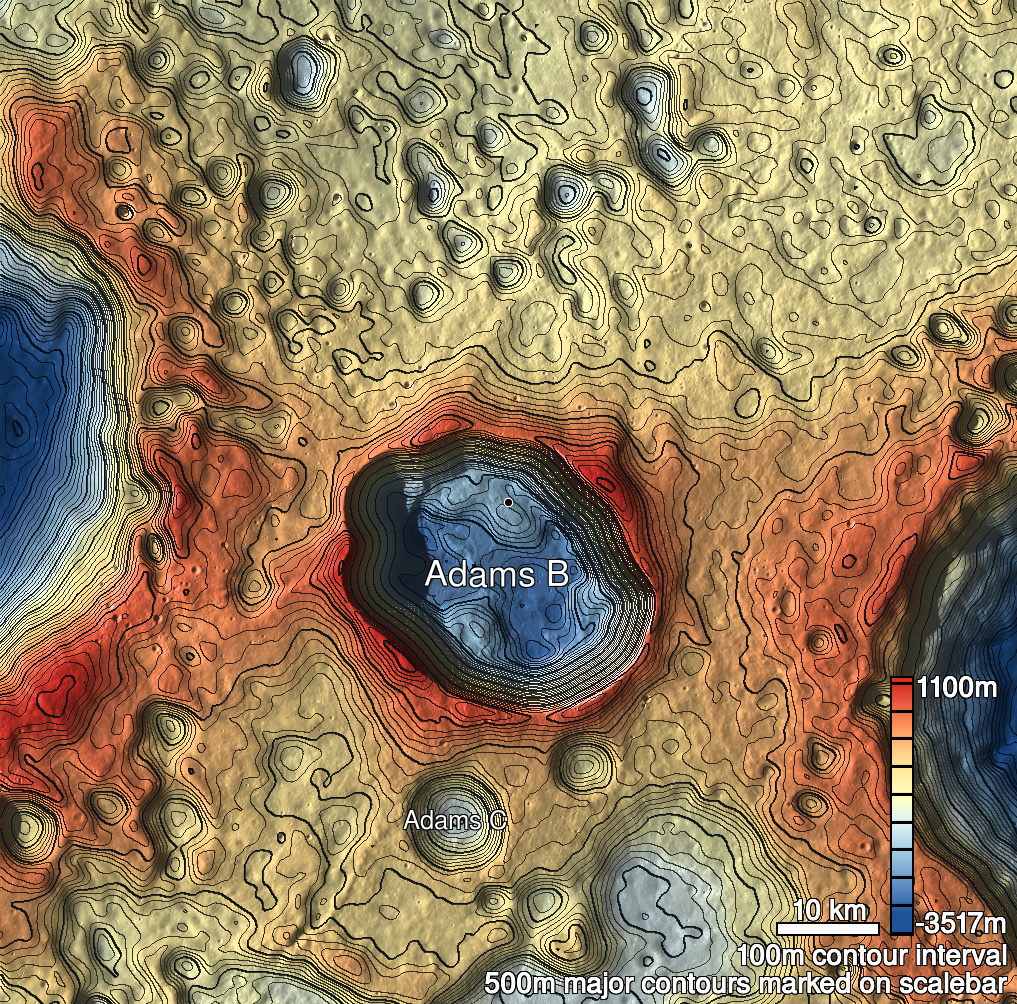

| Adams B 3 Shaded Relief | |
|---|---|
 |
| M126499815L | |
|---|---|
 |
|
| Line | 19935 |
| Sample | 2130 |
| Inc. Angle | 39.34 |
| Emission Angle | -1.95 |
| Time | 10.47 |
| Resolution | 0.42 |
| M1149067652L | |
|---|---|
 |
|
| Inc. Angle | 33.42 |
| Emission Angle | -2.28 |
| Time | 11.4 |
| Resolution | 0.68 |
| M187806127L | |
|---|---|
 |
|
| Inc. Angle | 34.84 |
| Emission Angle | -0.6 |
| Time | 11.14 |
| Resolution | 0.69 |
| Adams B 3 Stereo |
|---|
 |
