Pits Atlas: Stevinus 22
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 22 |
| Lat. | -32.9349 |
| Long. | 53.9595 |
| Desc. | Wide shallow pit. Floor is bowl-shaped. SW corner of floor almost reaches rim, but not quite. There is a 20x15m collapse, ~4m deep, 180m to the E, which only has N and S walls- the E and W are slopes from surroundings to floor. There are a couple of other depressions in line with these two pits, although they could be degraded impact craters. The eastern collapse is at the S foot of a PRF, but Stevinus 22 is not adjacent to that PRF, though it is in a possible valley between two PRFs. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 41 |
| Funnel Max. Diam. | 44 |
| Inner Min. Diam. | 35 |
| Inner Max. Diam. | 38 |
| Azimuth | 40 |
| Depth | 9.0 |
| Depth 1 | 7.1 |
| Depth 2 | 10.1 |
| Depth 3 | >8.0 |
| Best Stereo Left | M1157415551R |
| Best Stereo Right | M1157415551R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 2 is from funnel to center of floor. Long axis is ~perpendicular to obvious depression trend. Stereo is accidental, and may not be useful for anything other than manual viewing. |
| Entrance Ramp | N? |
| Overhang | ? |
| Nearby Pits? | N? |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | Y? |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

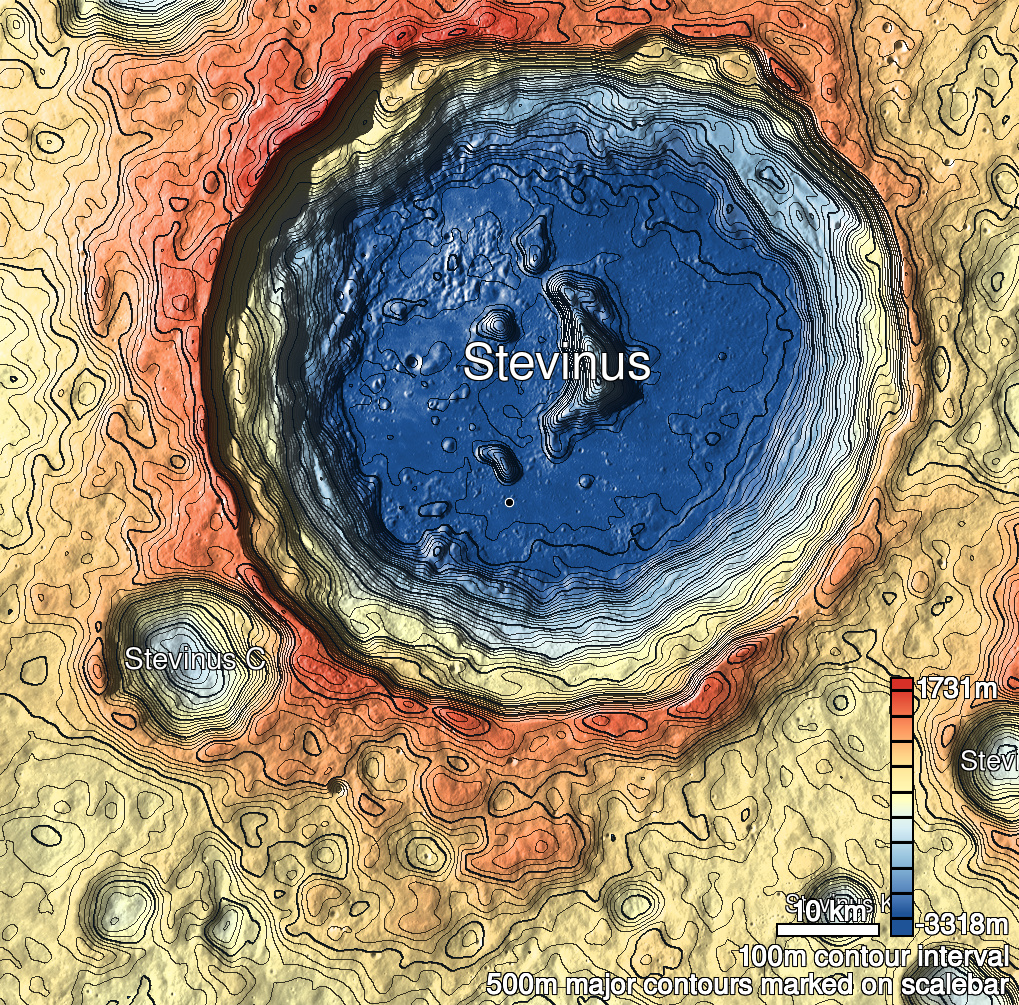

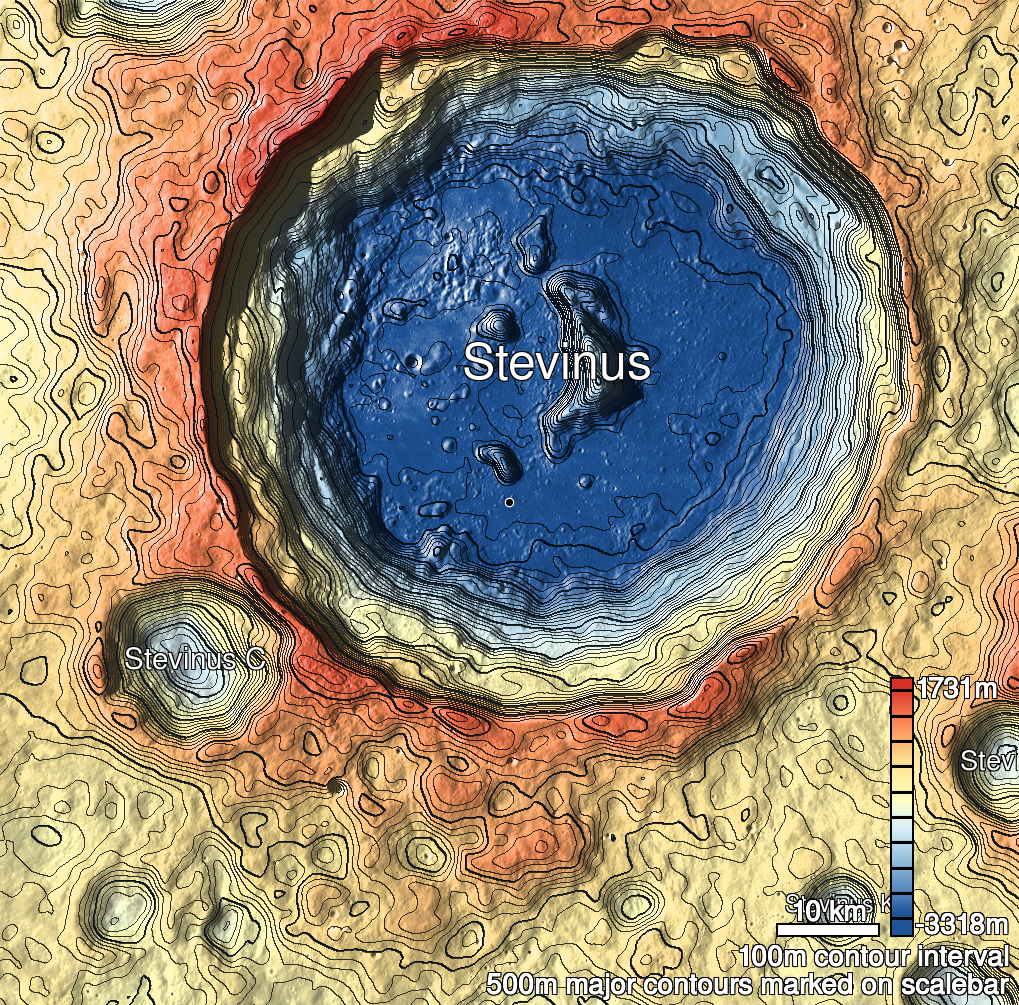

| Stevinus 22 Shaded Relief | |
|---|---|
 |
| M170213482L | |
|---|---|
 |
|
| Line | 49558 |
| Sample | 3306 |
| Inc. Angle | -35.01 |
| Emission Angle | 1.25 |
| Time | 13.1 |
| Resolution | 0.57 |
| M104162457L | |
|---|---|
 |
|
| Inc. Angle | -61.93 |
| Emission Angle | 1.43 |
| Time | 15.75 |
| Resolution | 0.85 |
| M1142076438L | |
|---|---|
 |
|
| Inc. Angle | -78.05 |
| Emission Angle | 2.99 |
| Time | 16.99 |
| Resolution | 0.88 |
| Stevinus 22 Stereo |
|---|
 |
