Pits Atlas: Stevinus 24
| Uncertain, Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 24 |
| Lat. | -32.7823 |
| Long. | 54.2992 |
| Desc. | Probable pit. Appears to have vertical wall on the east side, but other sides are just funnel. ~10m south of a 15m diameter impact crater. No other depressions or PRFs of note in the area. |
| Types | Uncertain |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 12 |
| Funnel Max. Diam. | 12 |
| Inner Min. Diam. | N/A |
| Inner Max. Diam. | N/A |
| Azimuth | 0 |
| Depth | 4.0 |
| Depth 1 | 4.4 |
| Depth 2 | >11.0 |
| Depth 3 | >3.0 |
| Best Stereo Left | M174929871L |
| Best Stereo Right | M174929871L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depths 2 and 3 are from funnel to funnel. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

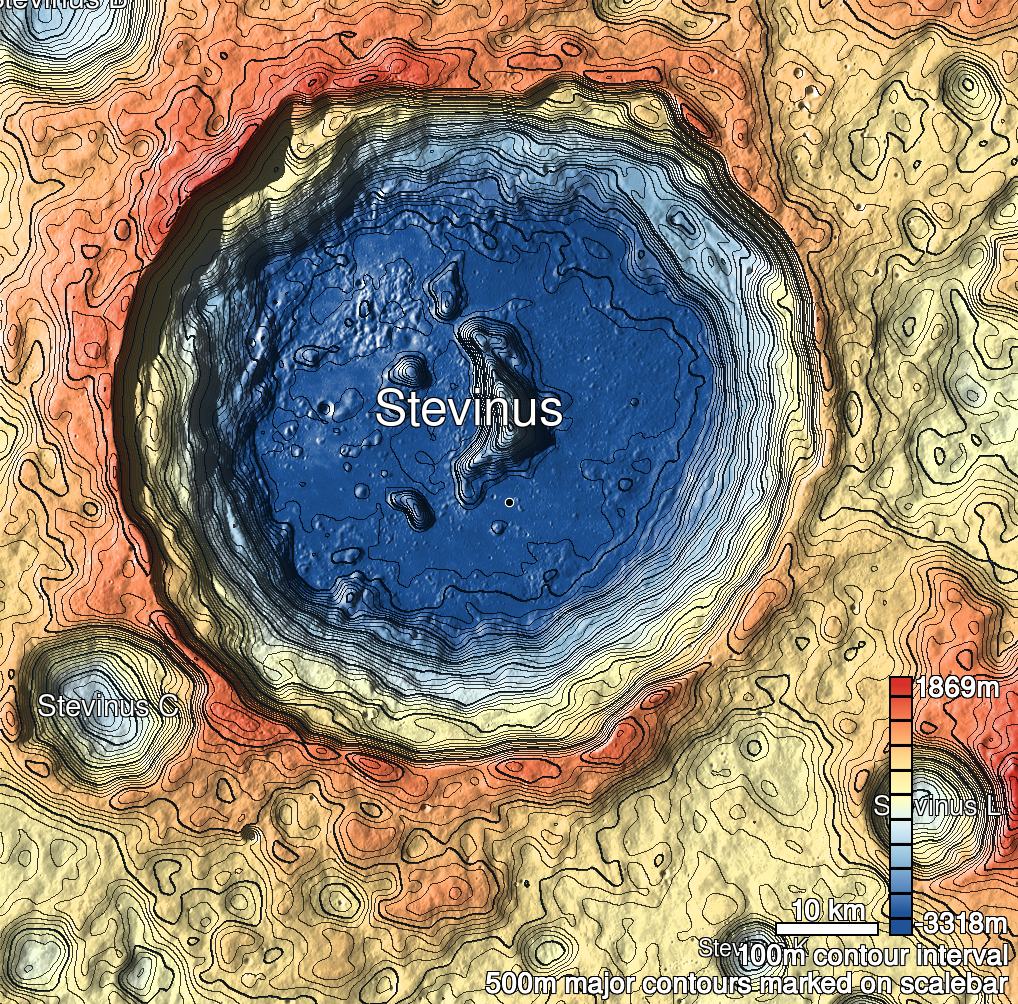

| Stevinus 24 Shaded Relief | |
|---|---|
 |
| M1136208157R | |
|---|---|
 |
|
| Line | 36667 |
| Sample | 4556 |
| Inc. Angle | 43.64 |
| Emission Angle | 2.39 |
| Time | 9.92 |
| Resolution | 0.78 |
| M1100860480L | |
|---|---|
 |
|
| Inc. Angle | -36.91 |
| Emission Angle | 2.7 |
| Time | 13.39 |
| Resolution | 0.8 |
| M180808072R | |
|---|---|
 |
|
| Inc. Angle | -73.63 |
| Emission Angle | -2.06 |
| Time | 16.65 |
| Resolution | 0.98 |
| Stevinus 24 Stereo |
|---|
 |
