Pits Atlas: Stevinus 25
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 25 |
| Lat. | -32.7393 |
| Long. | 54.2171 |
| Desc. | Round pit with an enormous funnel relative to the inner pit. No floor is visible within the inner pit. Might be on N edge of a very large PRF- stereo is somewhat unclear without proper calibration. No other collapses in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 13 |
| Funnel Max. Diam. | 14 |
| Inner Min. Diam. | 4 |
| Inner Max. Diam. | 4 |
| Azimuth | 0 |
| Depth | 6.0 |
| Depth 1 | 6.0 |
| Depth 2 | 5.0 |
| Depth 3 | >3.0 |
| Best Stereo Left | M174929871R |
| Best Stereo Right | M174929871R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

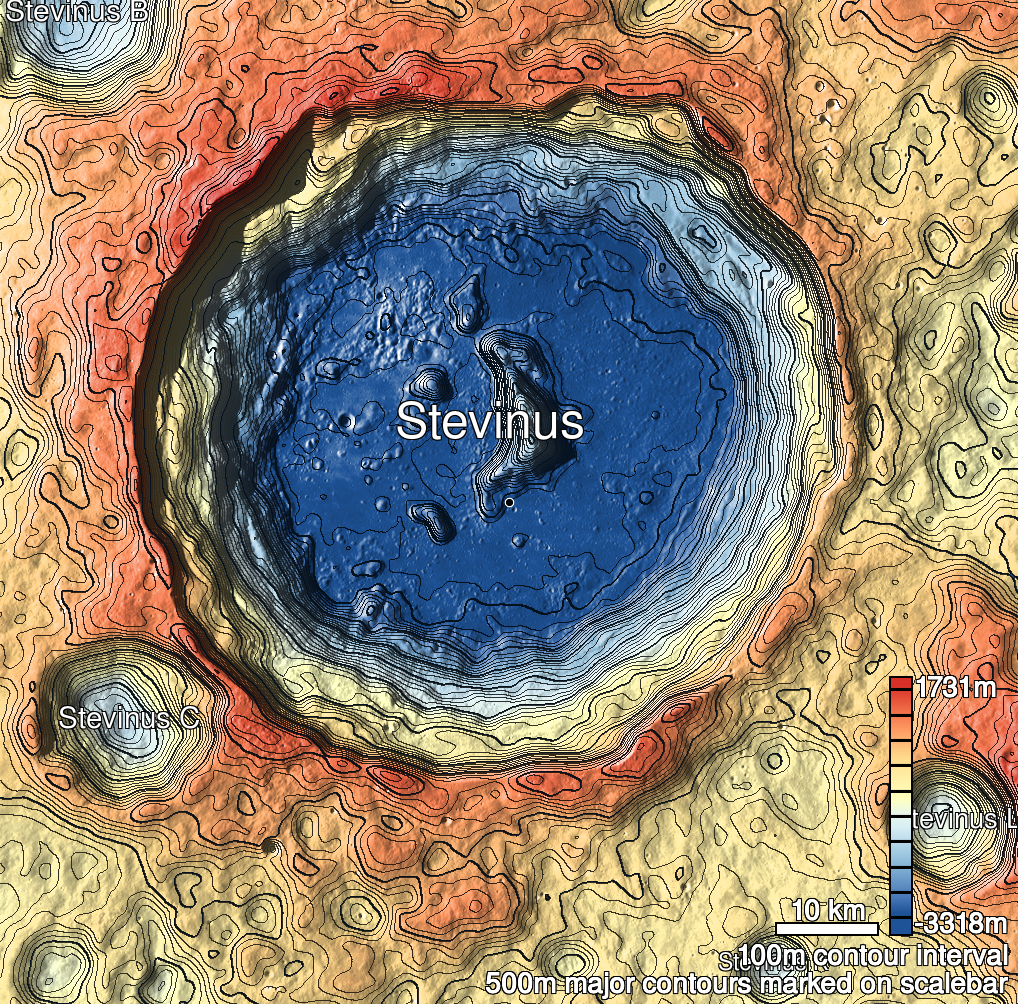

| Stevinus 25 Shaded Relief | |
|---|---|
 |
| M157234690R | |
|---|---|
 |
|
| Line | 14082 |
| Sample | 513 |
| Inc. Angle | 38.12 |
| Emission Angle | -0.08 |
| Time | 10.8 |
| Resolution | 0.39 |
| M111240262L | |
|---|---|
 |
|
| Inc. Angle | 38.47 |
| Emission Angle | -2.56 |
| Time | 10.4 |
| Resolution | 0.61 |
| M1190372454R | |
|---|---|
 |
|
| Inc. Angle | -55.49 |
| Emission Angle | -1.97 |
| Time | 15.26 |
| Resolution | 0.64 |
| Stevinus 25 Stereo |
|---|
 |
