Pits Atlas: Stevinus 26
| Impact Melt pit: Stevinus | |
|---|---|
| Name | Stevinus 26 |
| Lat. | -32.1328 |
| Long. | 54.865 |
| Desc. | Elliptical pit in a subtle N-S-trending linear depression. No visible floor. There is a pair(?) of tiny spots that appear to be ~1m and ~2m-diameter pits 135m to the W. No other obvious collapses or PRFs in the area. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Stevinus |
| Funnel Min. Diam. | 10 |
| Funnel Max. Diam. | 13 |
| Inner Min. Diam. | 3 |
| Inner Max. Diam. | 7 |
| Azimuth | 35 |
| Depth | >9.0 |
| Depth 1 | >9.0 |
| Depth 2 | >6.0 |
| Depth 3 | >8.0 |
| Best Stereo Left | M1105574923L |
| Best Stereo Right | M1105574923L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y? |
| Nearby Fractures? | N |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

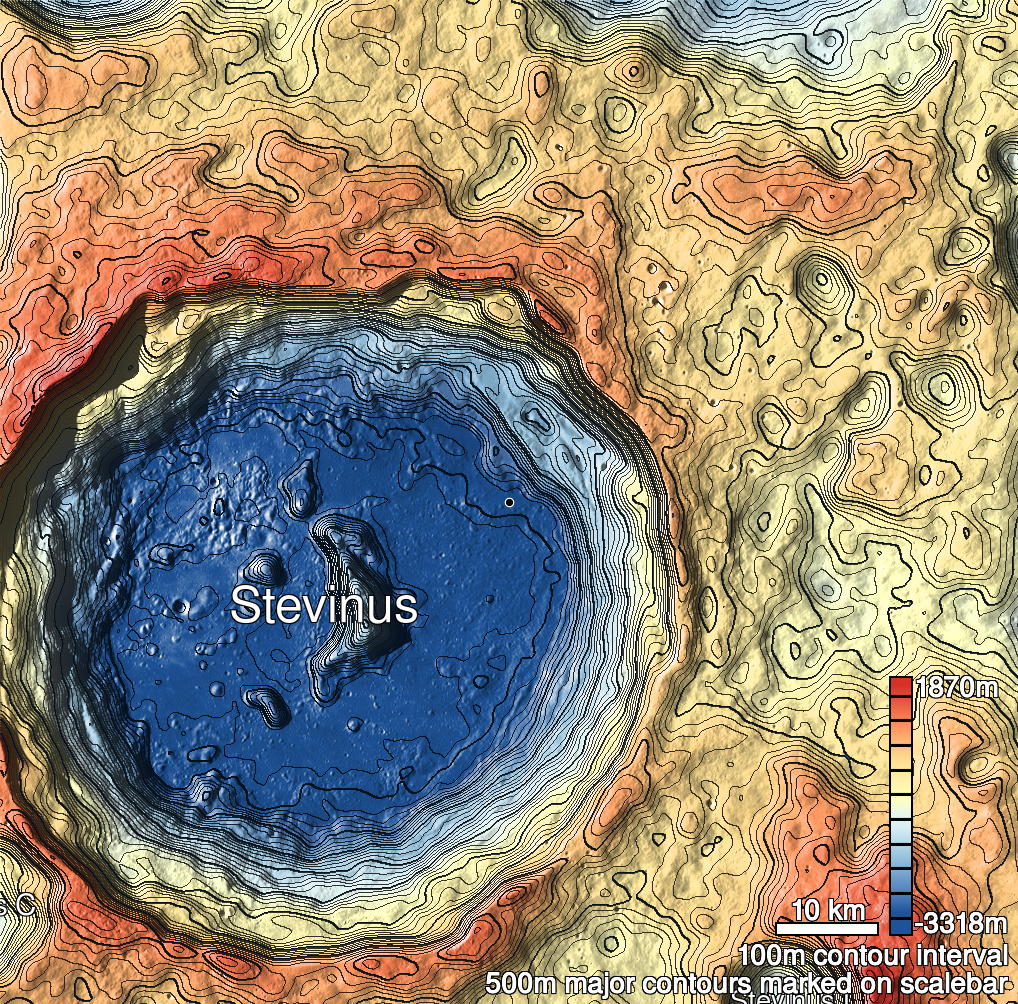

| Stevinus 26 Shaded Relief | |
|---|---|
 |
| M1133848318R | |
|---|---|
 |
|
| Line | 52083 |
| Sample | 3886 |
| Inc. Angle | 31.21 |
| Emission Angle | 2.01 |
| Time | 11.75 |
| Resolution | 0.79 |

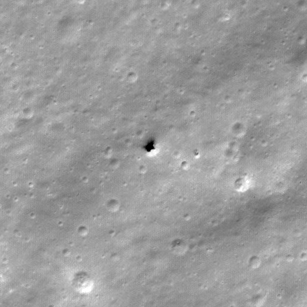

| M185518687L | |
|---|---|
 |
|
| Inc. Angle | -36.08 |
| Emission Angle | 0.49 |
| Time | 12.91 |
| Resolution | 0.65 |
| M1166822959R | |
|---|---|
 |
|
| Inc. Angle | 43.21 |
| Emission Angle | -0.2 |
| Time | 9.93 |
| Resolution | 0.81 |
| Stevinus 26 Stereo |
|---|
 |
