Pits Atlas: Tycho 2
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 2 |
| Lat. | -42.5978 |
| Long. | 347.8196 |
| Desc. | Semicircular pit, possibly fracture-associated (at corner between two small fractures' trends, and there's a depression/fracture running ~20m south). There's a larger series of fractures running N-S ~120m west. Possibly overhang visible in slewed image M188313427L, but don't have a good non-slewed comparison image. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 12 |
| Funnel Max. Diam. | 18 |
| Inner Min. Diam. | 6 |
| Inner Max. Diam. | 13 |
| Azimuth | 15 |
| Depth | 3.0 |
| Depth 1 | 2.7 |
| Depth 2 | >3.0 |
| Depth 3 | N/A |
| Best Stereo Left | M188320575L |
| Best Stereo Right | M188320575L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Funnel measure does not include connected fracture/depression. Depth from top of funnel is 6.4m in M1129575693L. |
| Entrance Ramp | N |
| Overhang | Y? |
| Nearby Pits? | Y? |
| Nearby Fractures? | Y |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | Y |

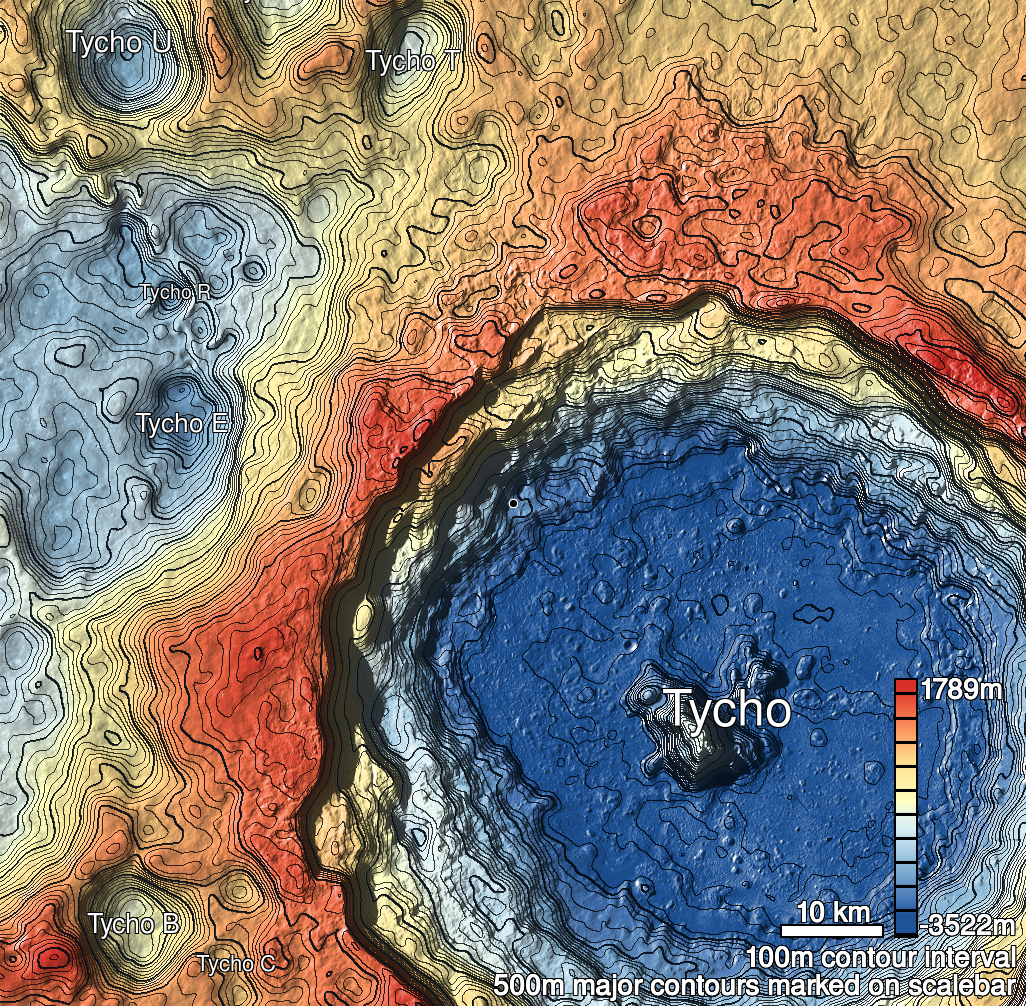

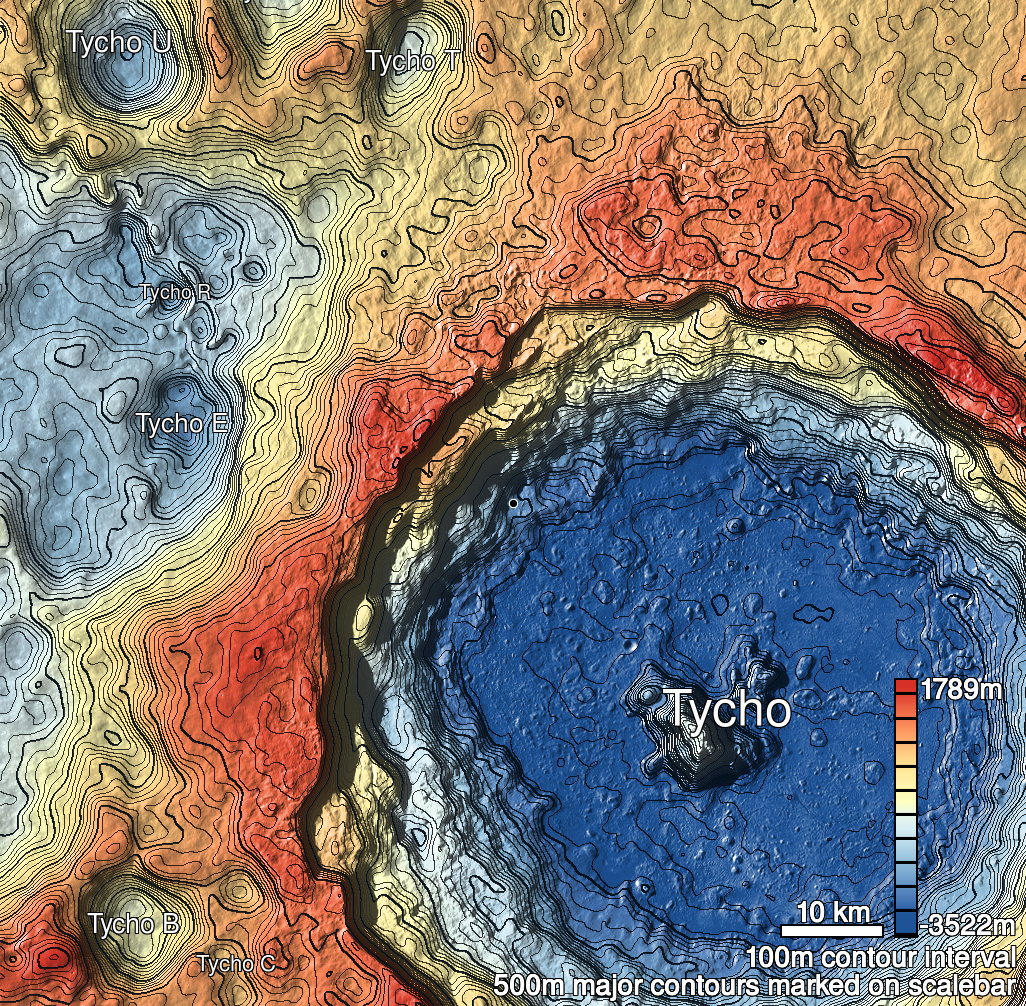

| Tycho 2 Shaded Relief | |
|---|---|
 |
| M1129575693L | |
|---|---|
 |
|
| Line | 14162 |
| Sample | 2799 |
| Inc. Angle | -57.44 |
| Emission Angle | 1.54 |
| Time | 15.0 |
| Resolution | 0.56 |
| M1154285311L | |
|---|---|
 |
|
| Inc. Angle | 75.4 |
| Emission Angle | -1.19 |
| Time | 7.3 |
| Resolution | 1.1 |
| Tycho 2 Stereo |
|---|
 |
