Pits Atlas: Tycho 3
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 3 |
| Lat. | -42.9449 |
| Long. | 347.7857 |
| Desc. | A curved pit with a very pronounced funnel. The floor/wall slopes evenly down from the north rim. Is at the top of a positive relief features, and is in line with three other collapse features ~120, ~180, and ~200m to the south. There is a large fracture-associated pit ~50m west, on the west edge of the host PRF. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 40 |
| Funnel Max. Diam. | 43 |
| Inner Min. Diam. | 9 |
| Inner Max. Diam. | 18 |
| Azimuth | 50 |
| Depth | >6.0 |
| Depth 1 | >6.0 |
| Depth 2 | >6.0 |
| Depth 3 | N/A |
| Best Stereo Left | M1182543691R |
| Best Stereo Right | M1182543691R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M188313427L, M188320575L |
| Data Warning | The only images that show the floor are part of a stereo pair. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | Y |
| Colinear Fractures | Y |

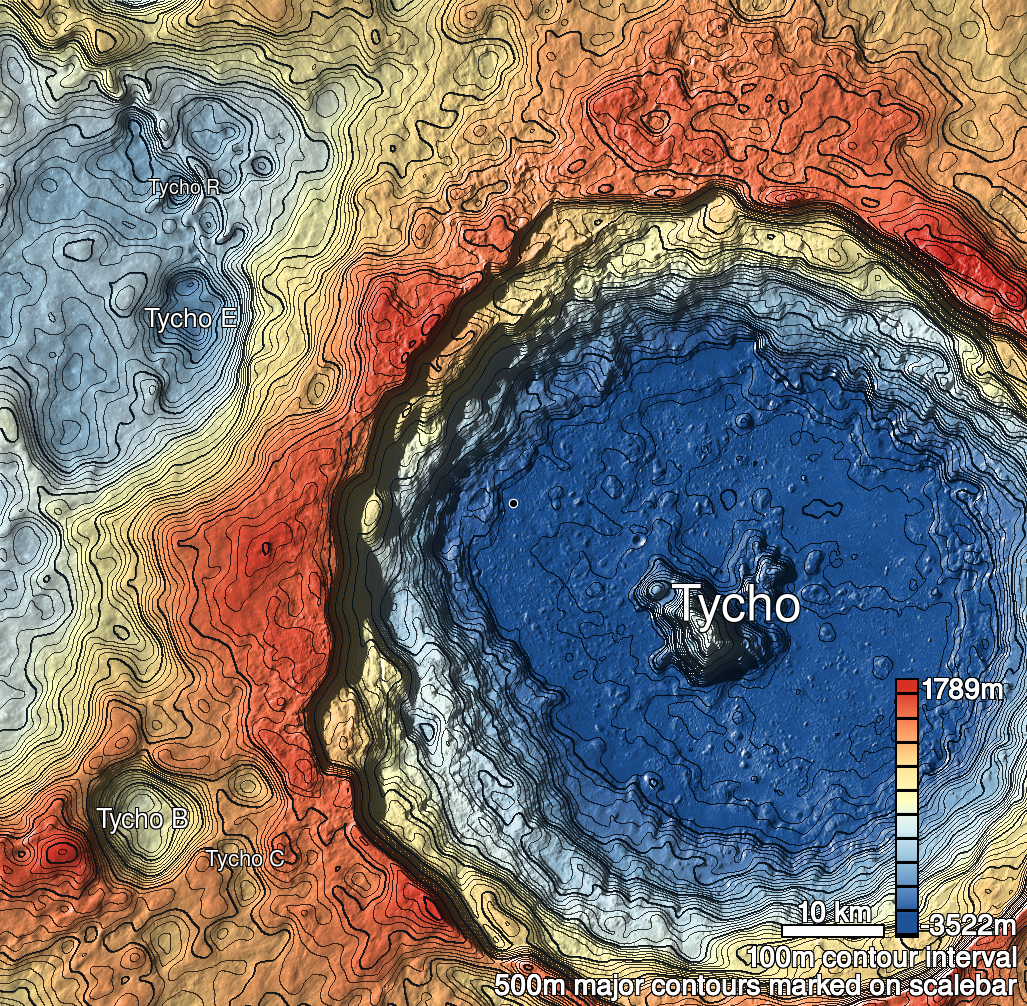

| Tycho 3 Shaded Relief | |
|---|---|
 |
| M183602781R | |
|---|---|
 |
|
| Line | 40111 |
| Sample | 4180 |
| Inc. Angle | -55.19 |
| Emission Angle | -2.15 |
| Time | 14.44 |
| Resolution | 0.67 |

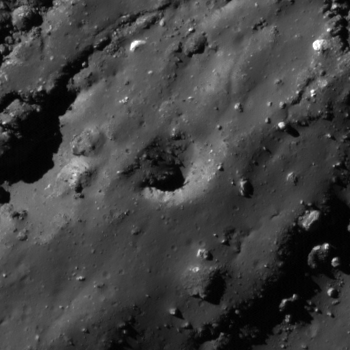

| M1129575693L | |
|---|---|
 |
|
| Inc. Angle | -57.61 |
| Emission Angle | 2.7 |
| Time | 15.0 |
| Resolution | 0.57 |
| Tycho 3 Stereo |
|---|
 |
