Pits Atlas: Tycho 5a
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 5a |
| Lat. | -42.6199 |
| Long. | 348.6332 |
| Desc. | Southwesternmost of a ~kilometer-long chain of pits and other collapses, and the only one in the line that does not have an obviously round-bottomed or mostly-filled-in floor (no floor is visible in available images?) . S wall may be steeply sloped, not truly vertical, or there may be a bit of floor visible in M139979870R. At the NE end of the chain, it turns into a series of fracture-associated pits. There is also a possible ~5m wide pit 25m east of this one, and Tycho 5e is out of the line of pits ~85m to the SE of Tycho 5a. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 35 |
| Funnel Max. Diam. | 54 |
| Inner Min. Diam. | 21 |
| Inner Max. Diam. | 31 |
| Azimuth | 70 |
| Depth | 22.0 |
| Depth 1 | 21.6 |
| Depth 2 | >23.0 |
| Depth 3 | N/A |
| Best Stereo Left | M1206074763R |
| Best Stereo Right | M1206074763R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M111661378L |
| Data Warning | |
| Entrance Ramp | Y? |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | N |
| Colinear Fractures | N |

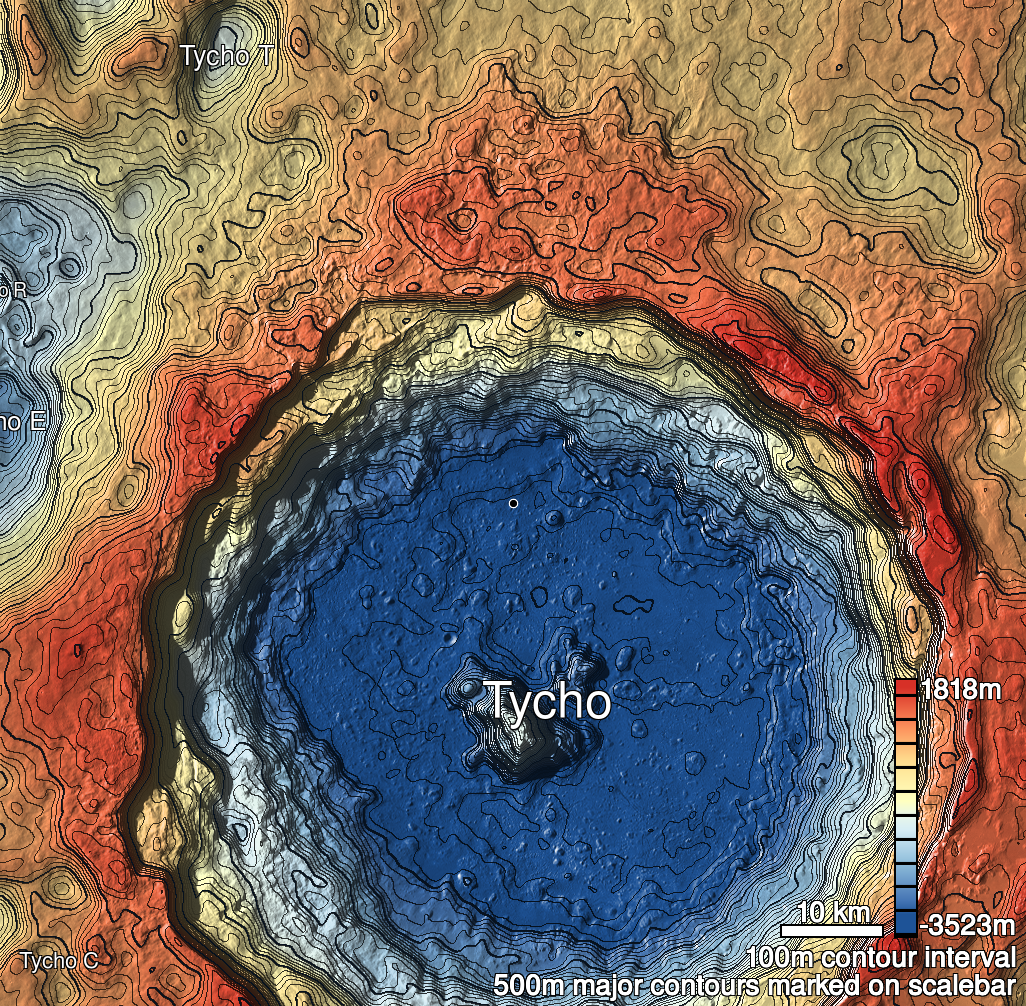

| Tycho 5a Shaded Relief | |
|---|---|
 |

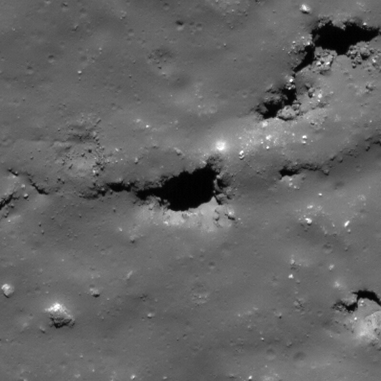

| M139979870R | |
|---|---|
 |
|
| Line | 15209 |
| Sample | 882 |
| Inc. Angle | -41.33 |
| Emission Angle | -0.22 |
| Time | 12.36 |
| Resolution | 0.5 |

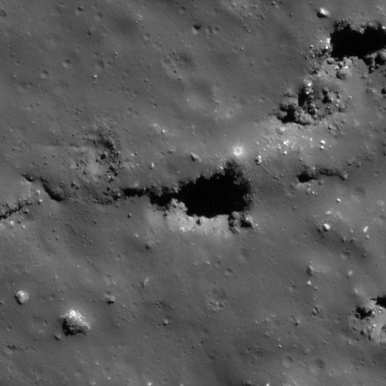

| M127008391L | |
|---|---|
 |
|
| Inc. Angle | 50.91 |
| Emission Angle | -0.02 |
| Time | 10.11 |
| Resolution | 0.49 |

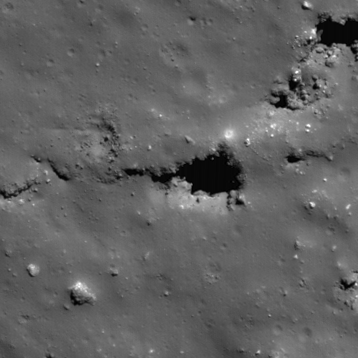

| M111661378L | |
|---|---|
 |
|
| Inc. Angle | 49.22 |
| Emission Angle | 15.16 |
| Time | 9.98 |
| Resolution | 0.57 |

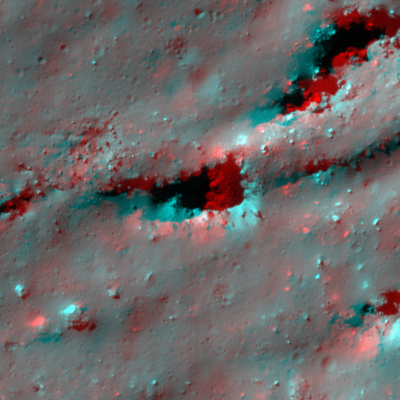

| Tycho 5a Stereo |
|---|
 |
