Pits Atlas: Tycho 6
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 6 |
| Lat. | -42.8894 |
| Long. | 349.3296 |
| Desc. | Small, triangular flat-floored, vertical-walled pit. 5m fractures from E and W ends. Lots of curved depressions and little collapses around. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 27 |
| Funnel Max. Diam. | 30 |
| Inner Min. Diam. | 19 |
| Inner Max. Diam. | 20 |
| Azimuth | 120 |
| Depth | 7.0 |
| Depth 1 | 8.6 |
| Depth 2 | 8.4 |
| Depth 3 | 4.3 |
| Best Stereo Left | M1164903641L |
| Best Stereo Right | M1164903641L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 3 is from further south on the floor than Depths 1 and 2. The floor may slope up towards the south. Stereo is accidental, and may on work for manual viewing. |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | N? |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N? |
| Beside Dome | N? |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

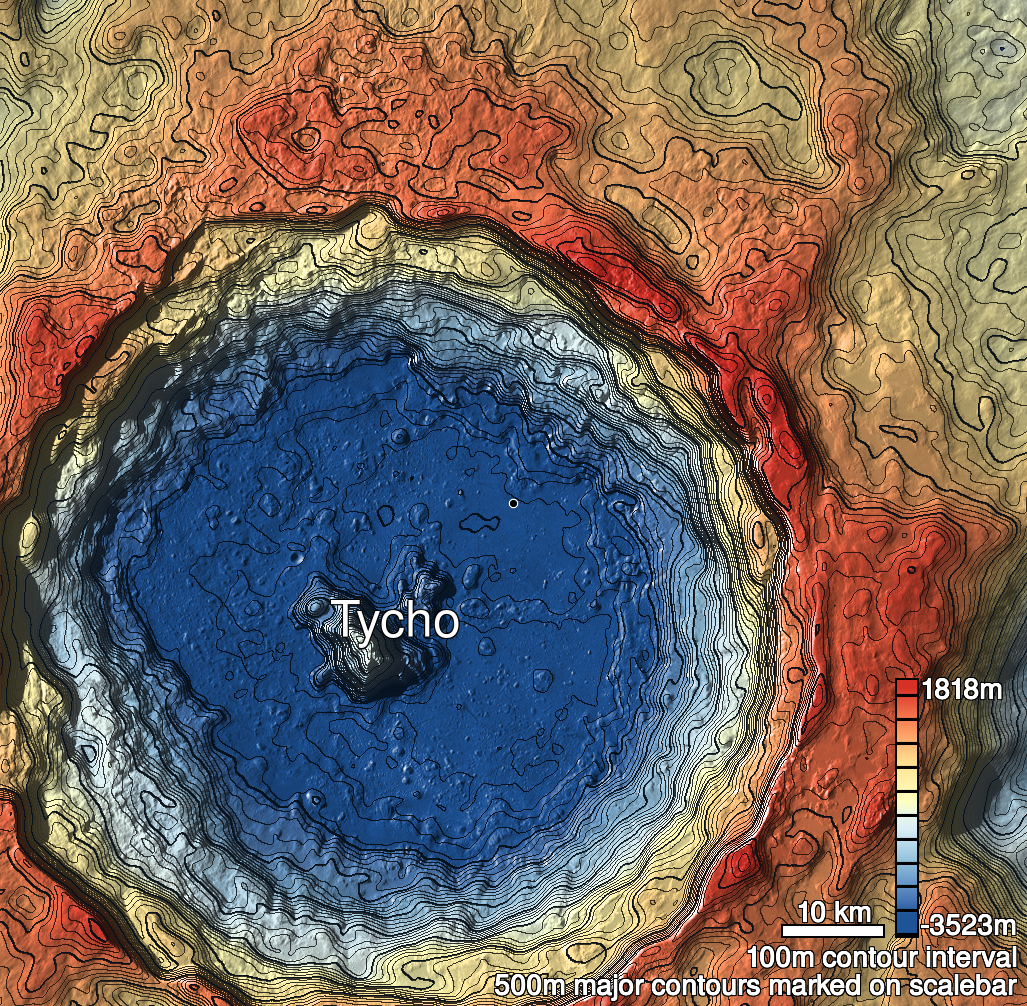

| Tycho 6 Shaded Relief | |
|---|---|
 |

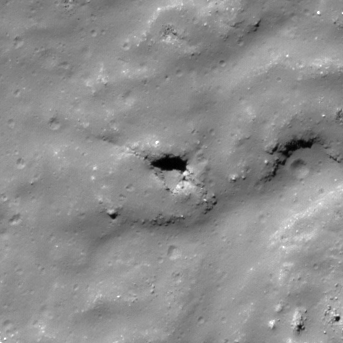

| M1131922380L | |
|---|---|
 |
|
| Line | 27258 |
| Sample | 3871 |
| Inc. Angle | -44.59 |
| Emission Angle | 0.9 |
| Time | 13.23 |
| Resolution | 0.57 |

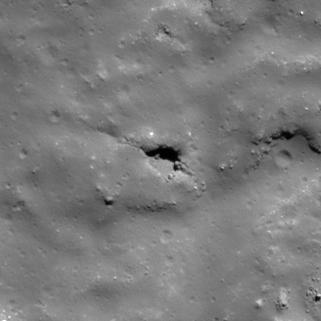

| M1118943218L | |
|---|---|
 |
|
| Inc. Angle | 46.3 |
| Emission Angle | -0.38 |
| Time | 10.93 |
| Resolution | 0.62 |

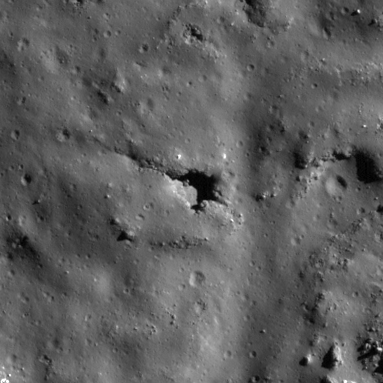

| M129363095L | |
|---|---|
 |
|
| Inc. Angle | 65.79 |
| Emission Angle | -1.41 |
| Time | 8.34 |
| Resolution | 0.5 |

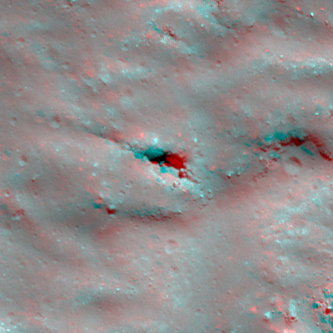

| Tycho 6 Stereo |
|---|
 |
