Pits Atlas: Tycho 9
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 9 |
| Lat. | -42.6506 |
| Long. | 349.5415 |
| Desc. | Long pit, sort of shaped like a butterfly stretched horizontally. W "wing" is a vertical-walled flat-floored pit, E "wing" is much the same, except that the E wall is a smooth slope to the floor, reaching the floor around the centerpoint of the pit. There is a ~3m crater (and possibly two more ~2m craters) on the slope, and several 1-2m boulders on the floor. There are several nearby fractures (closest is ~40m SW), and a semi-circular crumbling cliff starts ~50m E. Is in line with some nearby fractures and the cliff, but is not physically connected to either. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 29 |
| Funnel Max. Diam. | 77 |
| Inner Min. Diam. | 16 |
| Inner Max. Diam. | 58 |
| Azimuth | 100 |
| Depth | 11.0 |
| Depth 1 | 9.1 |
| Depth 2 | 10.6 |
| Depth 3 | 13.3 |
| Best Stereo Left | |
| Best Stereo Right | |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M1221397994R |
| Data Warning | |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | N? |
| Nearby Fractures? | Y |
| Nearby Depressions? | N |
| In Dome | N |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | N |
| Colinear Fractures | N |

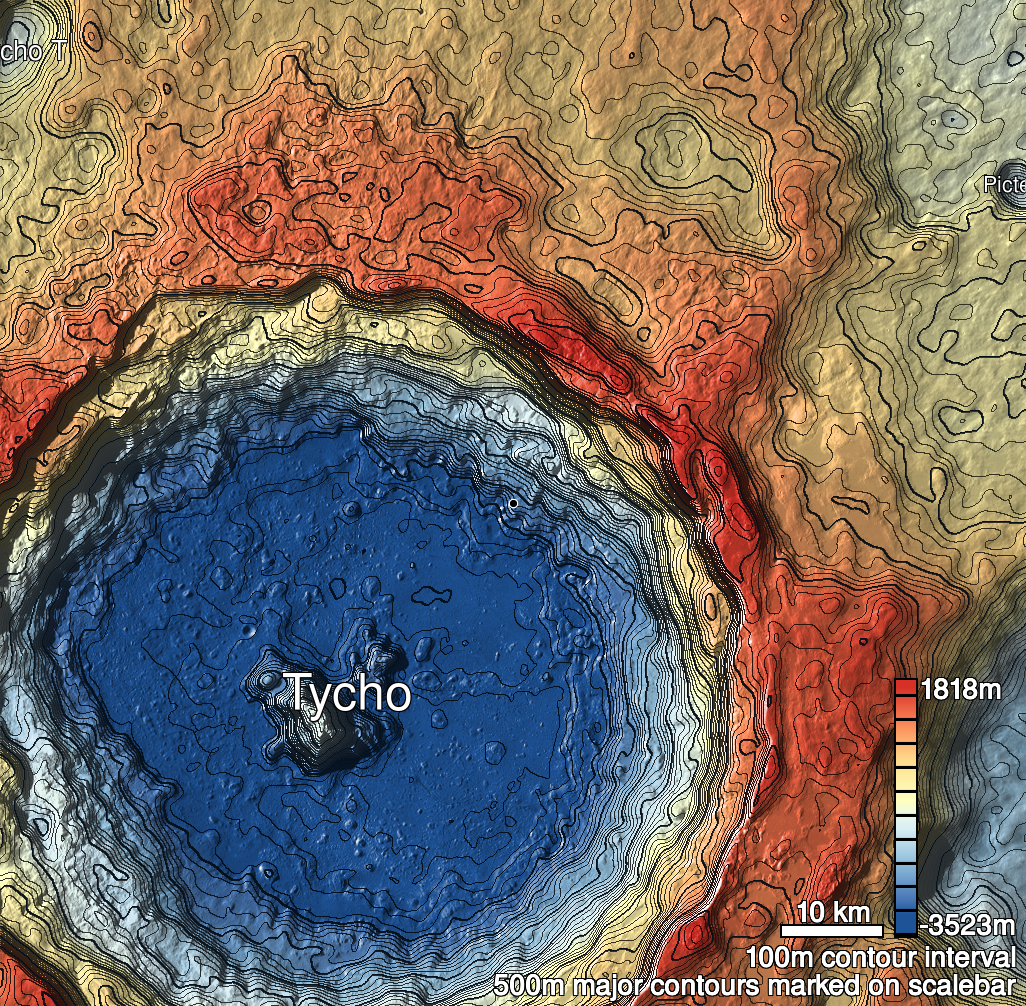

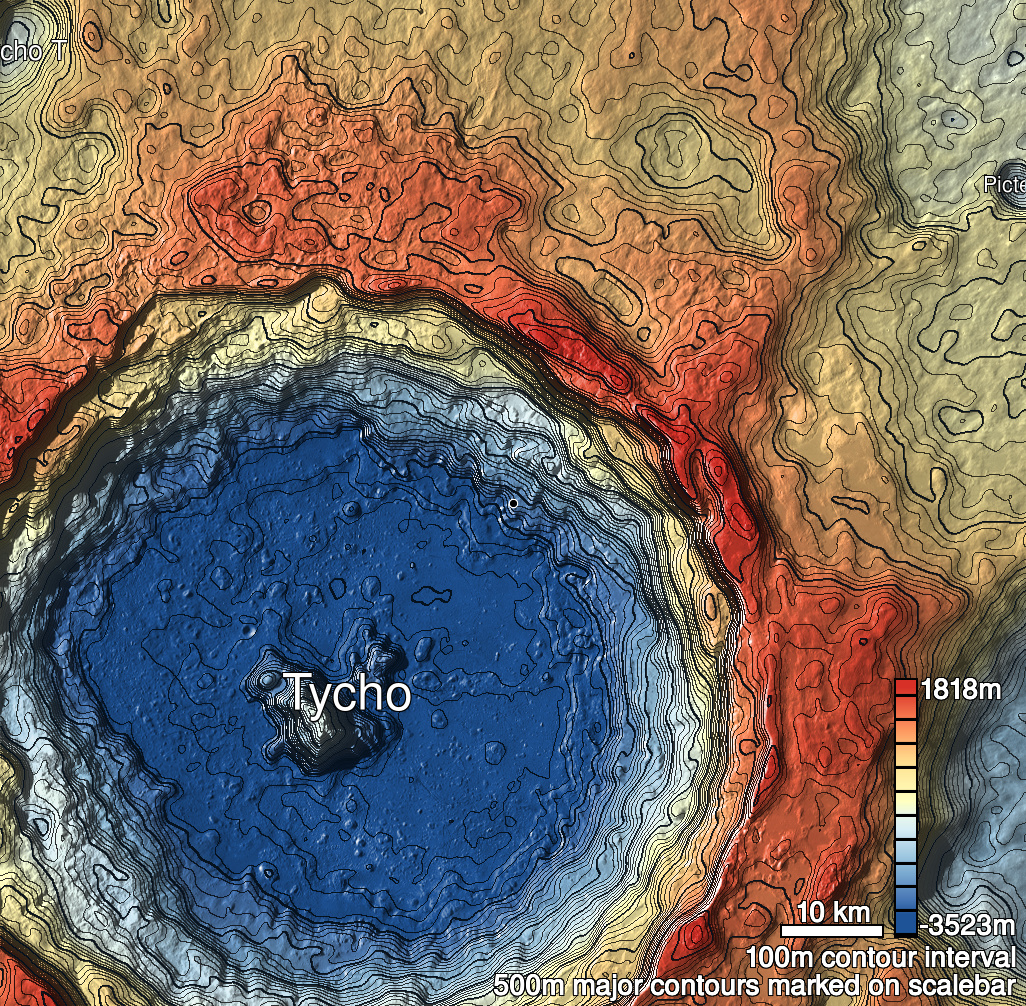

| Tycho 9 Shaded Relief | |
|---|---|
 |
| M152945986R | |
|---|---|
 |
|
| Line | 52169 |
| Sample | 3170 |
| Inc. Angle | -52.82 |
| Emission Angle | -1.54 |
| Time | 14.16 |
| Resolution | 0.47 |
| M185947368L | |
|---|---|
 |
|
| Inc. Angle | -44.83 |
| Emission Angle | 0.84 |
| Time | 12.57 |
| Resolution | 0.66 |
| M157661677L | |
|---|---|
 |
|
| Inc. Angle | 48.4 |
| Emission Angle | -1.39 |
| Time | 10.5 |
| Resolution | 0.46 |
