Pits Atlas: Tycho 13
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 13 |
| Lat. | -43.1399 |
| Long. | 348.2689 |
| Desc. | Rectangular pit, south wall is ramp to surface. There's a large linear-ish collapse/fracture running S from a point ~85m SE, with this pit sort of in line with it. There are a couple other small linear collapse features in the general vicinity (~30x5m). The pit appears to be in a slight PRF, and uncalibrated stereo indicates that the floor may be level with the exterior, with the rim sloping up from S to N. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 39 |
| Funnel Max. Diam. | 45 |
| Inner Min. Diam. | 27 |
| Inner Max. Diam. | 33 |
| Azimuth | 180 |
| Depth | 12.0 |
| Depth 1 | 14.8 |
| Depth 2 | 11.3 |
| Depth 3 | 8.5 |
| Best Stereo Left | M1167263804L |
| Best Stereo Right | M1167263804L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | Depth 3 is from different point on N rim (far east end) from other depths(center). Measure from middle of E rim gives depth of ~6m. |
| Entrance Ramp | Y |
| Overhang | ? |
| Nearby Pits? | Y? |
| Nearby Fractures? | N? |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | Y? |
| Colinear Depressions | Y |
| Colinear Fractures | N? |

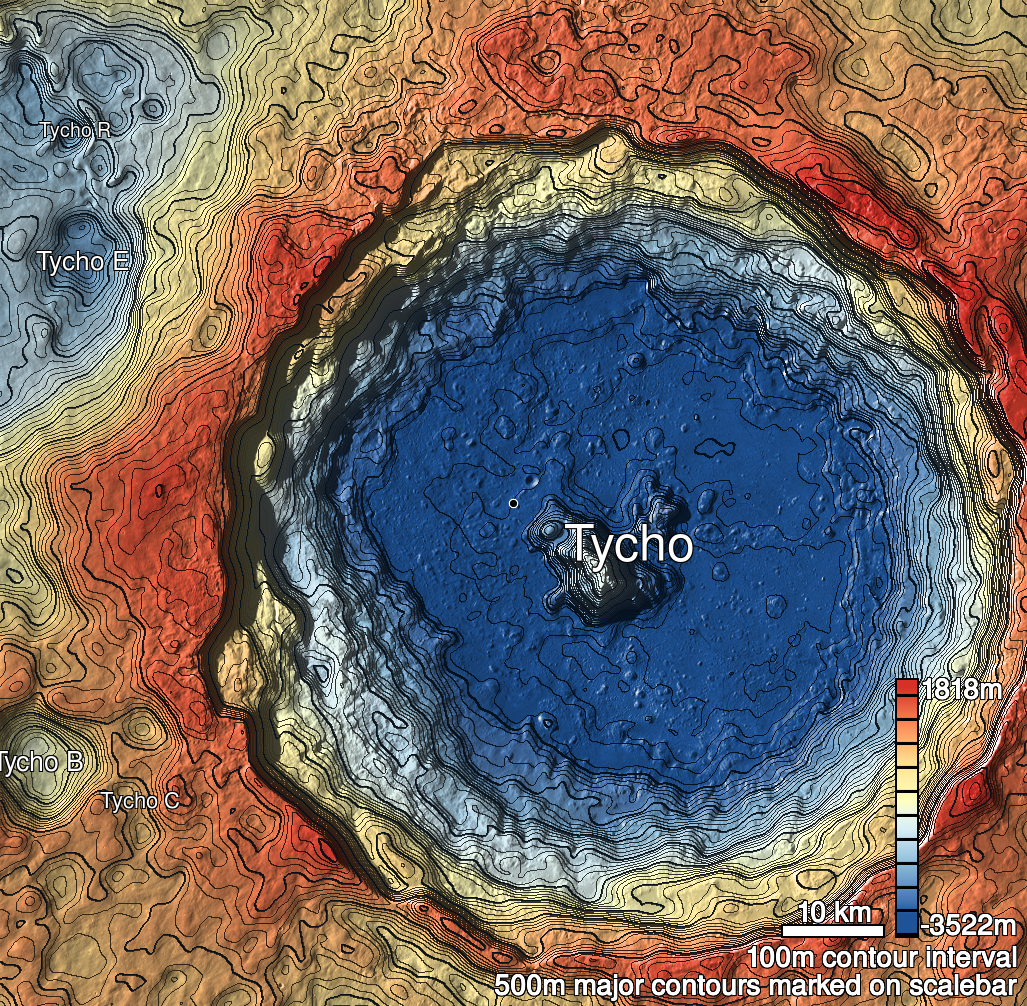

| Tycho 13 Shaded Relief | |
|---|---|
 |
| M170641394R | |
|---|---|
 |
|
| Line | 31938 |
| Sample | 2414 |
| Inc. Angle | -42.74 |
| Emission Angle | -1.19 |
| Time | 12.75 |
| Resolution | 0.49 |
| M1118950329L | |
|---|---|
 |
|
| Inc. Angle | 46.54 |
| Emission Angle | -0.36 |
| Time | 10.92 |
| Resolution | 0.62 |
| M129369888R | |
|---|---|
 |
|
| Inc. Angle | 65.97 |
| Emission Angle | 0.25 |
| Time | 8.34 |
| Resolution | 0.5 |
| Tycho 13 Stereo |
|---|
 |
