Pits Atlas: Tycho 15b
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 15b |
| Lat. | -43.1456 |
| Long. | 349.6325 |
| Desc. | Roughly linear collapse, running along the trend of this pit sequence. No floor visible. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 22 |
| Funnel Max. Diam. | 37 |
| Inner Min. Diam. | 6 |
| Inner Max. Diam. | 26 |
| Azimuth | 40 |
| Depth | >9.0 |
| Depth 1 | >8.0 |
| Depth 2 | >9.0 |
| Depth 3 | >9.0 |
| Best Stereo Left | M1177818994L |
| Best Stereo Right | M1177818994L |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | |
| Data Warning | |
| Entrance Ramp | N |
| Overhang | ? |
| Nearby Pits? | Y |
| Nearby Fractures? | N |
| Nearby Depressions? | Y |
| In Dome | N |
| Beside Dome | Y |
| In Depression | N |
| Colinear Pits | Y |
| Colinear Depressions | Y |
| Colinear Fractures | N |

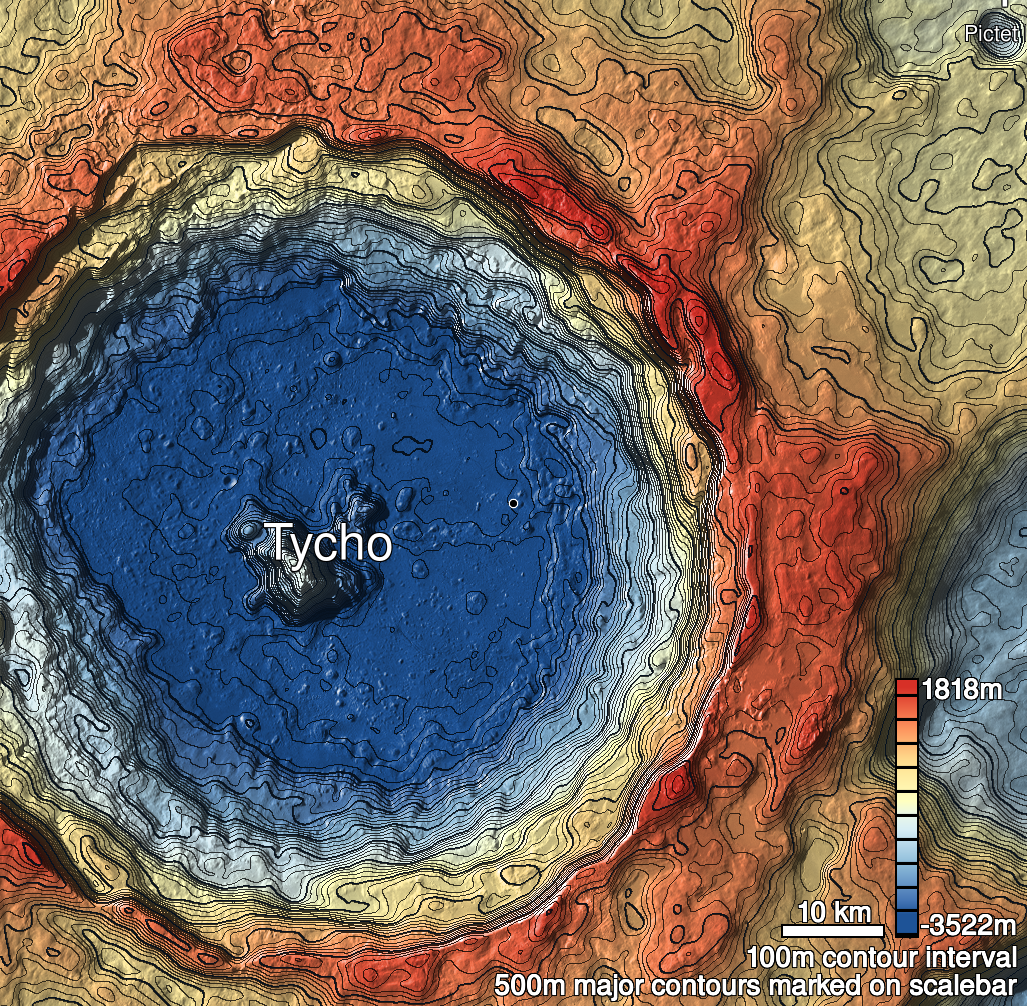

| Tycho 15b Shaded Relief | |
|---|---|
 |
| M109298521R | |
|---|---|
 |
|
| Line | 25022 |
| Sample | 4508 |
| Inc. Angle | 41.7 |
| Emission Angle | 2.32 |
| Time | 11.83 |
| Resolution | 0.52 |
| M139973084L | |
|---|---|
 |
|
| Inc. Angle | -41.85 |
| Emission Angle | 1.58 |
| Time | 12.36 |
| Resolution | 0.51 |
| M185947368R | |
|---|---|
 |
|
| Inc. Angle | -45.33 |
| Emission Angle | -1.25 |
| Time | 12.58 |
| Resolution | 0.66 |
| Tycho 15b Stereo |
|---|
 |
