Pits Atlas: Tycho 16
| Impact Melt pit: Tycho | |
|---|---|
| Name | Tycho 16 |
| Lat. | -43.102 |
| Long. | 347.7799 |
| Desc. | Irregular pit in the top of a positive feature/between some linear-ish depressions. Floor is somewhat rounded, and walls have several protrusions. North wall is a slope almost from the surface to the floor. S wall is extremely steel slope to floor. West wall appears solid (albeit tiered) in slewed image. East wall is unseen. There is a fracture system with some large openings ~300m to the west. No linear features are in line with the pit. |
| Types | |
| Terrain | Impact Melt |
| Host Feature | Tycho |
| Funnel Min. Diam. | 48 |
| Funnel Max. Diam. | 68 |
| Inner Min. Diam. | 40 |
| Inner Max. Diam. | 60 |
| Azimuth | 165 |
| Depth | 18.0 |
| Depth 1 | 17.6 |
| Depth 2 | >20.0 |
| Depth 3 | >8.0 |
| Best Stereo Left | M1182543691R |
| Best Stereo Right | M1182543691R |
| DTMs | |
| Clipping Width | 200 |
| Other IMGs | M188313427L, M188320575L |
| Data Warning | Only one non-slewed image shows floor, but shadow in that image is near lowest point. |
| Entrance Ramp | Y? |
| Overhang | N? |
| Nearby Pits? | Y |
| Nearby Fractures? | Y |
| Nearby Depressions? | Y |
| In Dome | Y |
| Beside Dome | N |
| In Depression | N |
| Colinear Pits | N |
| Colinear Depressions | Y |
| Colinear Fractures | N |

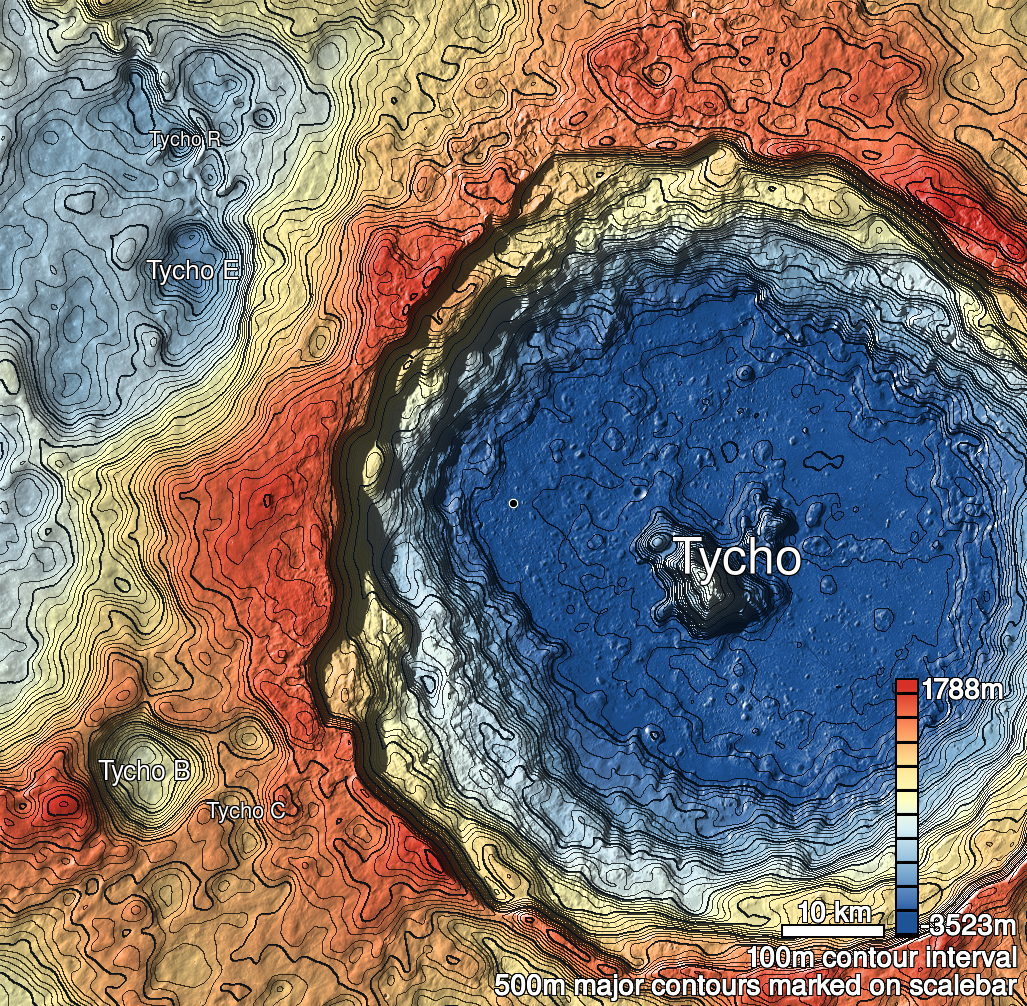

| Tycho 16 Shaded Relief | |
|---|---|
 |
| M183602781R | |
|---|---|
 |
|
| Line | 33160 |
| Sample | 4199 |
| Inc. Angle | -55.3 |
| Emission Angle | -2.12 |
| Time | 14.43 |
| Resolution | 0.67 |
| M1182536589R | |
|---|---|
 |
|
| Inc. Angle | 58.76 |
| Emission Angle | 1.49 |
| Time | 9.02 |
| Resolution | 0.68 |
| M1173121560R | |
|---|---|
 |
|
| Inc. Angle | -75.95 |
| Emission Angle | -1.91 |
| Time | 16.61 |
| Resolution | 1.05 |
| Tycho 16 Stereo |
|---|
 |
